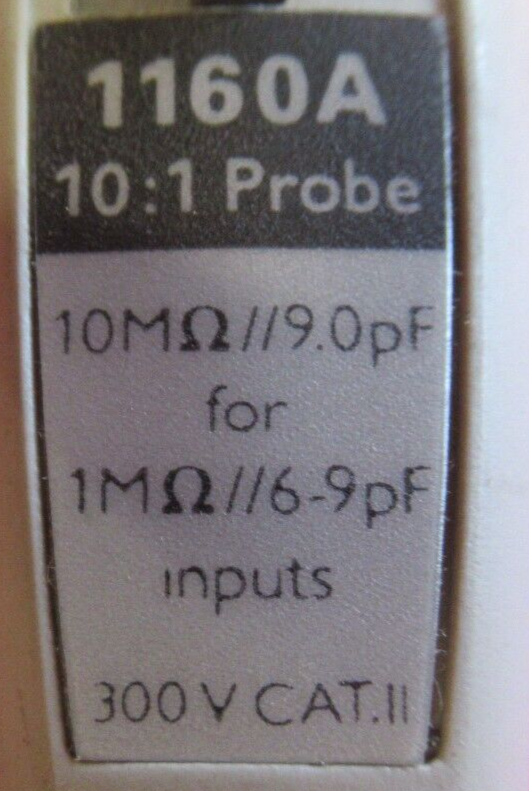

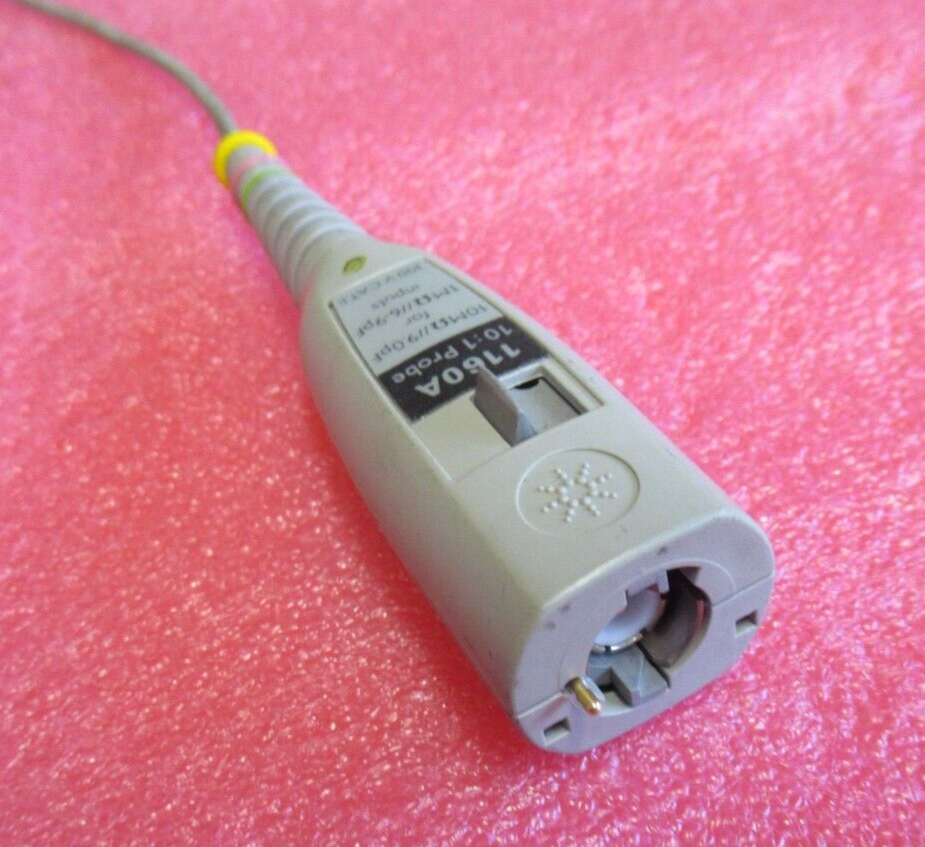

HP Agilent 1160A 500MHz 10.1 10MOhm Miniature Passive Oscilloscope Probe 1.5M

£51.30
£42.75 ex VAT

Pre-owned


Product overview

Input capacitance: 9 pF (approximate)
Comp range: 6-9 pF
Part Number: 1160A
Mains isolated: 300 V CAT II
For: 54810A, 54815A, 54820A and 54825A Infiniium Oscilloscopes
MPN: 1160A
Scope input resistance: 1 MΩ
Type of probe: high impedance, passive
Brand: HP Agilent
Risetime (calculated): 6.7 ns
Attenuation Ratio: 10:1
Length: 1.5 m
Bandwidth: 500MHz
Input resistance: 10 MOhm

HP Agilent 1160A 500MHz 10.1 10MOhm Miniature Passive Oscilloscope Probe 1.5M

In good condition and full working order

Included:
1x HP Agilent 1160A 500MHz 10.1 10MOhm Miniature Passive Oscilloscope Probe 1.5M

More Info:
The Keysight 1160A Miniature Passive probe is a small, rugged, general purpose probe for use with the 54810A, 54815A, 54820A and 54825A Infiniium Oscilloscopes. It is fully compatible with the Keysight AutoProbe interface which completely configures the Keysight Infiniium Oscilloscope for the probe.
The probe is built and tested for high reliability. The cable has a Kevlar strengthener for added pull strength. The general purpose retractable hook tip is made from a durable music wire and probe tips are replaceable.

The handle of the probe can be removed, leaving a miniature probe body with a narrow and sharp tip ideal for probing dense circuit boards.

Kevlar-reinforced cable and durable probe hook
Compatible with Infiniium scope AutoProbe interface
System bandwidth (scope + probe): 500 MHz
Input capacitance: 9 pF

Specifications:
Type of probe: high impedance, passive
System bandwidth (scope + probe): 500 MHz
Division ratio:  10:1
Input resistance: 10 MΩ
Input capacitance: 9 pF
Approximate propagation delay: 6.7 ns
Maximum input voltage: 300V CAT II
Scope input resistance: 1 MΩ
Comp range: 6-9 pF
Length: 1.5 m
