HP Agilent Keysight E5900B E3453B Emulation Probe
Pre-owned
HP Agilent Keysight E5900B E3453B Emulation Probe is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Support for: 1.2 V to 5 V operation
Part Number: E5900B
Easy upgrade to meet: changing processor needs
Operation coupled with: logic analyzers and oscilloscopes
Allows: memory/register modification
debuggers via: 10/100 Base-T LAN
Bundle Description: 1 x Power Adapter
Custom Bundle: Yes
MPN: E5900B E3453B
Standalone operation with: an industry leading debugger
Brand: HP Agilent Keysight
Enables code: download
Self powered: no target power required
connection: IEEE 1149.1 (JTAG) or BDM

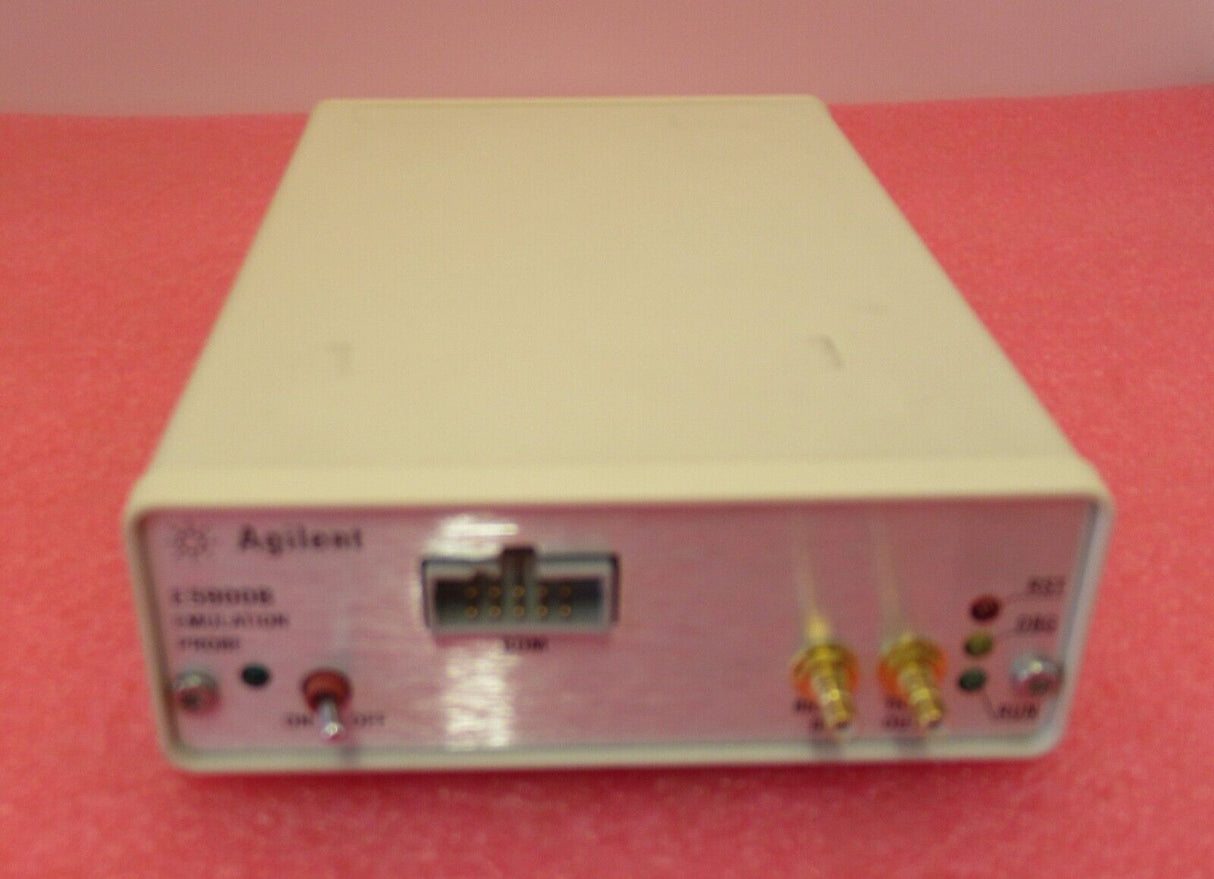

HP Agilent Keysight E5900B E3453B Emulation Probe
In good condition and full working order
AC power adapter included
Included:
1x HP Agilent Keysight E5900B E3453B Emulation Probe
1x Power Supply
More Info:

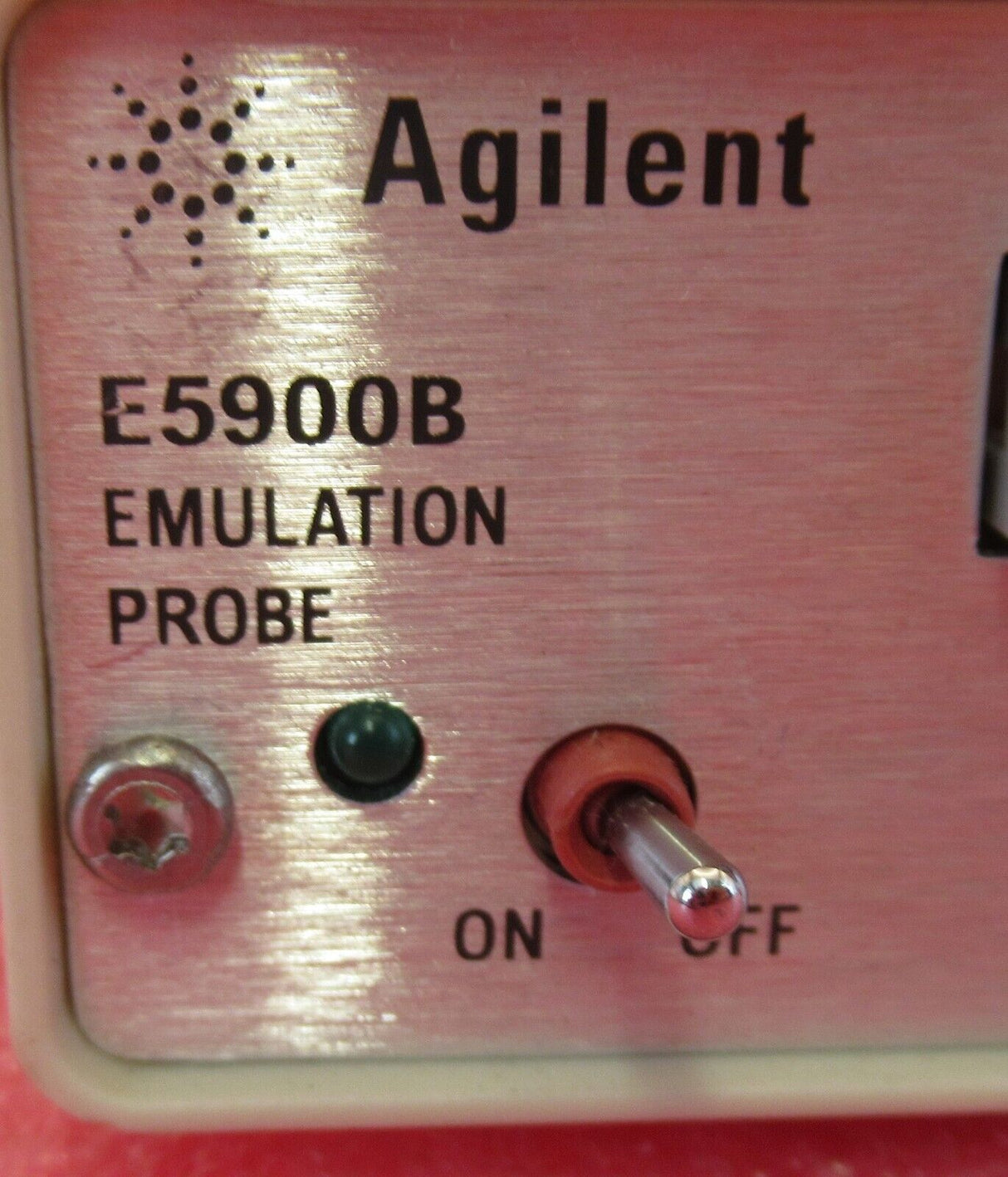

E5900B Emulation Probe
Support for ARM7/ARM9/ARM9TDMI, MIPS, Motorola/IBM PowerPC 4xx, 6xx, 8xx; MPC 82xx; MPC 74xx and M•Core processors

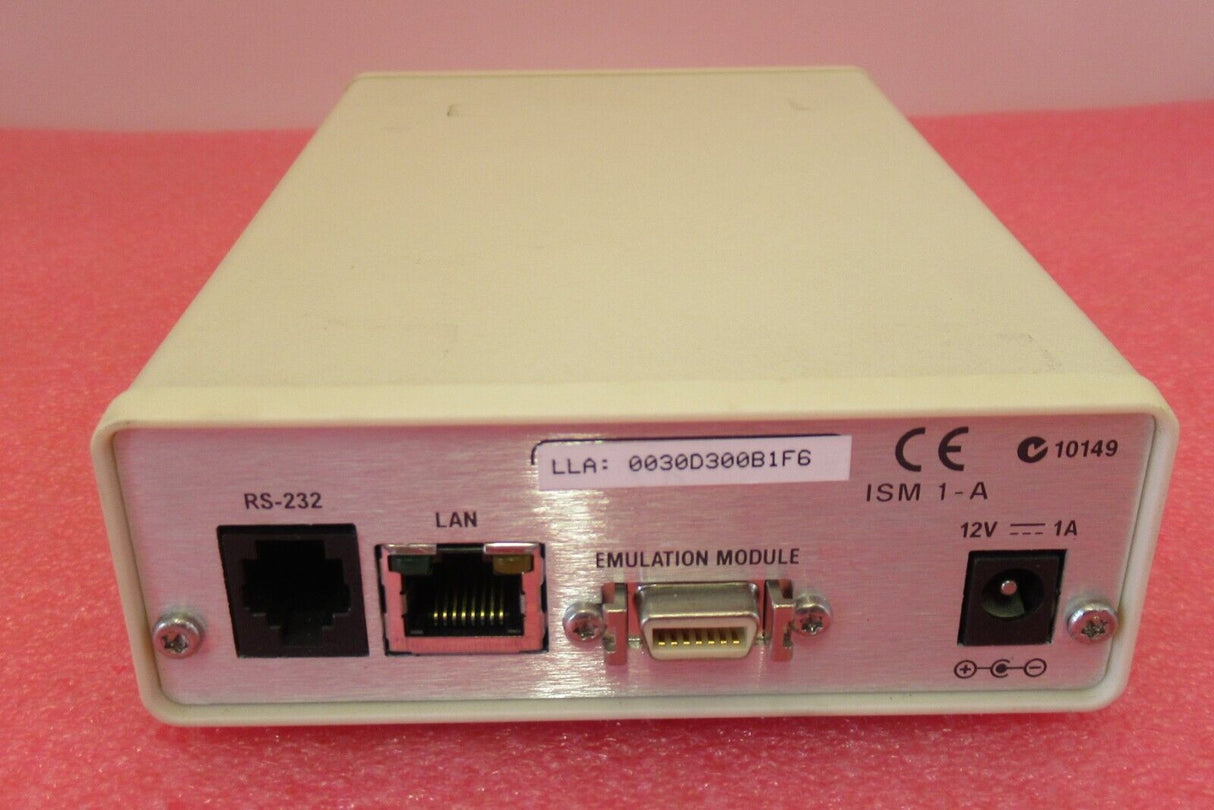

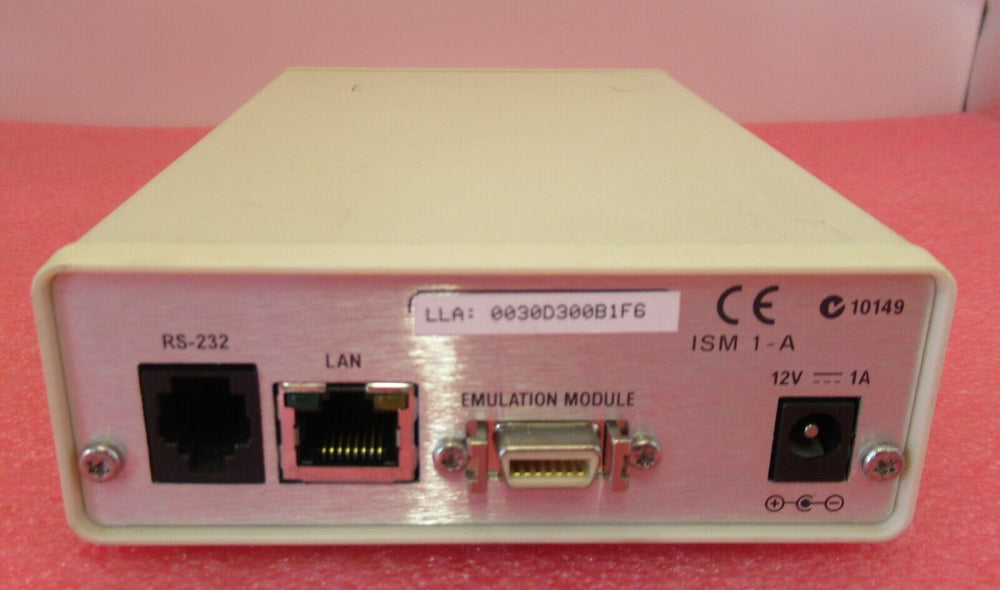

10/100T LAN connectivity to industry standard debuggers
Download speeds up to 1Mbyte/sec
Standalone operation with an industry leading debugger
Operation coupled with logic analyzers and oscilloscopes in the Agilent 16700 Series logic analysis systems for complete target system analysis
Support for 1.2 V to 5 V operation

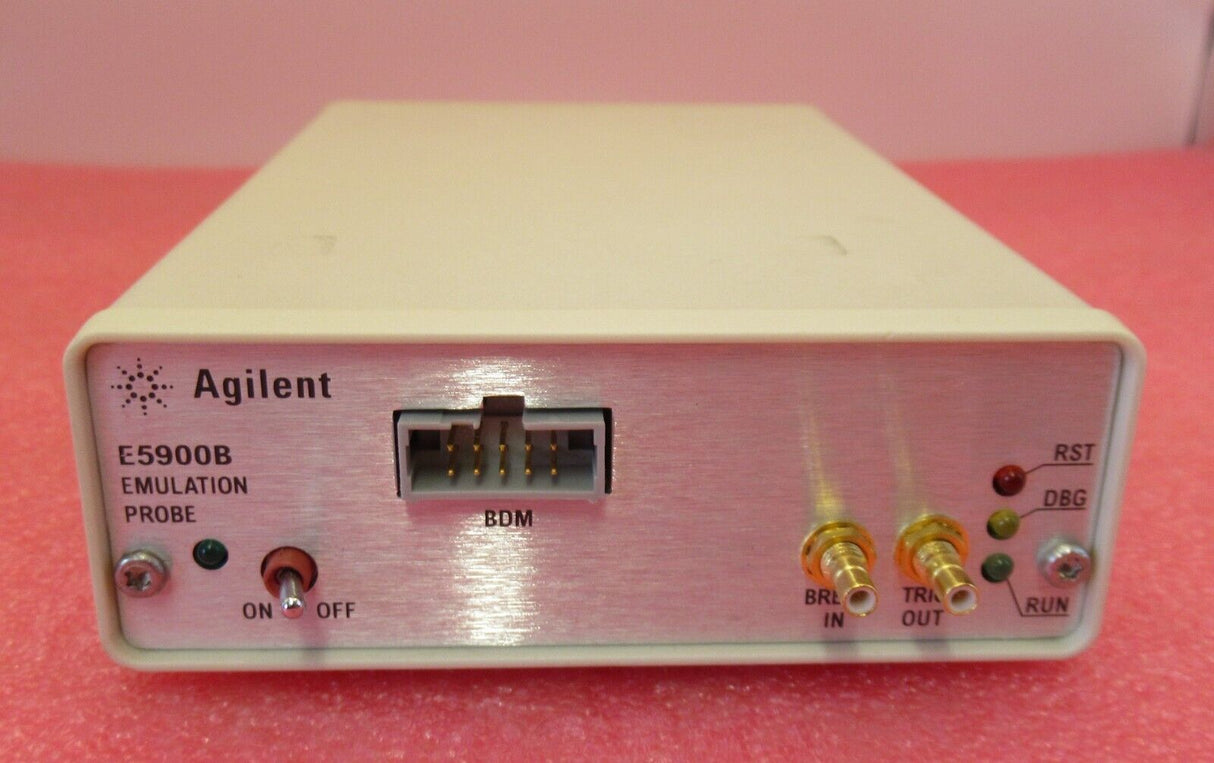

IEEE 1149.1 (JTAG) or BDM connection to the processor’s debug port
Self powered, no target power required
Easy upgrade to meet changing processor needs
The Agilent E5900B series of emulation probes provide an electrical interface to a supported microprocessor’s on-chip debug port (BDM or JTAG), enabling access for either debuggers or Agilent 16700 Series logic analyzers and oscilloscopes.
Agilent E5900B emulation probes connect to industry-leading debuggers via 10/100 Base-T LAN. While operating with the debugger, the probes provide code downloading as well as run control and access to onchip registers and memory.
The emulation probes are self powered, making them ideally suited for working in battery-powered and other systems that have not budgeted extra power for debug tools.
Debugger Interface:
Agilent engineering labs have tested the compatibility of the E5900B probes with industry-leading debuggers and development systems from Green Hills, Mentor Graphics, Metrowerks and Wind River for a wide range of processors.
A System Troubleshooting Tool:
Coupling an oscilloscope and/or logic analyzer to an emulation probe via the probe’s trigger output and break input ports lets you view system operation as related to CPU status. For example, in systems where the processor supports an external break input, an oscilloscope’s trigger output can command the processor to break if a critical control line ever enters a specified state.
Quickly Isolate System Integration Problems:
The Agilent E5900B emulation probes can be tightly coupled to the Agilent 16700 Series logic analysis systems. These systems enable quick determination of your most difficult hardware, software and system integration problems. The E5900B operate under control of the logic analyzer via the LAN or with the addition of the E5901B emulation module. With logic analysis providing timing and state analysis of system operation, the emulation probe can monitor internal microprocessor activity. This combination of logic analysis and emulation gives you a view of your total system, encompassing everything from signals to source code.
Easy Migration Protects Your Investment:
The E5900B emulation probes can continue to be useful development tools when a different processor is selected for new projects. Agilent migration kits provide an easy and economical method to convert existing emulation probes to keep up with your changing processor needs.
