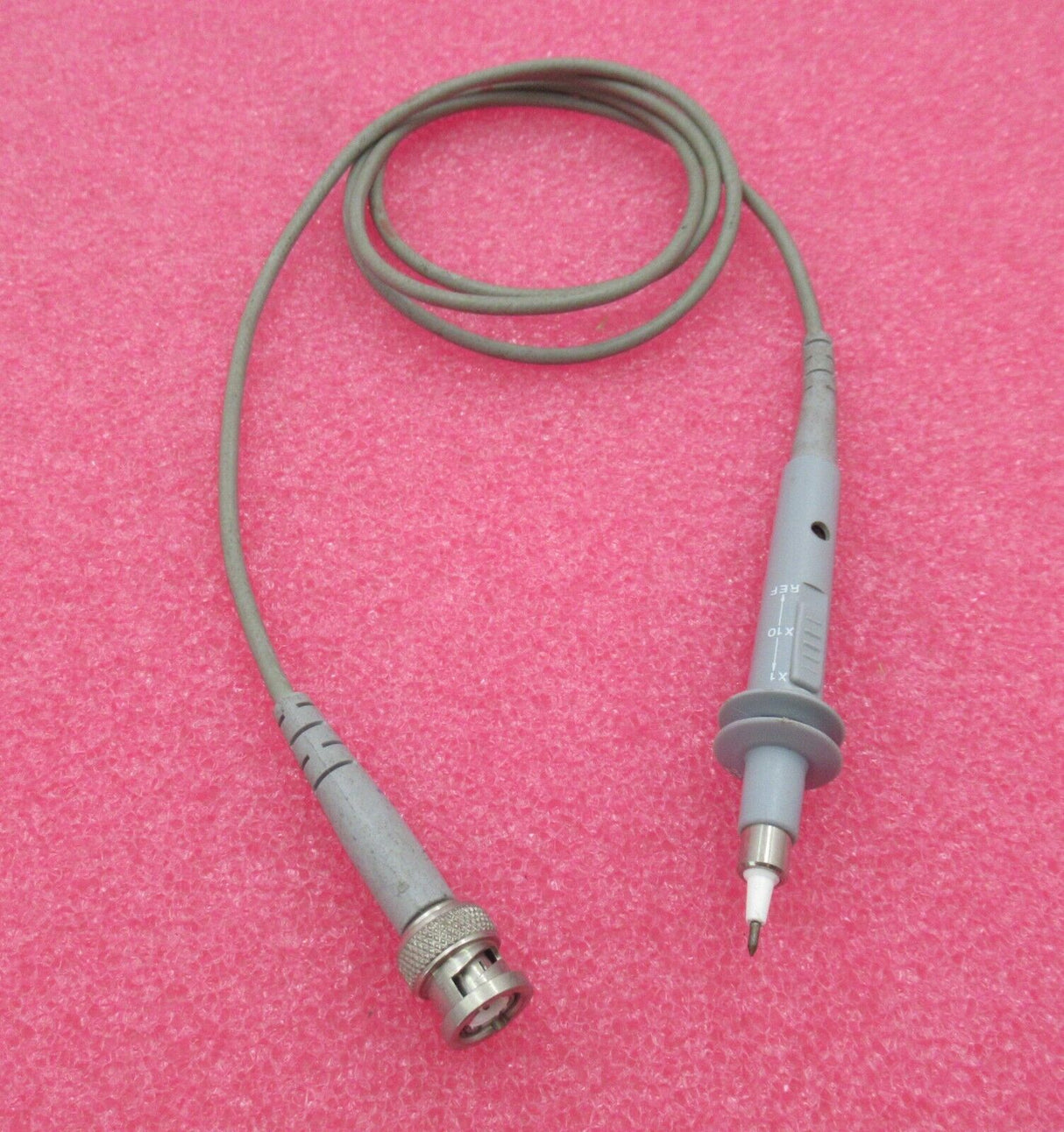

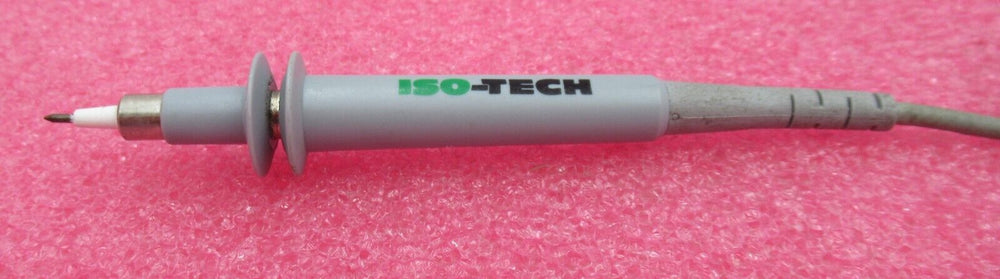

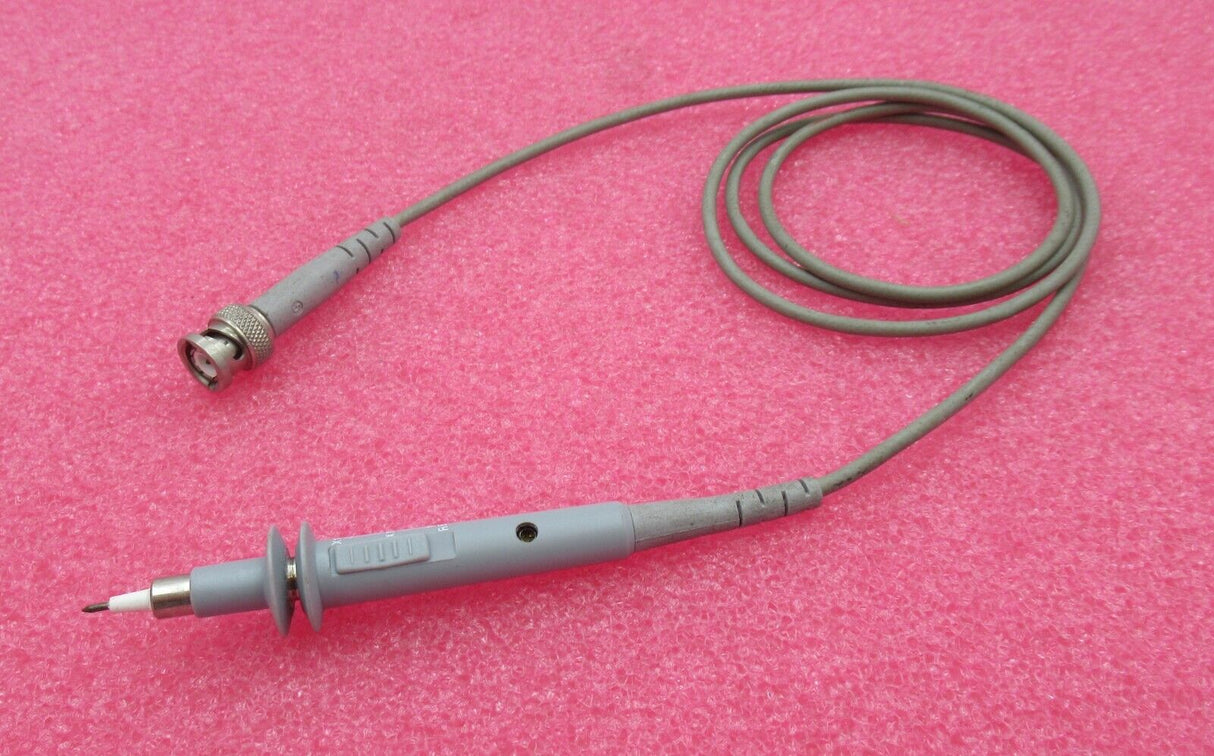

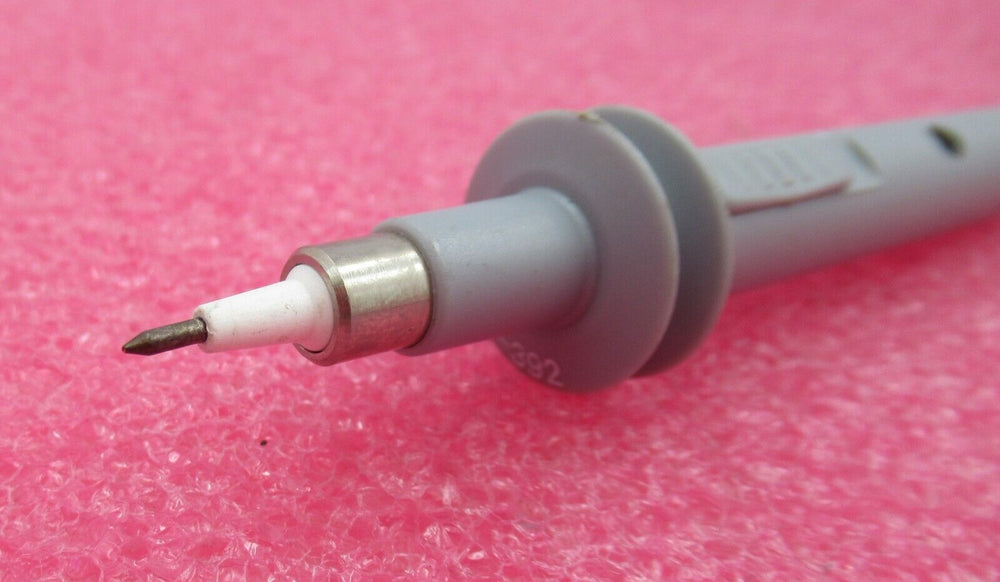

ISO-Tech N2843A Series F 10:1 500MHz 1.2M Passive Oscilloscopes Probe

£91.20
£76.00 ex VAT

Pre-owned


Product overview

Brand: ISO-Tech
Compatible with: Keysight InfiniiVision and Infiniium Series oscilloscopes
Series: F
Type: Passive Probe
Rise time: 700 ps
Part Number: N2843A
Attenuation ratio: 10:1
Bandwidth: DC to 500 MHz
Cable length: 1.2M
Input resistance: 10 MΩ
MPN: N2843A
Maximum input: 300 V RMS

ISO-Tech N2843A Series F 10:1 500MHz 1.2M Passive Oscilloscopes Probe
Part Number: N2843A

In Good Condition And In Full Working Order

Included:
1x ISO-Tech N2843A Series F 10:1 500MHz 1.2M Passive Oscilloscopes Probe

More Info:

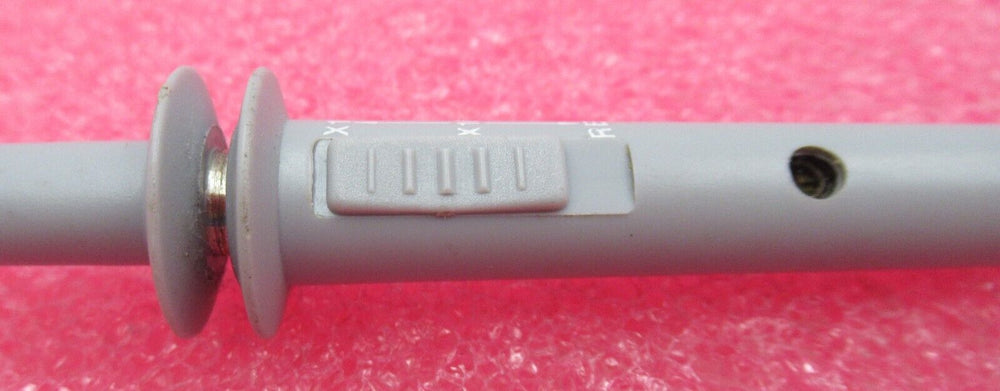

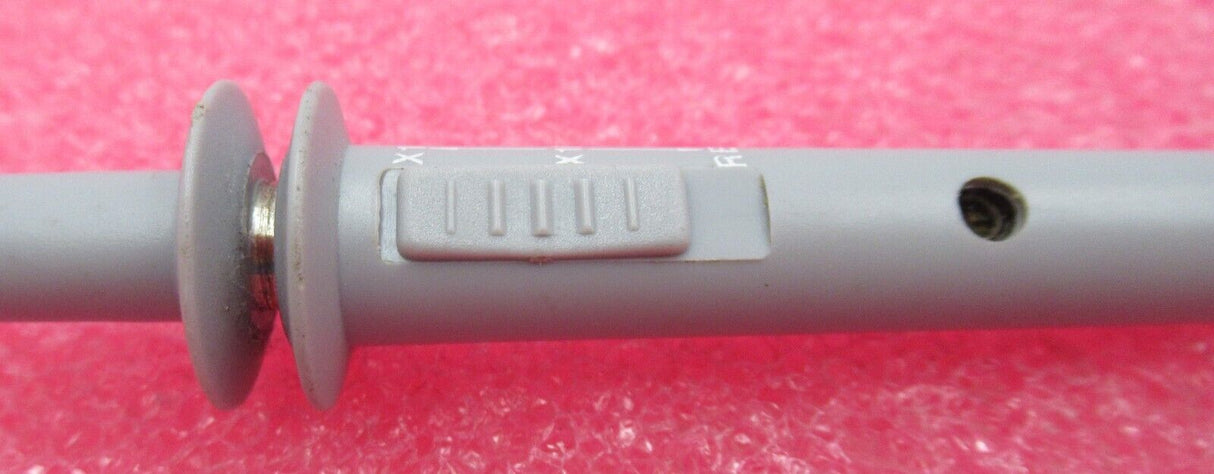

Low-cost passive probe provides a 10:1 attenuation and features a high input resistance of 10 MΩ. The probe can be adjusted for low-frequency compensation and high-frequency compensation.

For the best measurements you should compensate your probe to match its characteristics to the oscilloscope.

The N2843A is a replacement of the N2890A.

Bandwidth DC to 500 MHz
Cable length 1.2 m
Rise time 700 ps
Attenuation ratio 10:1
Input resistance 10 MΩ (when terminated into 1 MΩ)
Maximum input 300 V RMS (or >400Vpk) CAT I and CAT II
Compatible with Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input
Probe ID
Series F
