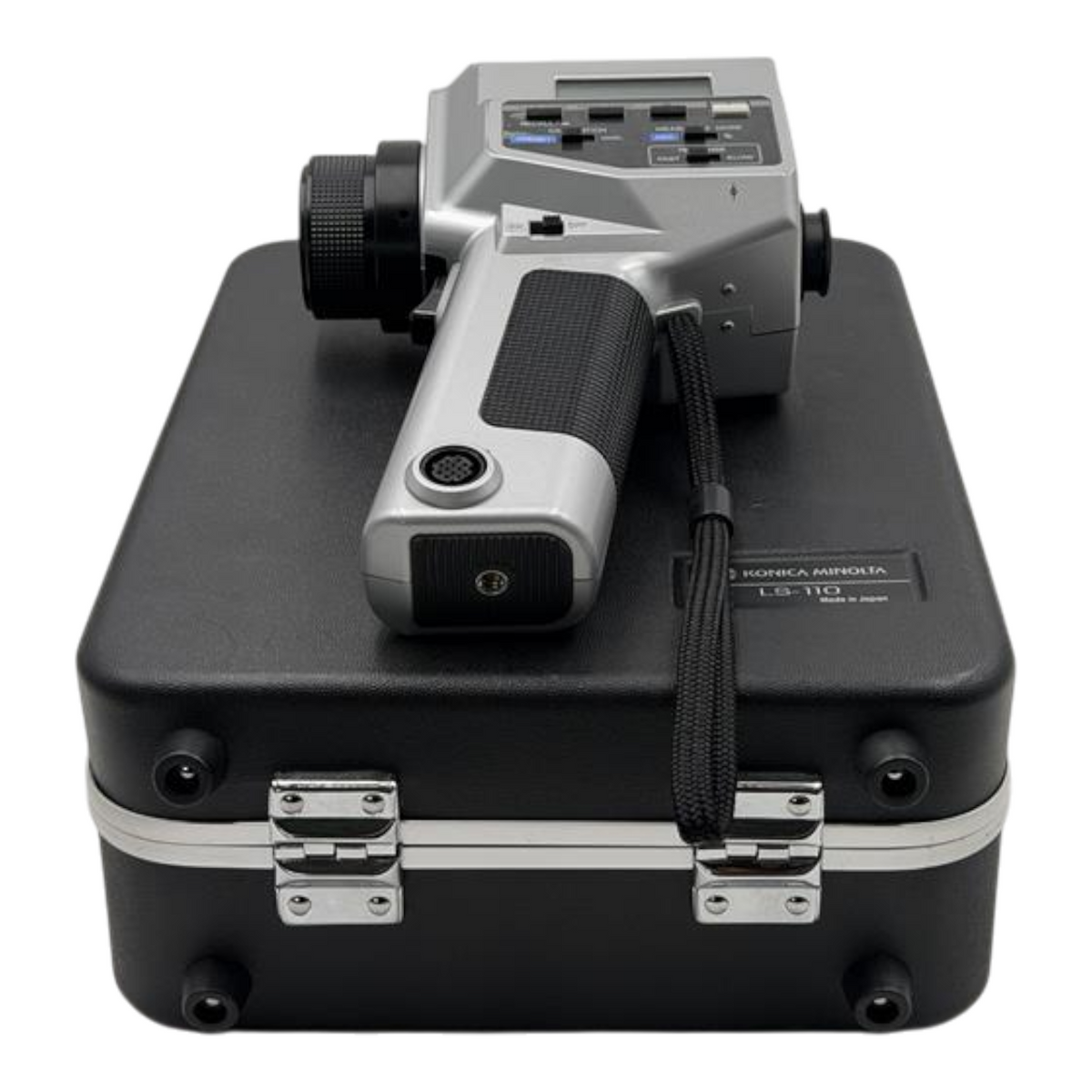

Konica Minolta LS 110 Spot Luminance Meter SLR 0.01 999900 cd/m2 + Carry Case
Pre-owned
Konica Minolta LS 110 Spot Luminance Meter SLR 0.01 999900 cd/m2 + Carry Case is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Konica Minolta
Accuracy: 0.01 to 9.99cd/m2
MPN: LS-110
Country of Origin: Japan
Measurement Range: 0.01 to 999.900cd/m2

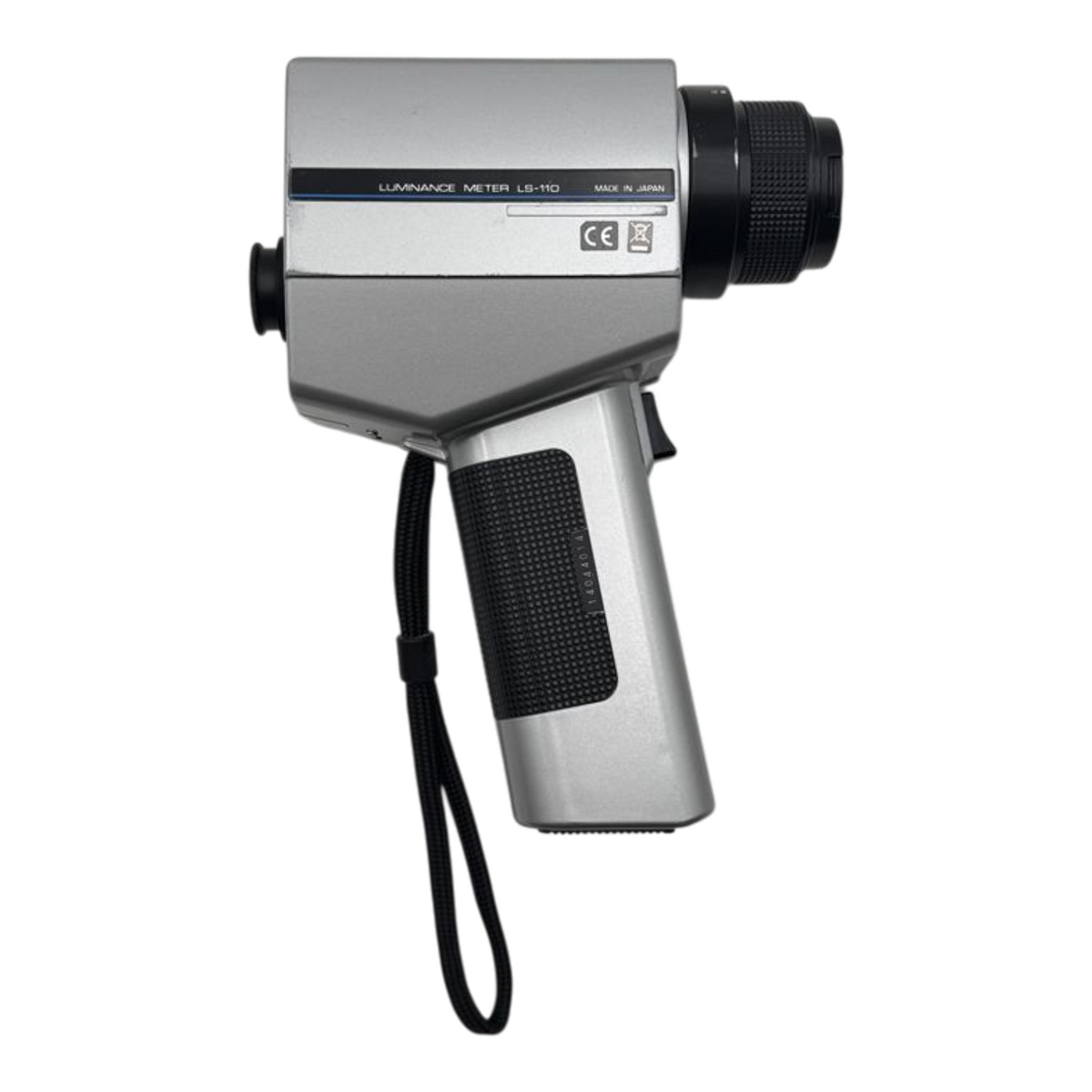

Konica Minolta LS-110 Spot Luminance Meter SLR 0.01-999900 cd/m2 + Carry Case
Model: LS-110
In good condition and In full working order
Tested

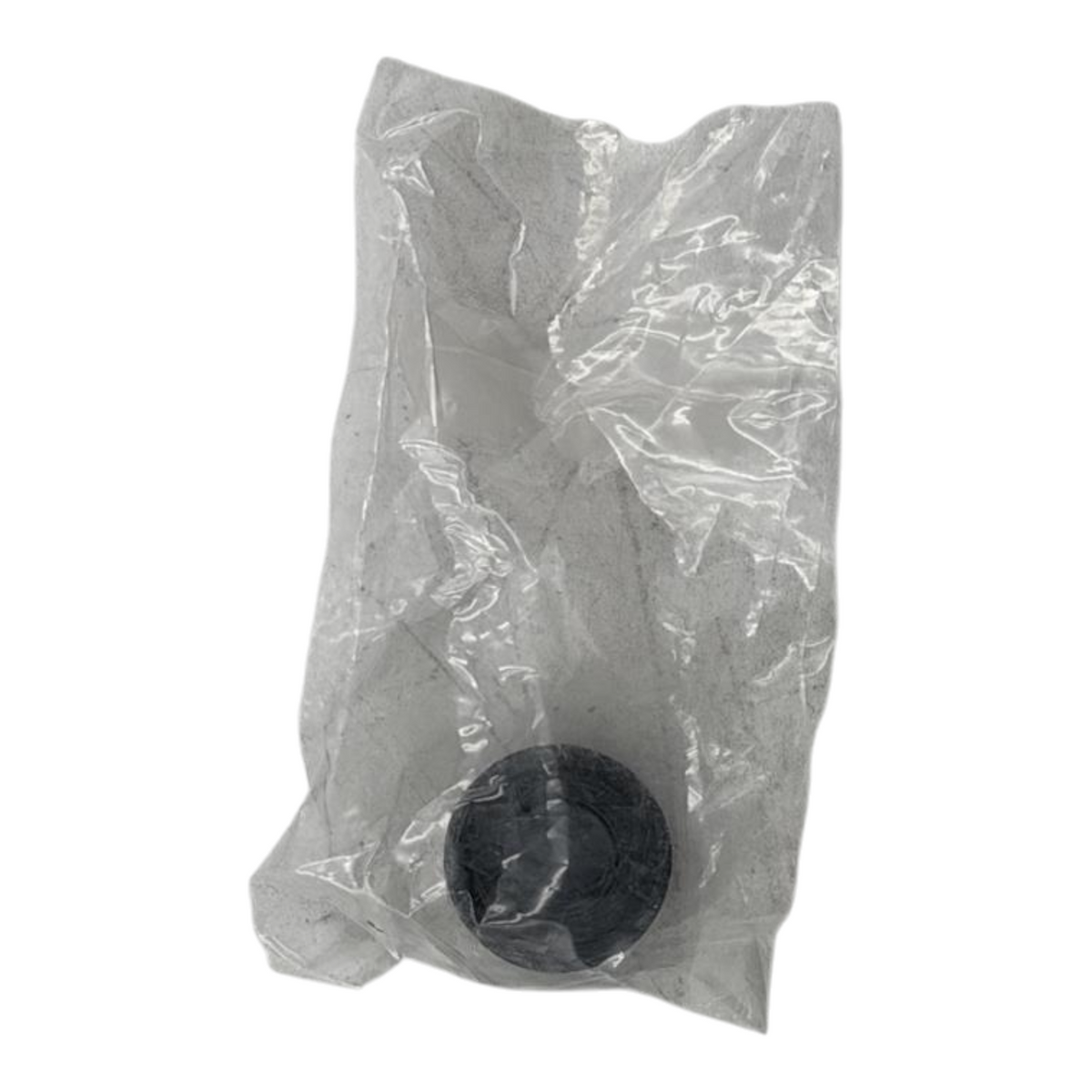

Included:

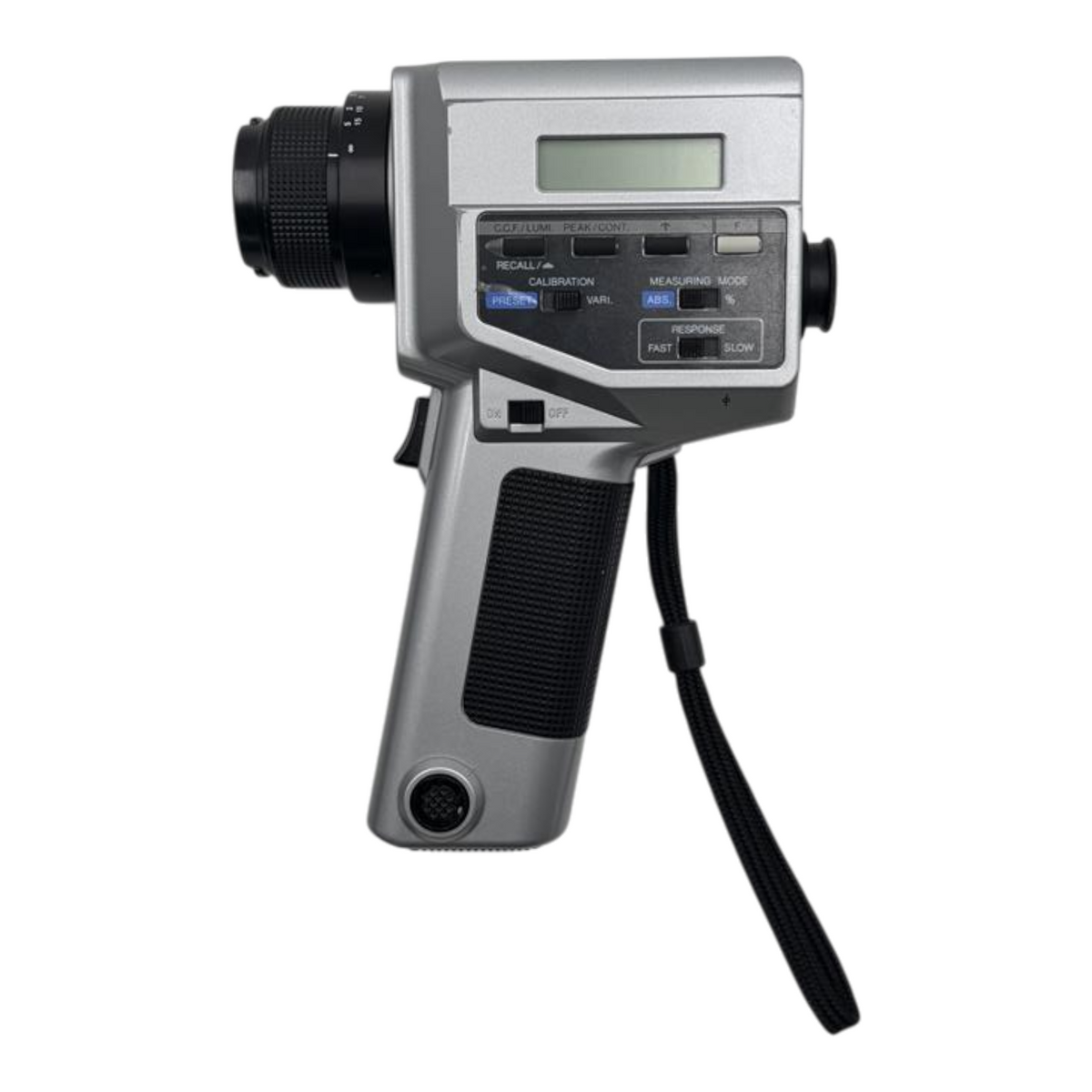

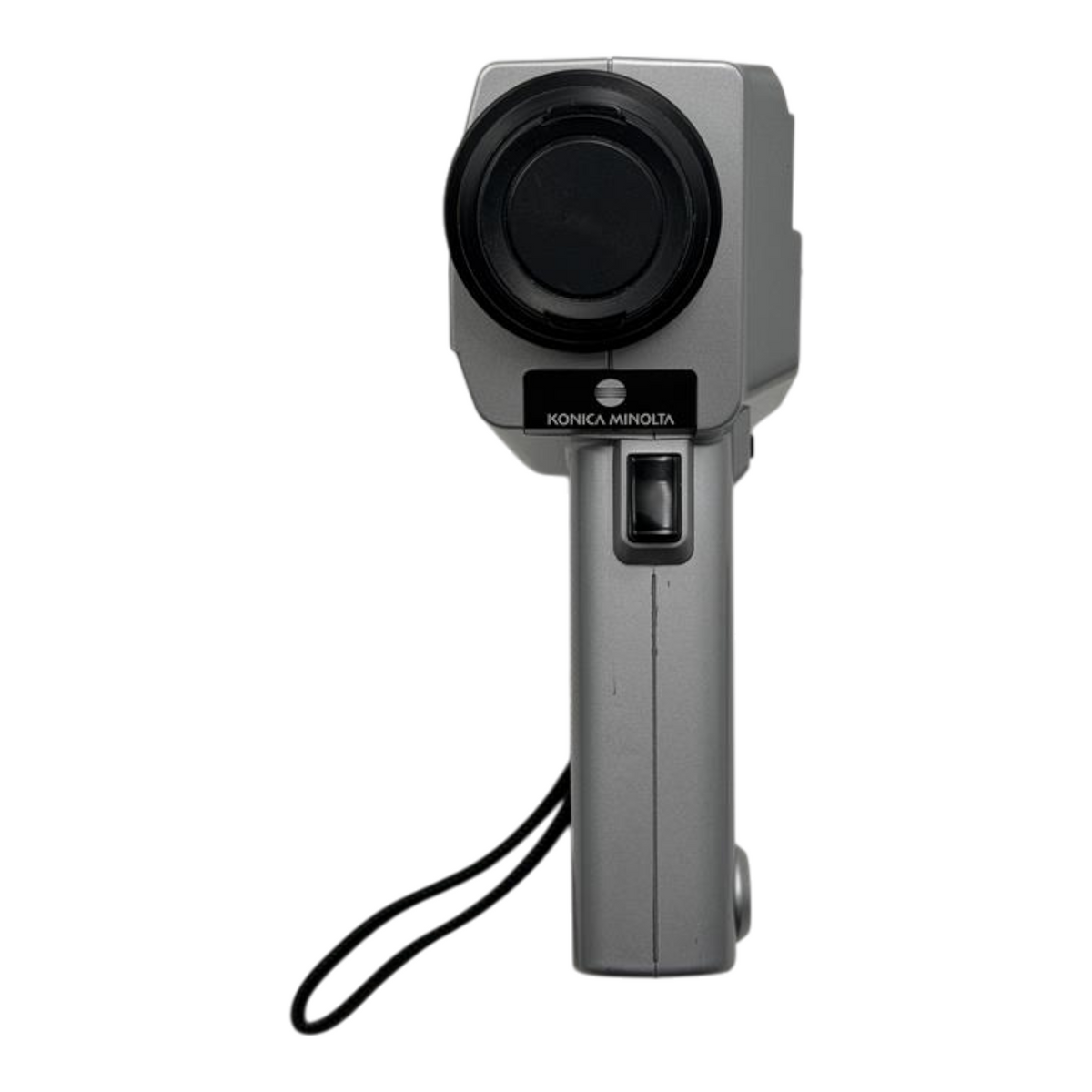

1 x Konica Minolta LS-110 Spot Luminance Meter SLR 0.01-999900 cd/m2
1 x Key

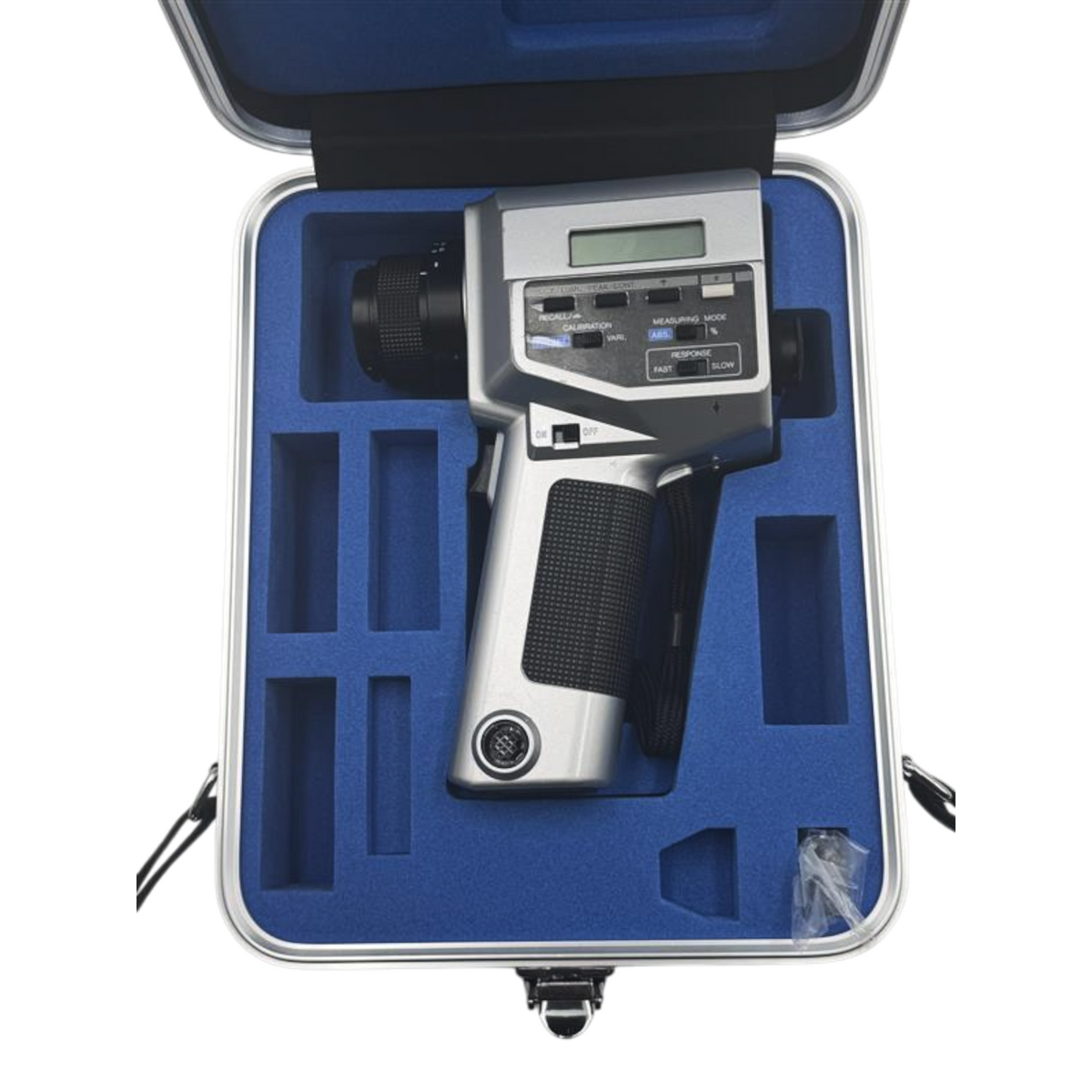

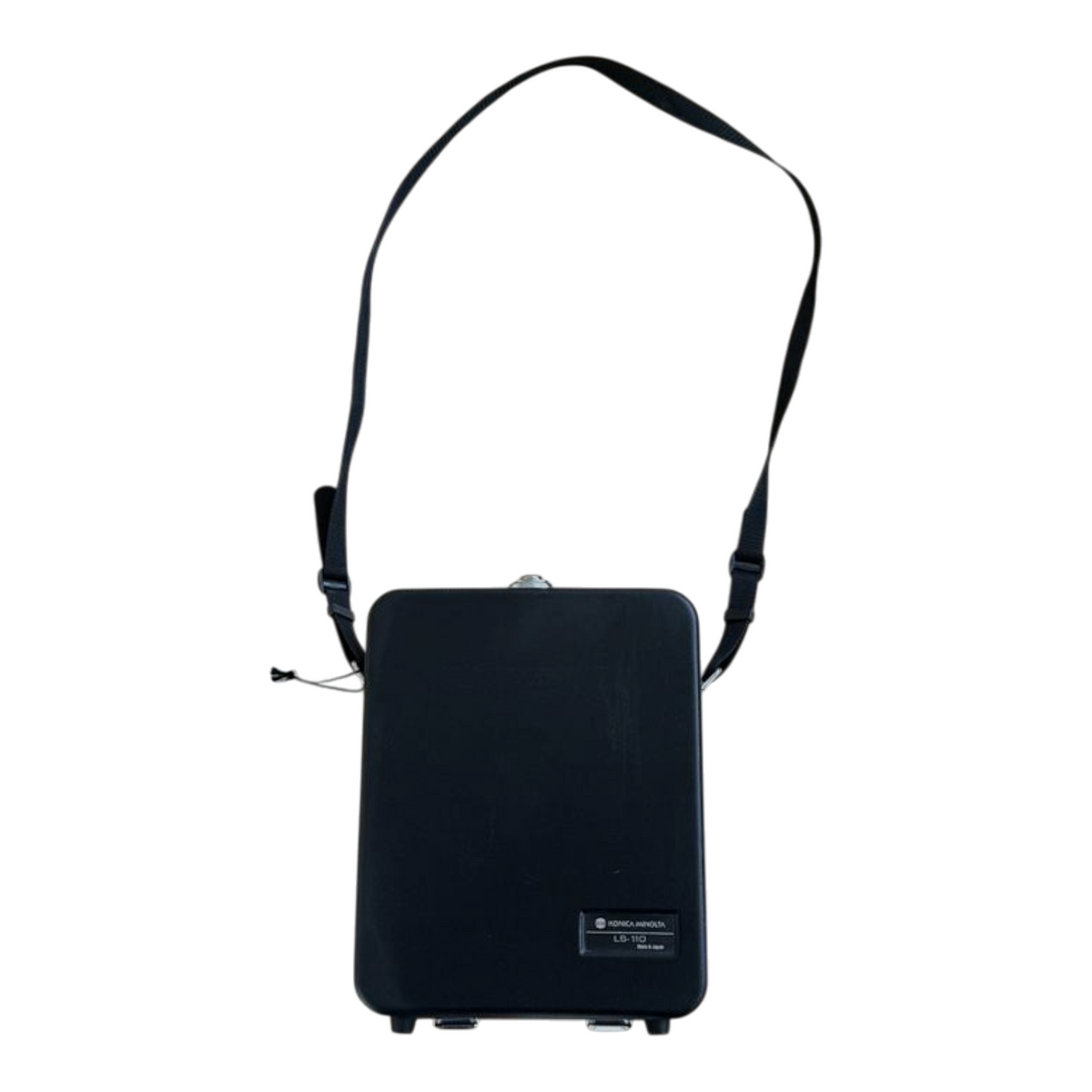

1 x Carry Case
Specification:
Model: Luminance Meter LS-110
Type: SLR spot luminance meter for measuring light-source and surface brightness
Acceptance angle: 1/3°

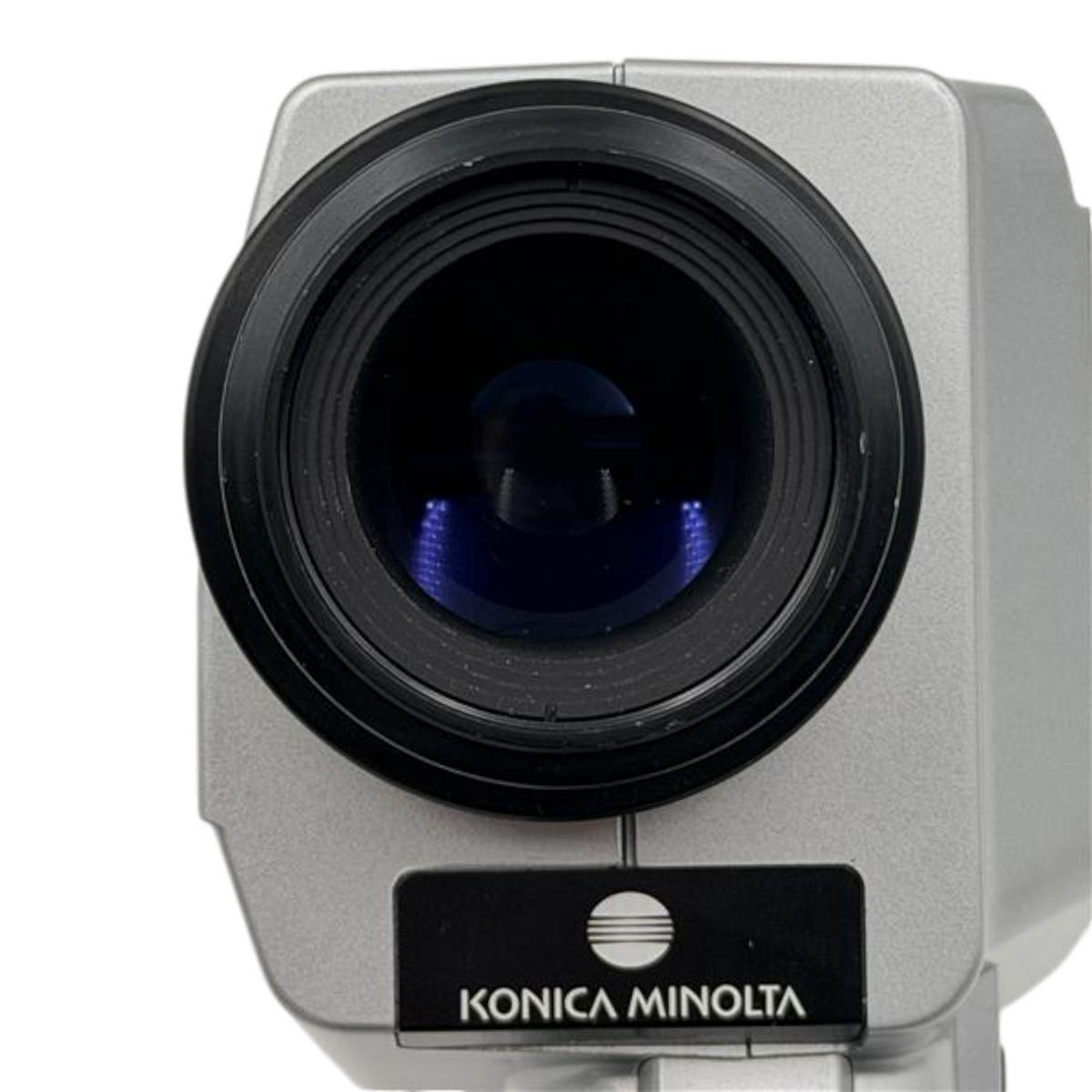

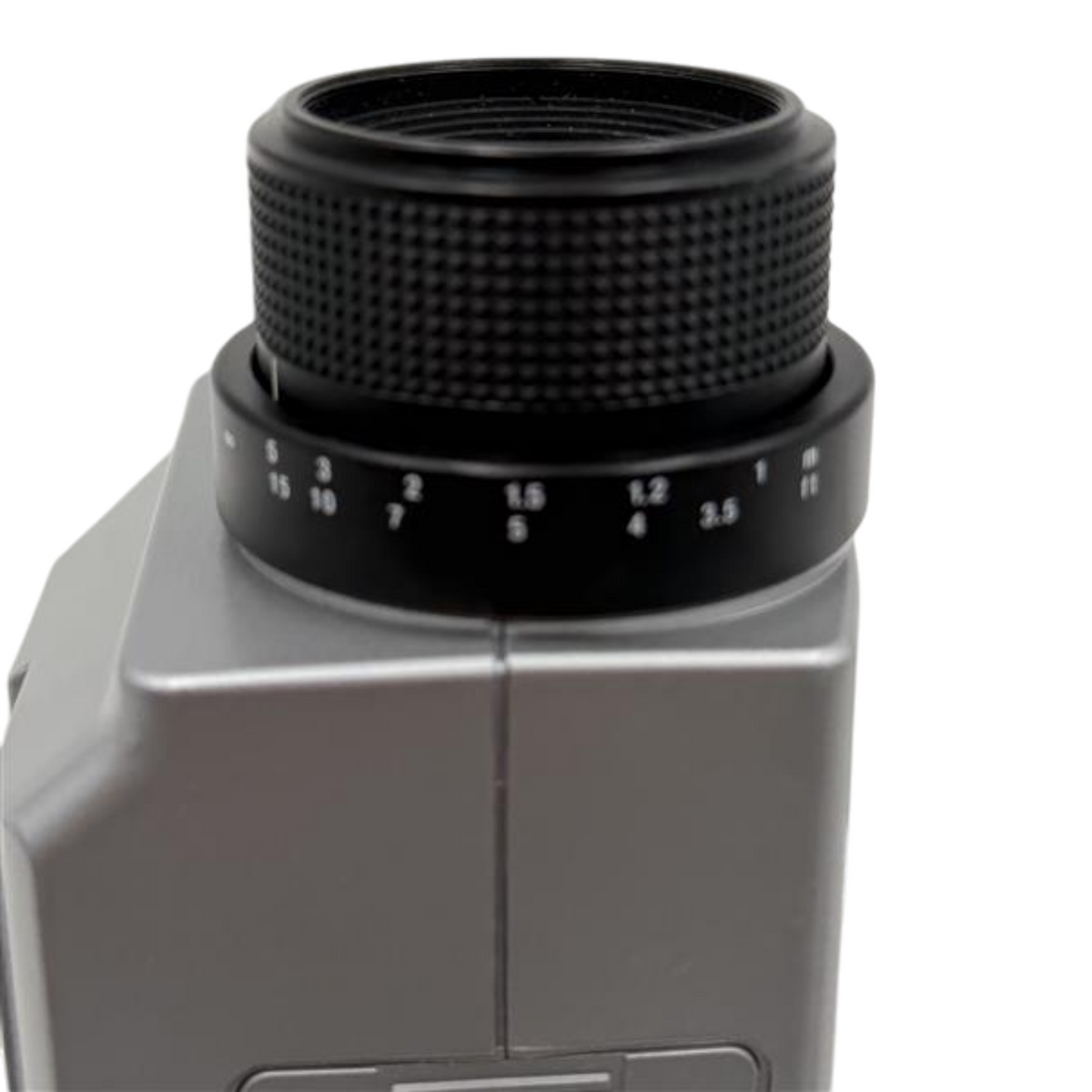

Optical system: 85mm f/2.8 lens; SLR viewing system; flare factor less than 1.5%
Angle of view: 9°
Focusing distance: 1014mm (40 in.) to infinity
Minimum measuring area: Ф4.8mm
Receptor: Silicon photocell
Relative Spectral Response*: Within 8% (f1) of the CIE spectral luminous efficiency V (A)
Response time: FAST: Sampling time: 0.1s, time to display: 0.8 to 1.0s; SLOW: Sampling time: 0.4s, time to display: 1.4 to 1.6s
Luminance units: cd/m2 or fL (switchable)
Measuring range: FAST: 0.01 to 999.900cd/m2 (0.01 to 291,800fL), SLOW: 0.01 to 499,900cd/m2 (0.01 to 145.900fL)
Accuracy: 0.01 to 9.99cd/m 2 (or fL): +2% ‡2 digits of displayed value 10.00cd/m2 (or fL) or greater: +2% ‡1 digit of displayed value (Illuminant A measured at ambient temperature of 20 to 30°C/68 to 86°F)
Repeatability: 0.01 to 9.99cd/m2 (or fL): t0.2% +2 digits of displayed value, 10.00cd/m2 (or fL) or greater: +0.2% ‡1 digit of displayed value (Measurement subject: Illuminant A)
Temperature/humidity drift: Within +3% ‡1 digit (of value displayed at 20°C/68°F) within operating temperature /humidity range
Calibration mode: Minolta standard/user-selected standard (switchable)
Color correction factor: Set by numerical input; range: 0.001 to 9.999:
Reference luminance: 1; set by measurement or numerical input:
Measurement modes: Luminance; luminance ratio; peak luminance or luminance ratio

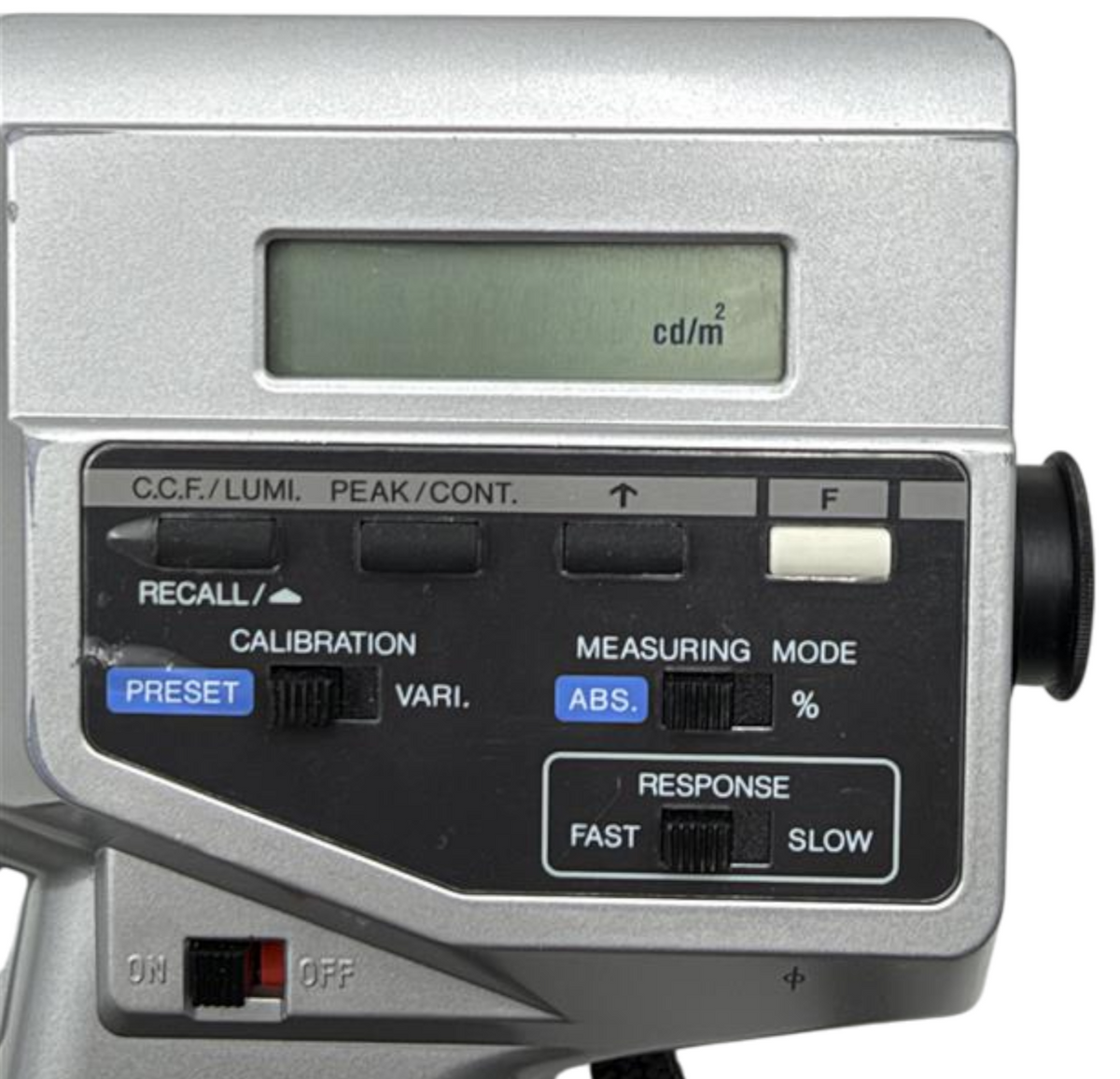

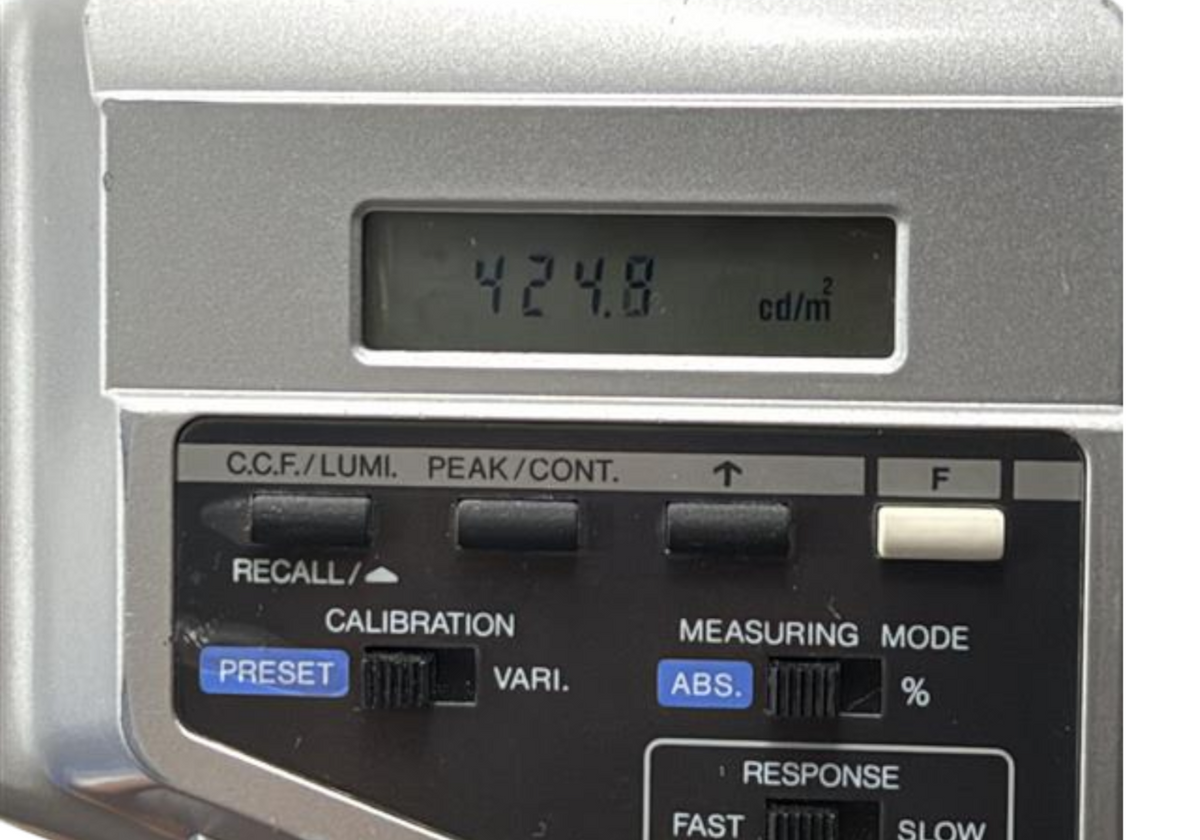

Display: External: 4-digit LCD with additional indications Viewfinder: 4-digit LCD with LED backlight
Data communication: RS-232C; baud rate: 4800bps
External control: Measurement process can be started by external deice connected to data output terminal
Power source: While measuring button is pressed and viewfinder display is lit: 16mA average, While power is on and viewfinder display is not lit: 6mA average
Operating temperature/humidity range: 0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
