Leica Geosystems ScanStation C10 3D All-in-One Laser Scanner HDS Survey

Brand: Leica Geosystems
operating temperature:: 0 °C to +40 °C
Laser Class:: 3R (IEC 60825-1)
measurement rate:: up to 50,000 pointse/s
integrated color camera:: Yes
MPN: ScanStation C10
Range:: 0.1m to 300m
Field of View (vertical³/Horizontal):: 270° / 360°
Size:: 238 mm x 358 mm x 395 mm
Weight:: 13kg

Leica Geosystems ScanStation C10 3D All-in-One Laser Scanner HDS Survey

Had very light use, in very good condition and in full working order

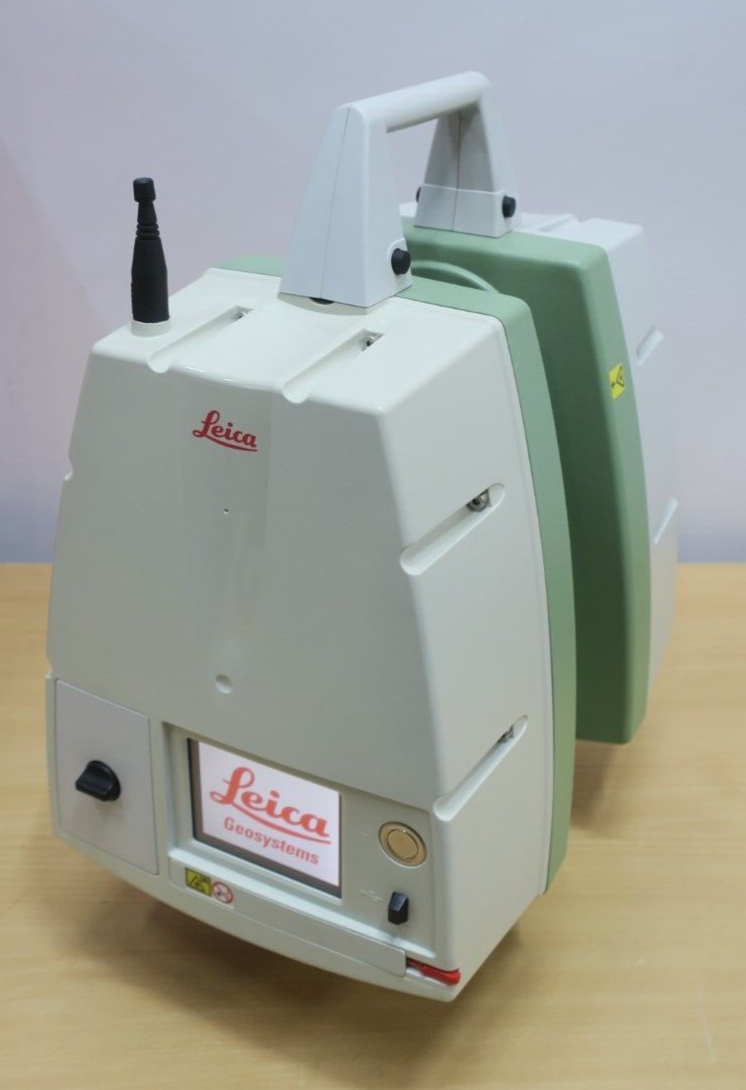

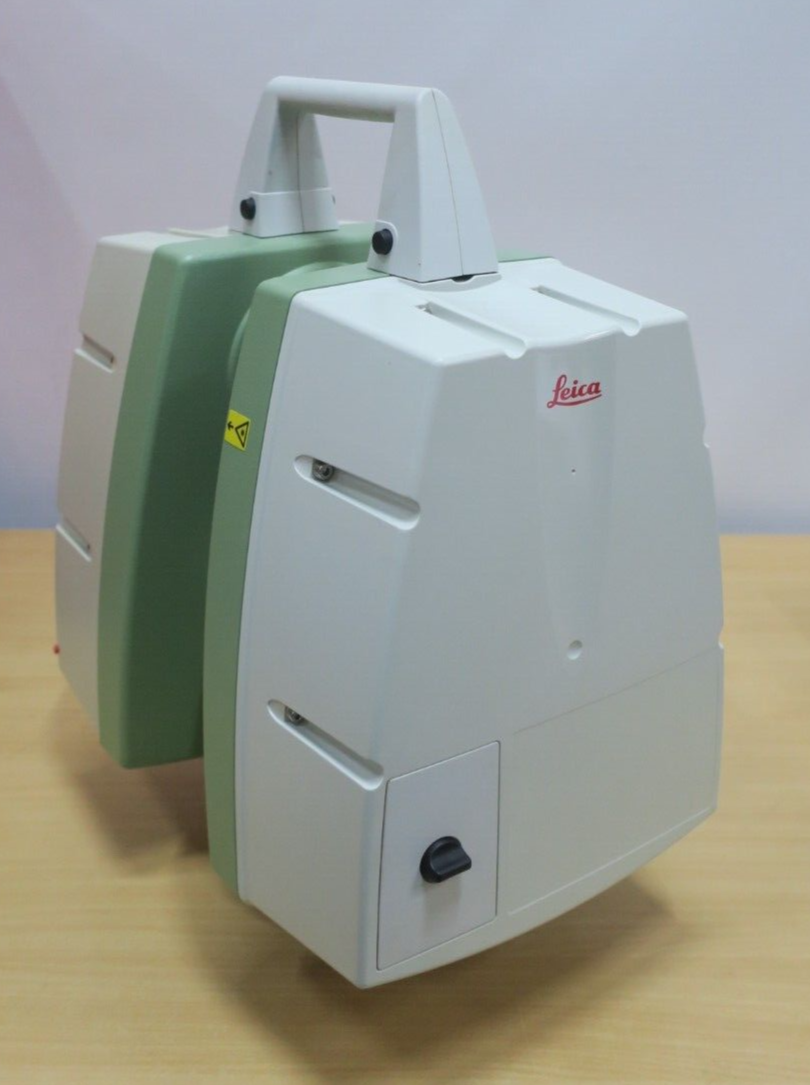

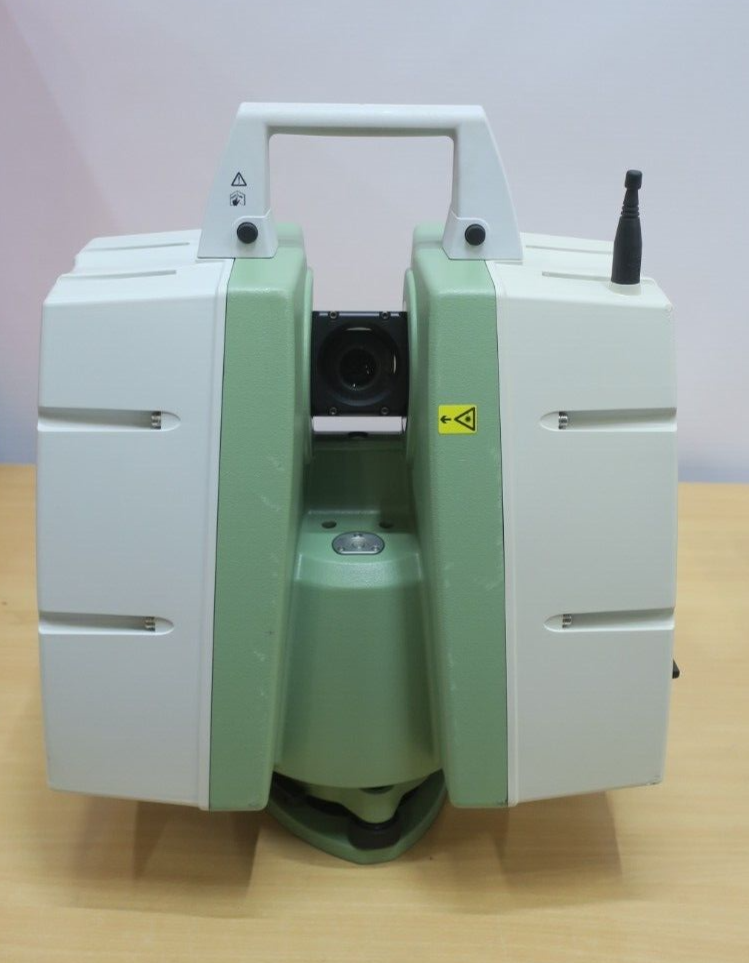

Leica ScanStation C10 Laser Scanner
The most value and best capabilities all packed in to one scanner.

The new normal for pulsed laser scanners
The most favored class of laser scanner the ScanStation is now in a solid, single ScanStation C10 platform. Features include a scanner, remote controller, data storage, and video camera. ScanStation C10 also contains major overtures in productivity, versatility, and ease-of-use for as-built and topographic High-Definition Surveying™ (HDS™).

Compact scanner potential for lower costs
The ScanStation C10 gives users the advantage of high-accuracy, long range scanning plus the advantage of fast, full-dome interior scanning - all in one instrument. The key is the new Smart X-Mirror design that automatically spins or oscillates the mirror for optimum productivity. Smart X-Mirror also automatically aligns the embedded, high-resolution video camera with the laser for fast targeting and fast, accurate texture mapping of scans.

Unrivalled adaptability:
The ScanStation C10 combines flexibility with the ability of users to travel, distribute or use scan targets for maximum options in dealing with site planning. A full field-of-view of 360º x 270º, high accuracy, long range, and a high scan speed of 50k pts/sec add to ScanStation C10’s environment as the most adaptable scanner in the business.

User-Friendly Interface:
The ScanStation C10 features user friendly total station like onboard graphic control, along with the ability to look at target scans in 3D. Users can also use a laptop computer control for a more complete scan viewing.

Specifications:
Instrument type    Compact, pulsed, dual-axis compensated, very high speed laser scanner, with survey-grade accuracy, range, and field-of-view; integrated camera and laser plummet
User interface    Onboard control, notebook, tablet PC or remote controller
Data storage    Integrated solid-state drive (SSD), external PC or external USB device
Camera Auto-adjusting, integrated high-resolution digital camera with zoom video

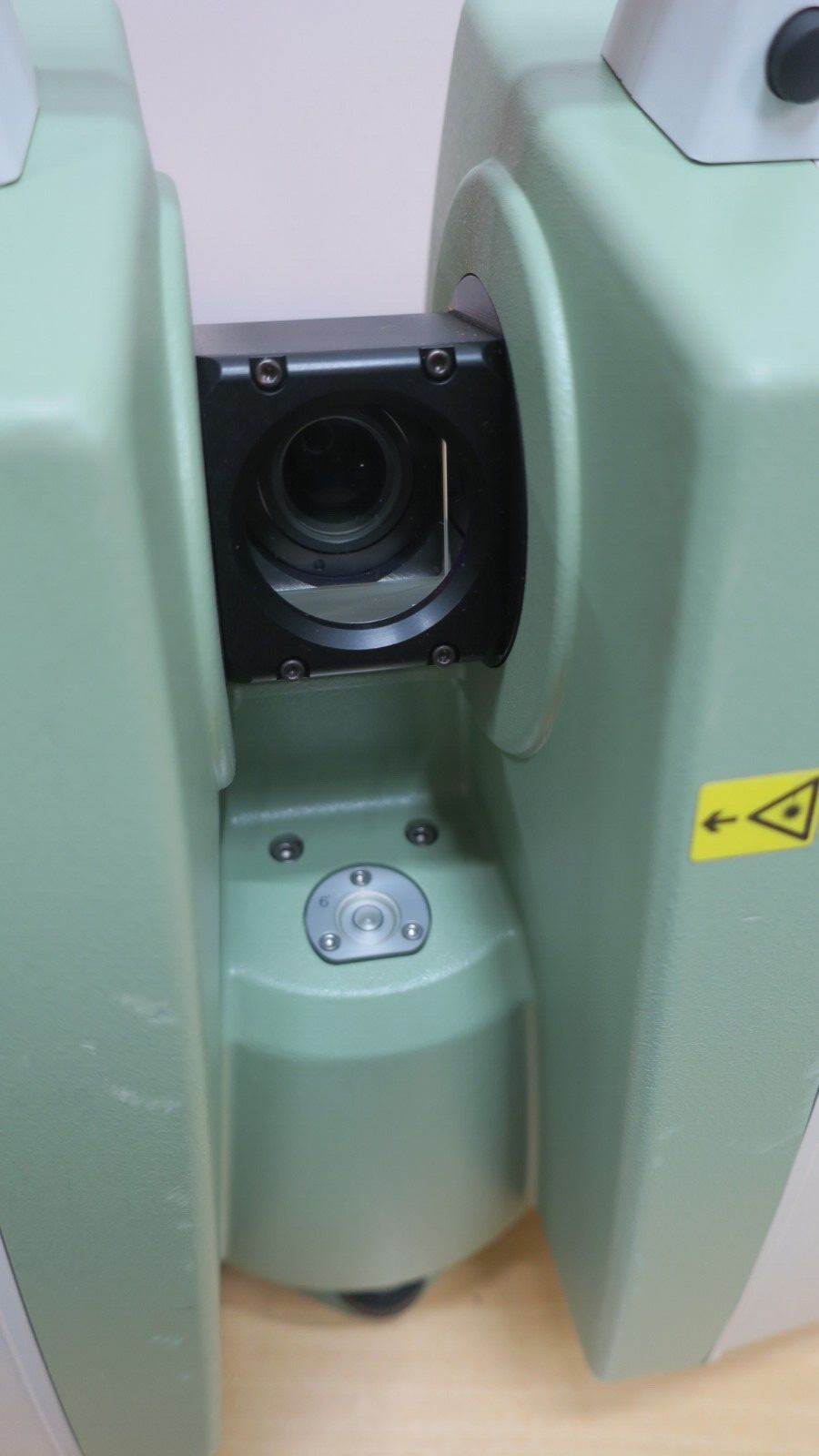

Scanning Optics    Vertically rotating mirror on horizontally rotating base; Smart X-Mirror™ automatically spins or oscillates for minimum scan time
Data storage capacity    80 GB onboard solid-state drive (SSD) or external USB device

Communications    Dynamic Internet Protocol (IP) Address, Ethernet or wireless LAN (WLAN) with external adapter
Integrated color digital camera with zoom video    Single 17° x 17° image: 1920 x 1920 pixels (4 megapixels) Full 360° x 270° dome: 260 images; streaming video with zoom; auto-adjusts to ambient lighting

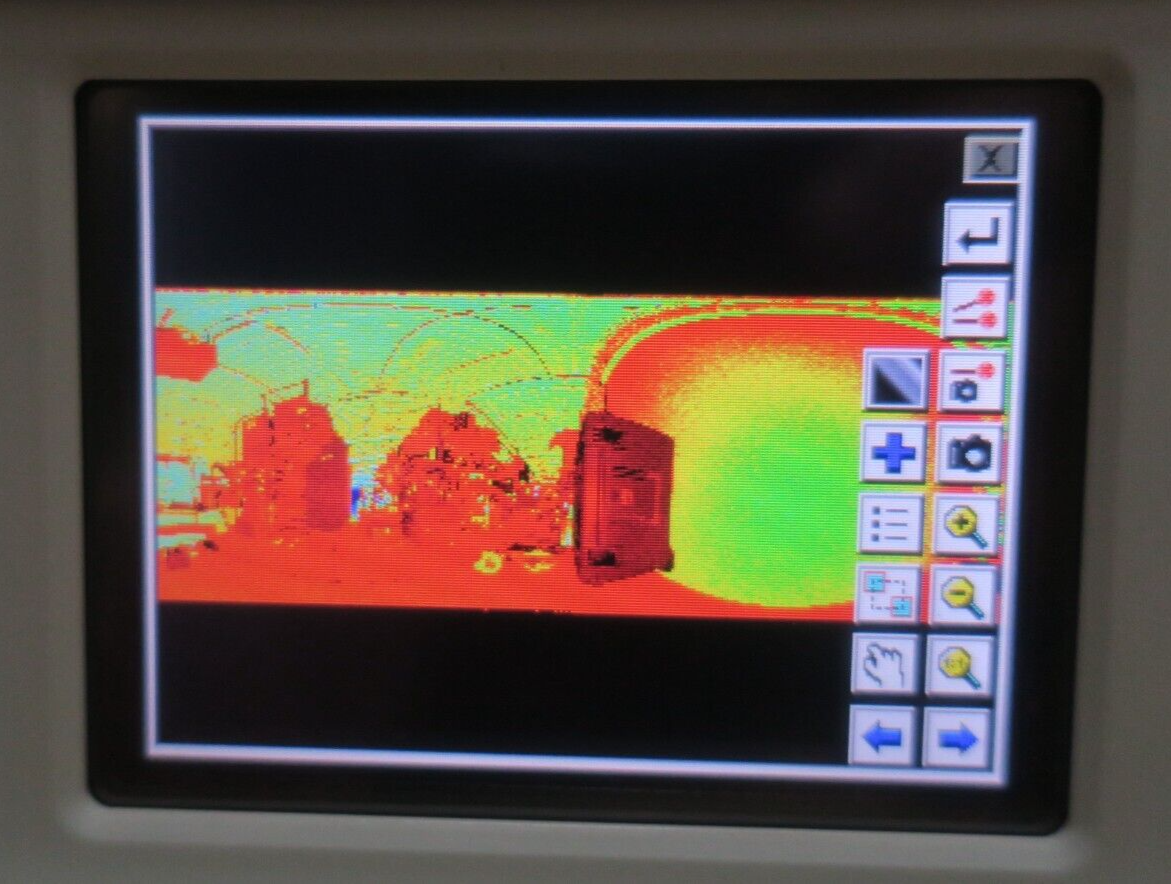

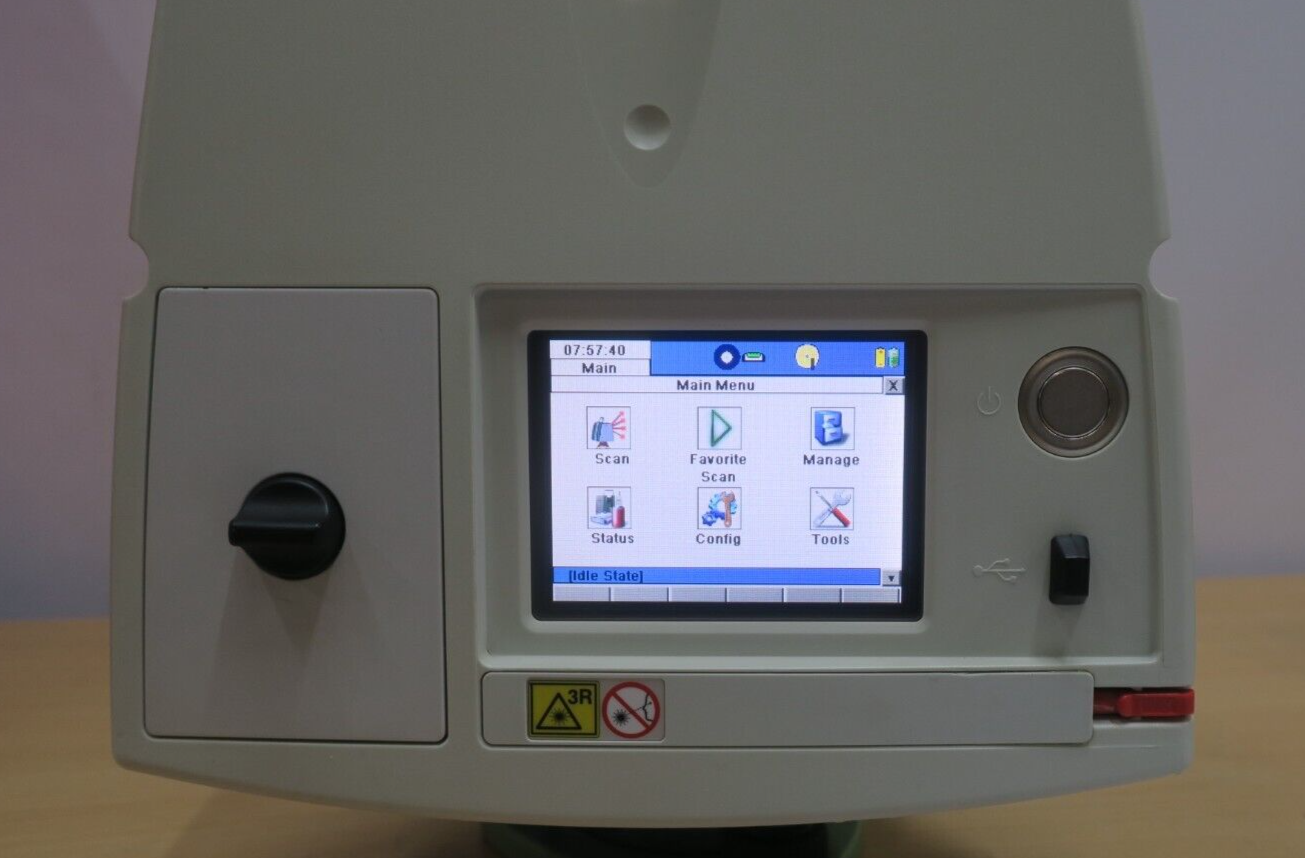

Onboard display    Touchscreen control with stylus, full color graphic display, QVGA (320 x 240 pixels)
Level indicator    External bubble, electronic bubble in onboard control and Cyclone software

System Performance:
Accuracy of single measurement Position: 6 mm
Distance: 4 mm
Angle: 60 µrad / 60 µrad (12” / 12”)
Modeled surface precision 2 mm
Target acquisition 2 mm std. deviation
Dual-axis compensator Selectable on/off, resolution 1”, dynamic range +/- 5’, accuracy 1.5”
Laser Scanning System
Type Pulsed; proprietary microchip
Color Green, wavelength = 532 nm visible
Laser Class 3R (IEC 60825-1)
Range 300 m @ 90%; 134 m @ 18% albedo (minimum range 0.1 m)
Scan rate Up to 50,000 points/sec, maximum instantaneous rate
Scan resolution Spot size: From 0 – 50 m: 4.5 mm (FWHH-based); 7 mm (Gaussian-based)
Point spacing: Fully selectable horizontal and vertical; <1 mm minimum spacing, through full range; single point dwell capacity
Field-of-View Horizontal: 360° (maximum)
Vertical: 270° (maximum)
Aiming/Sighting: Parallax-free, integrated zoom video

Data transfer Ethernet, WLAN or USB 2.0 device
Laser plummet Laser class: 2 (IEC 60825-1)
Centering accuracy: 1.5 mm @ 1.5 m
Laser dot diameter: 2.5 mm @ 1.5 m
Selectable ON/OFF
Electrical
Power supply 15 V DC, 90 – 260 V AC
Power Consumption <50 W avg.
Battery Type Internal: Li-Ion; External: Li-Ion
Power Ports Internal: 2, External: 1 (simultaneous use, hot swappable)
Duration Internal: >3.5 h (2 batteries), External: >6 h (room temp)
Environmental
Operating temp. 0° C to 40° C / 32° F to 104° F
Storage temp. -25° C to +65° C / -13° F to 149° F
Lighting Fully operational between bright sunlight and complete darkness
Humidity Non-condensing
Dust/humidity IP54 (IEC 60529)

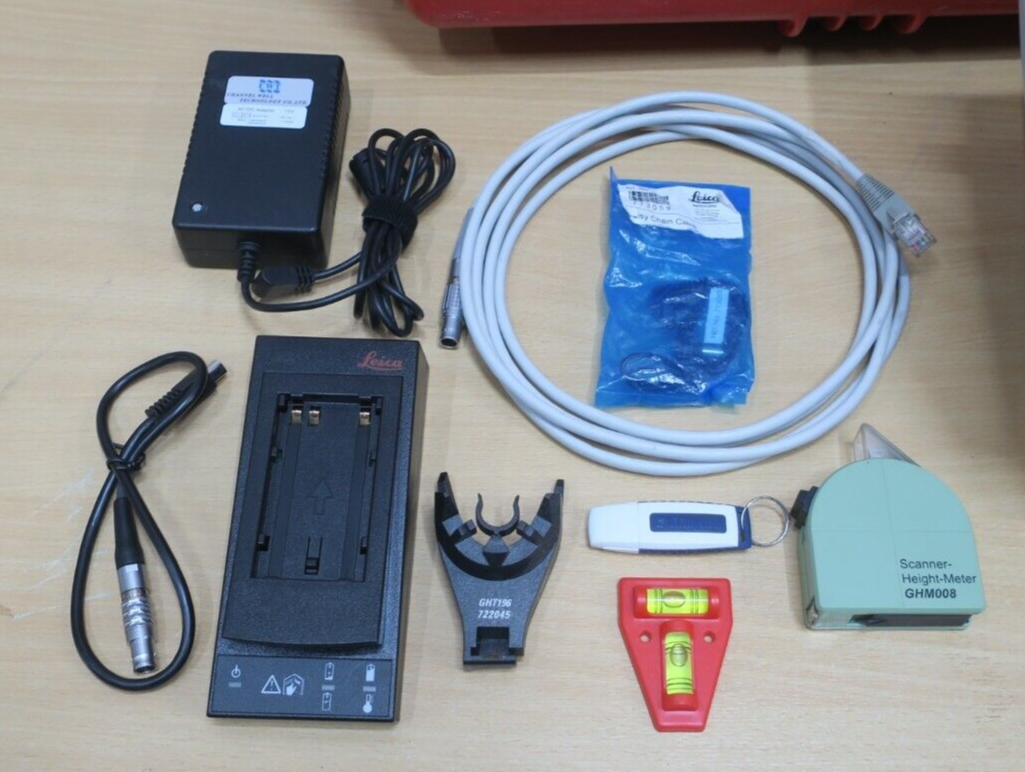

Included:-

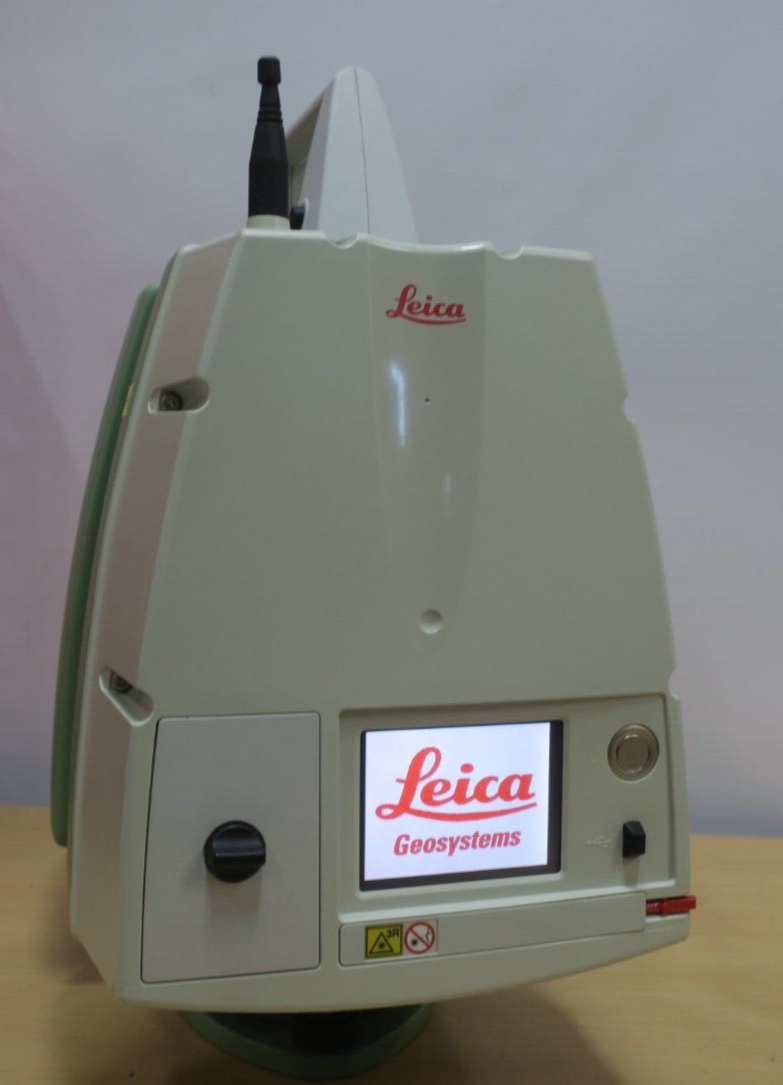

1x Leica HDSC10 ScanStation C10 Scanhead PN 767742
1x Leica GDF321 Tribrach without Optical Plummet PN777508

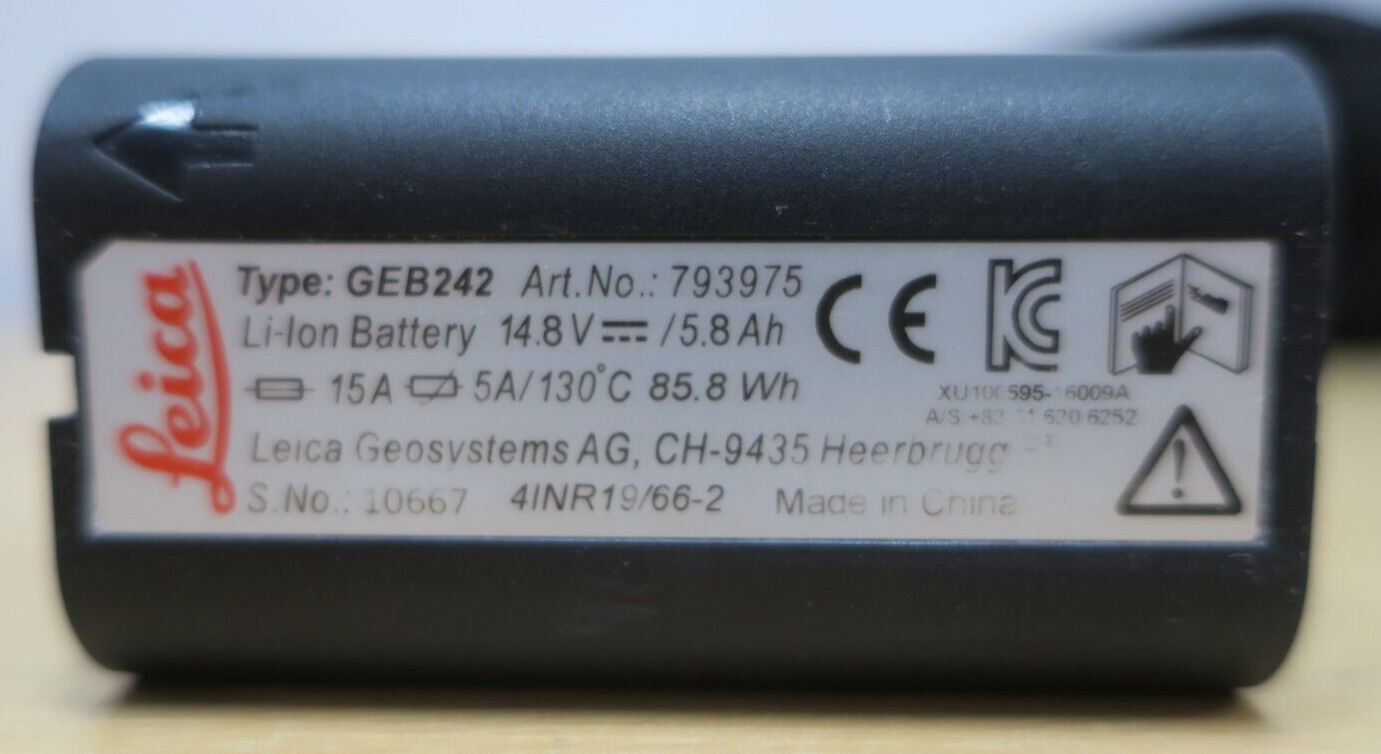

4x Leica GEB242 Battery int LI-Ion 14.8V/5.8Ah PN 793975

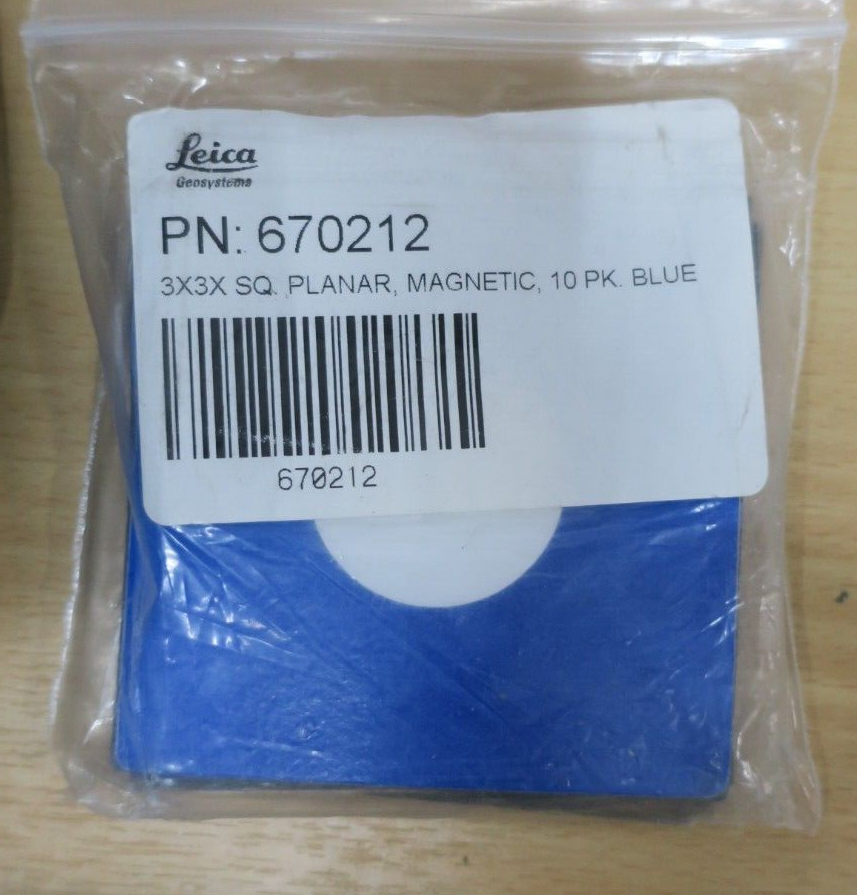

1x Leica 3X3X SQ Planar Magnetic 10 PK Blue PN 670212
1x Leica GHM008 Instrument Height Meter PN 772829

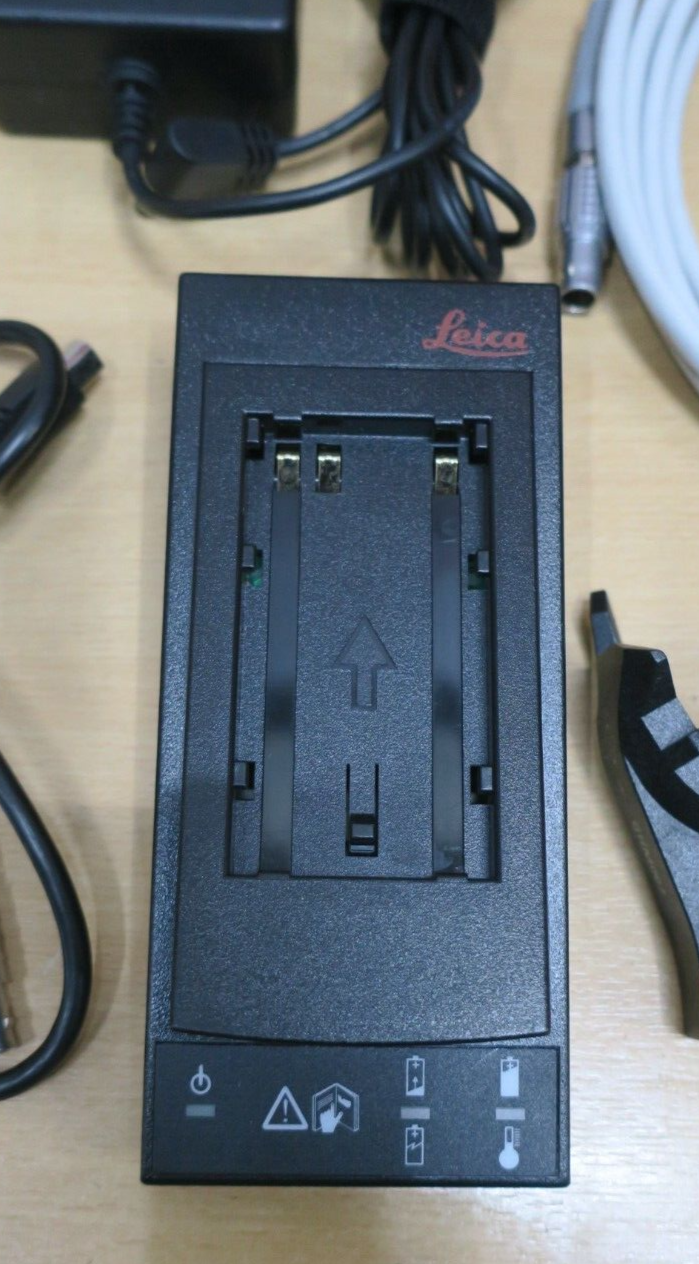

1x Leica GKL212 Battery Charger PN 772785

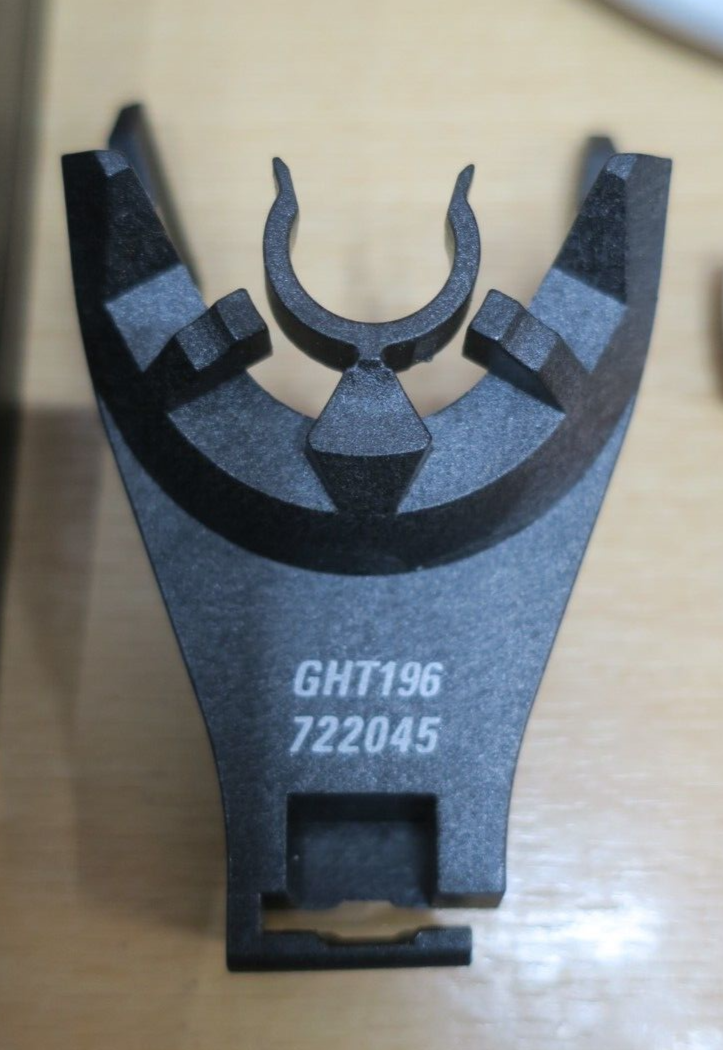

1x Leica GHT196 Holder for Height Meter PN 722045
1x Leica AC/DC Adapter Power Cable
1x Leica Daisy Chain Cable PN 773059
1x Leica GEV228 ScanStation C10 data cable
1x Leica ScanStation C10 User Manual

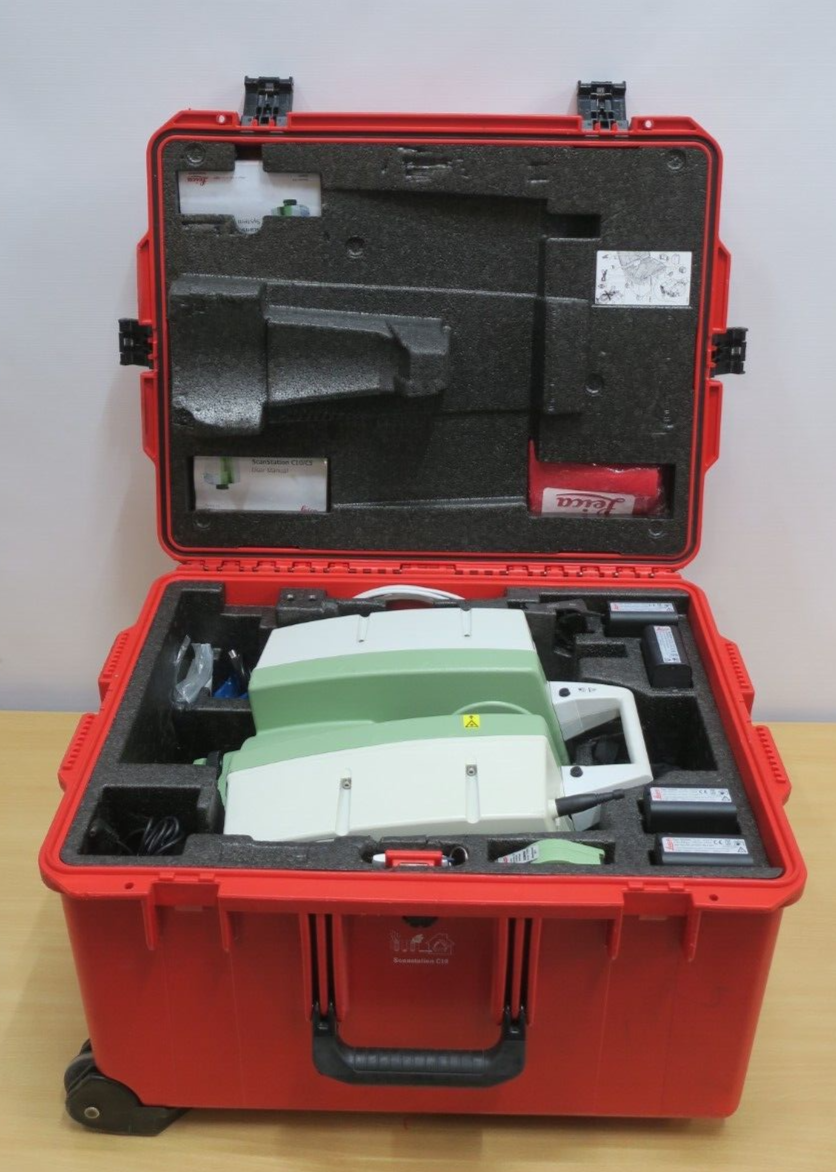

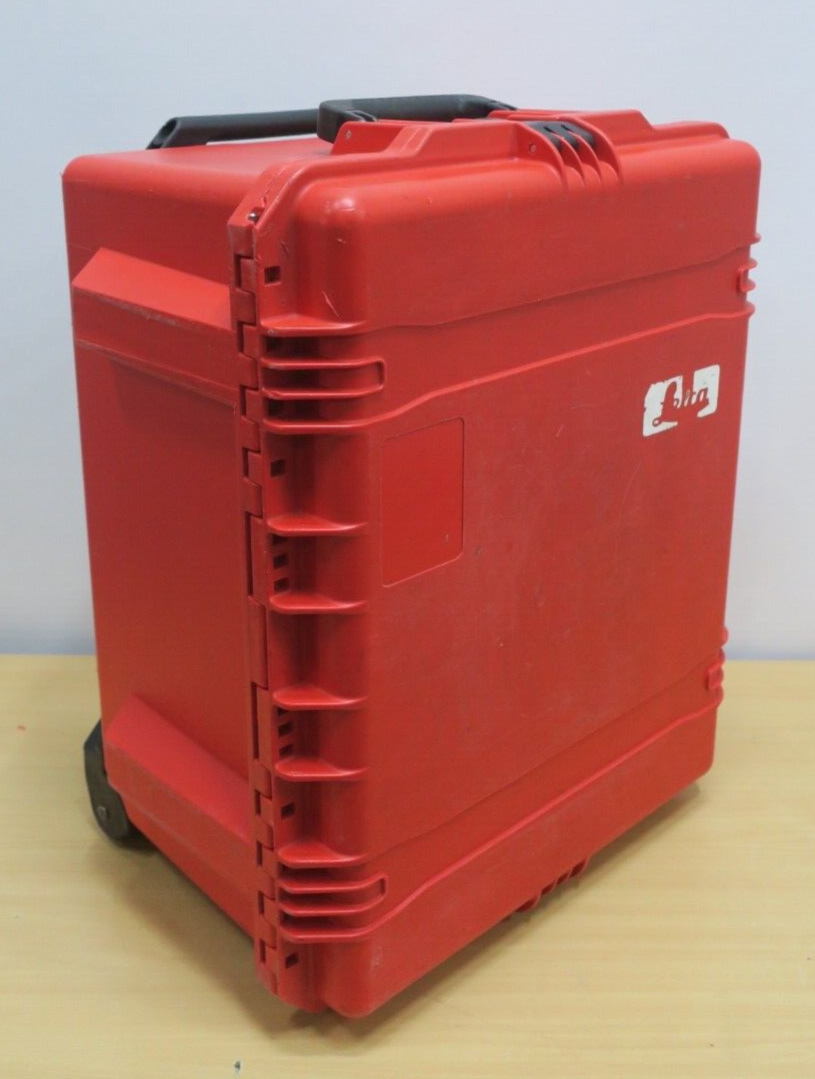

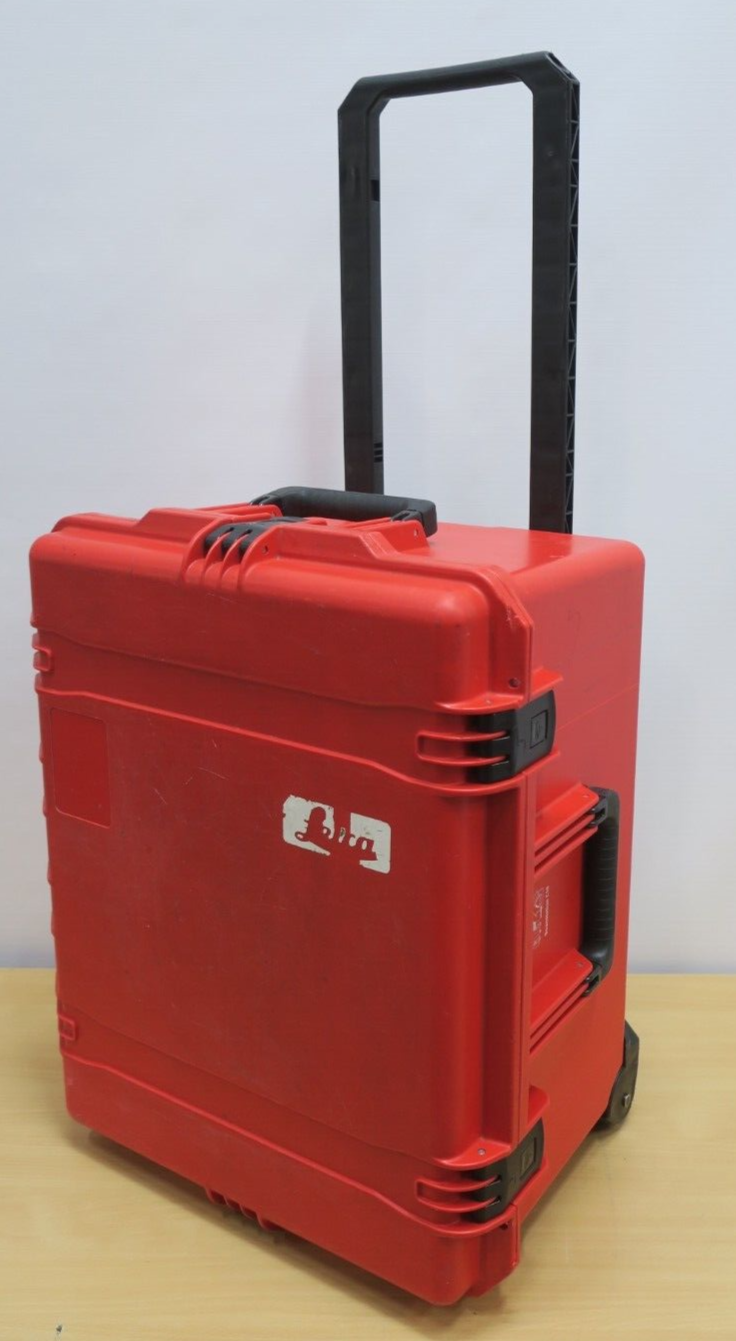

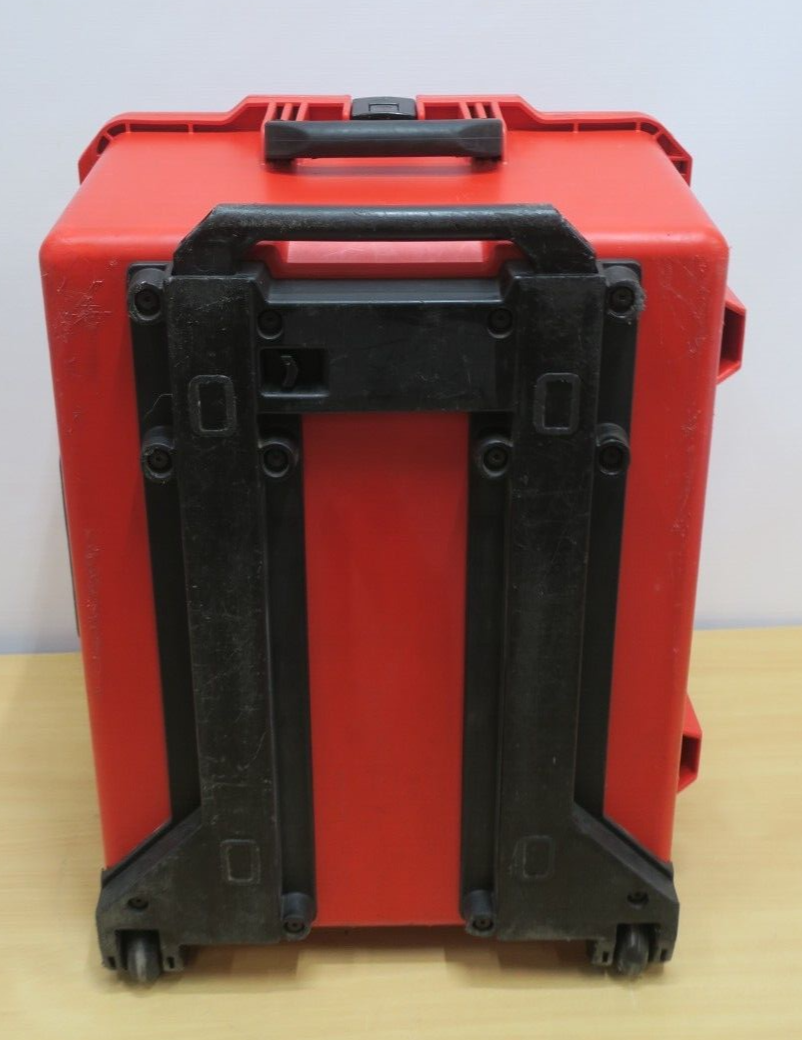

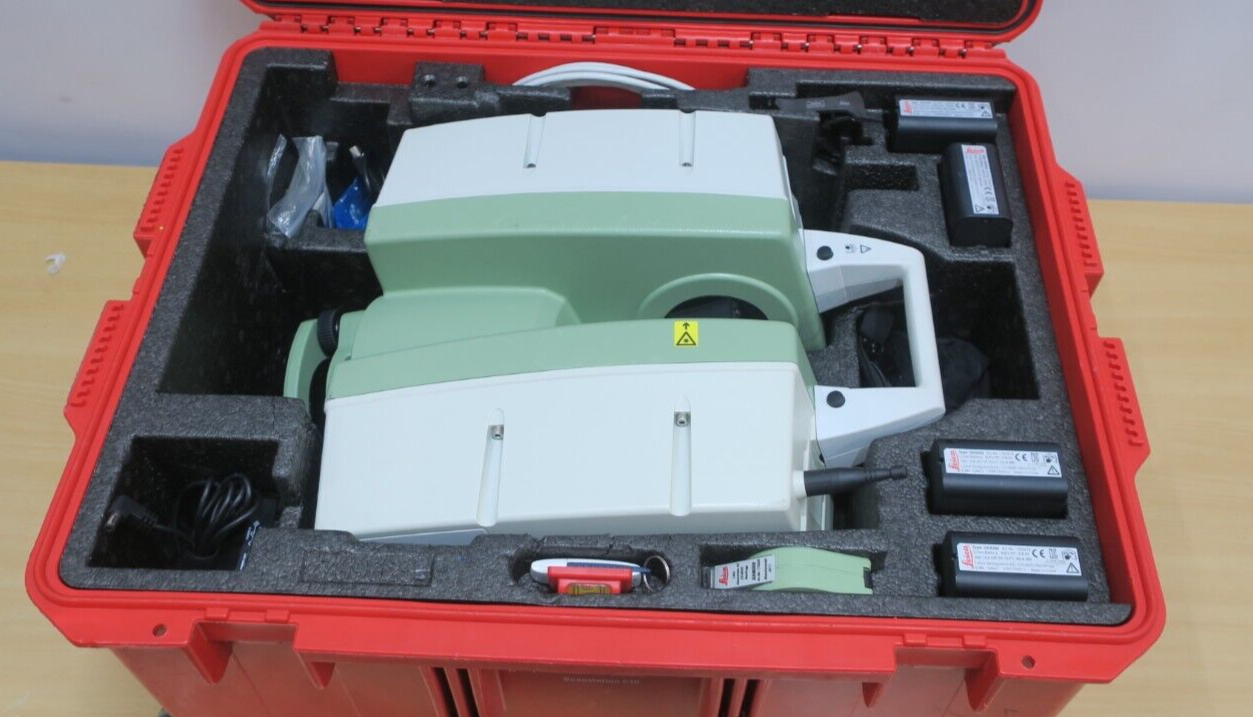

1x Leica Hard Transport Wheeled Case
1x Rain Cover
1x USB Storage Stick
