Leica

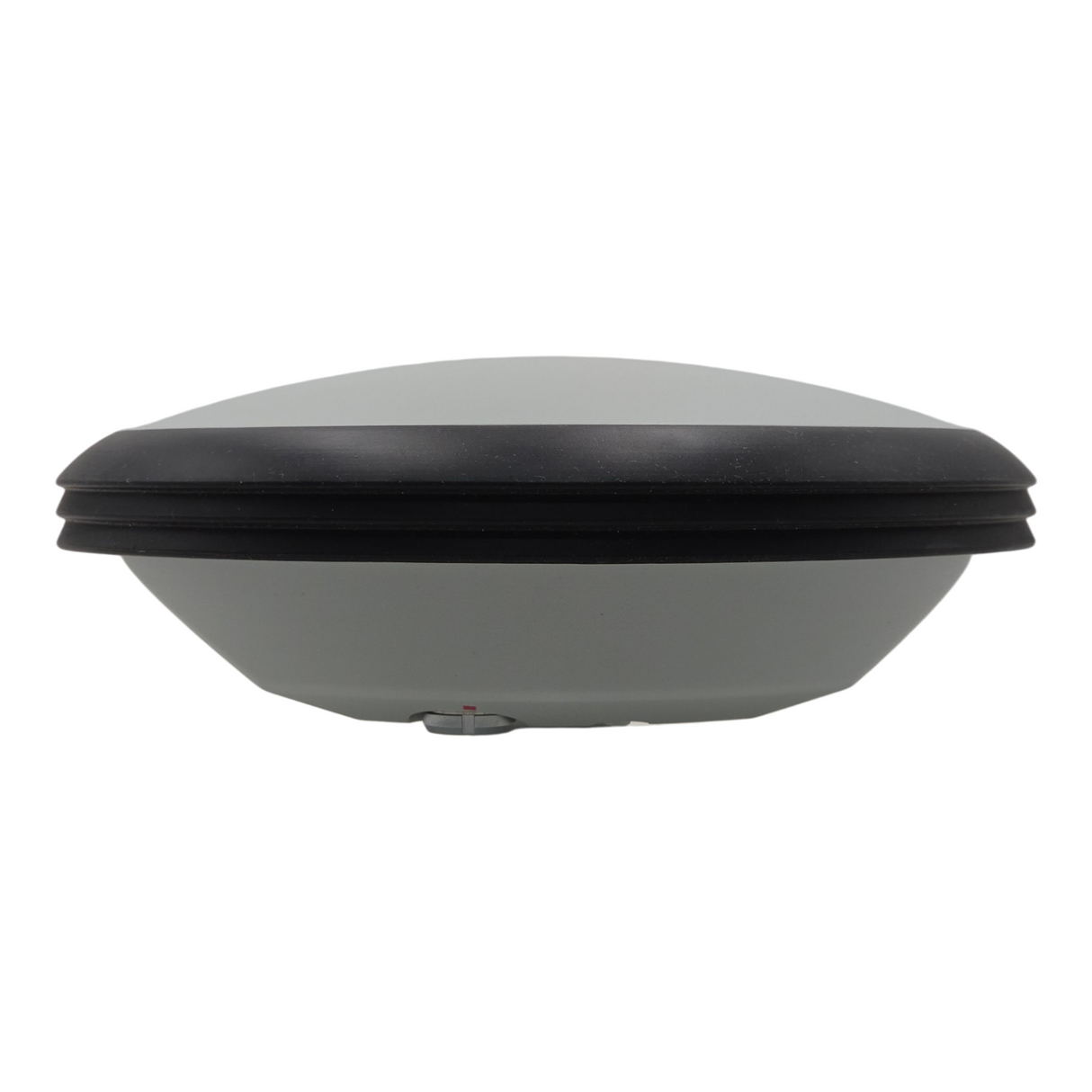

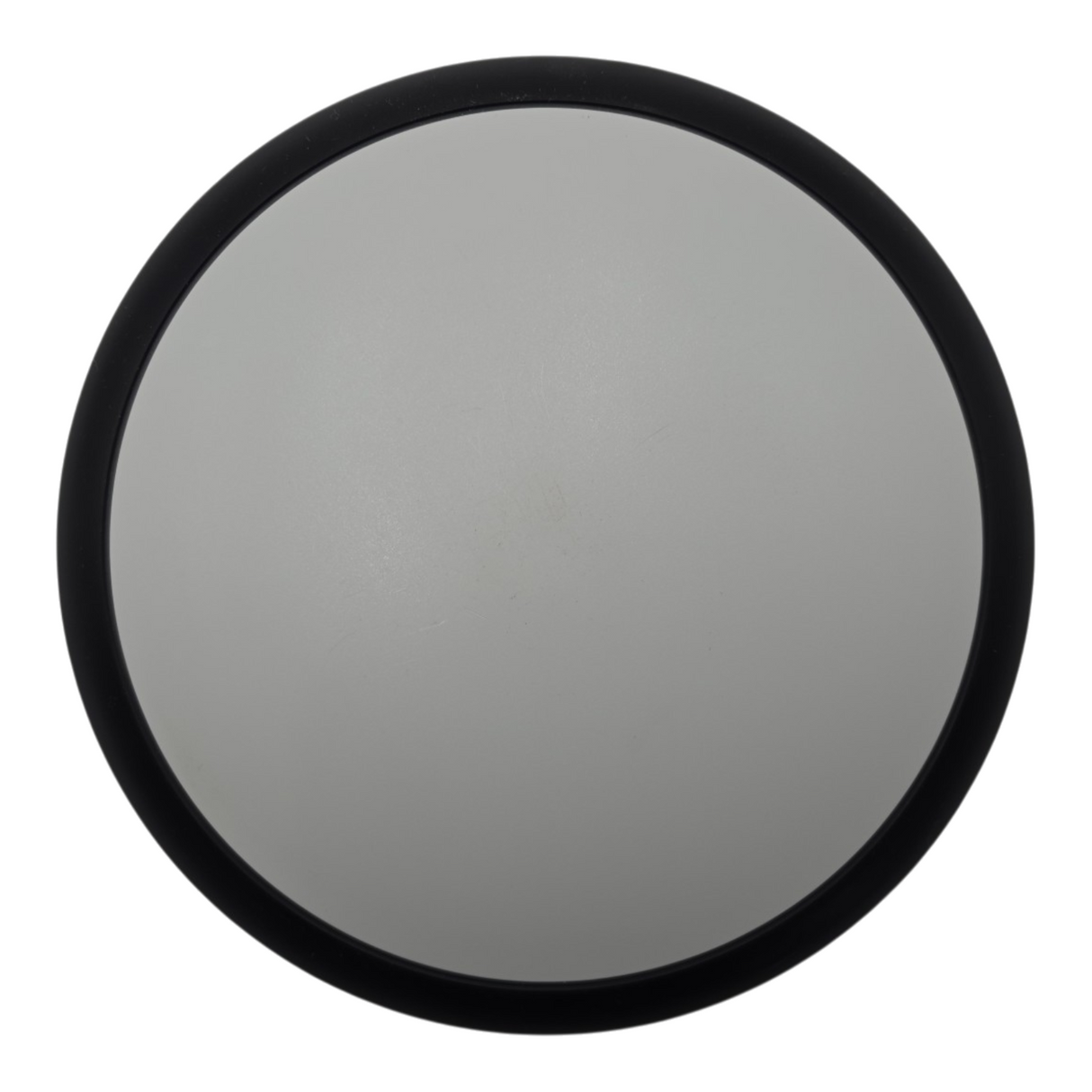

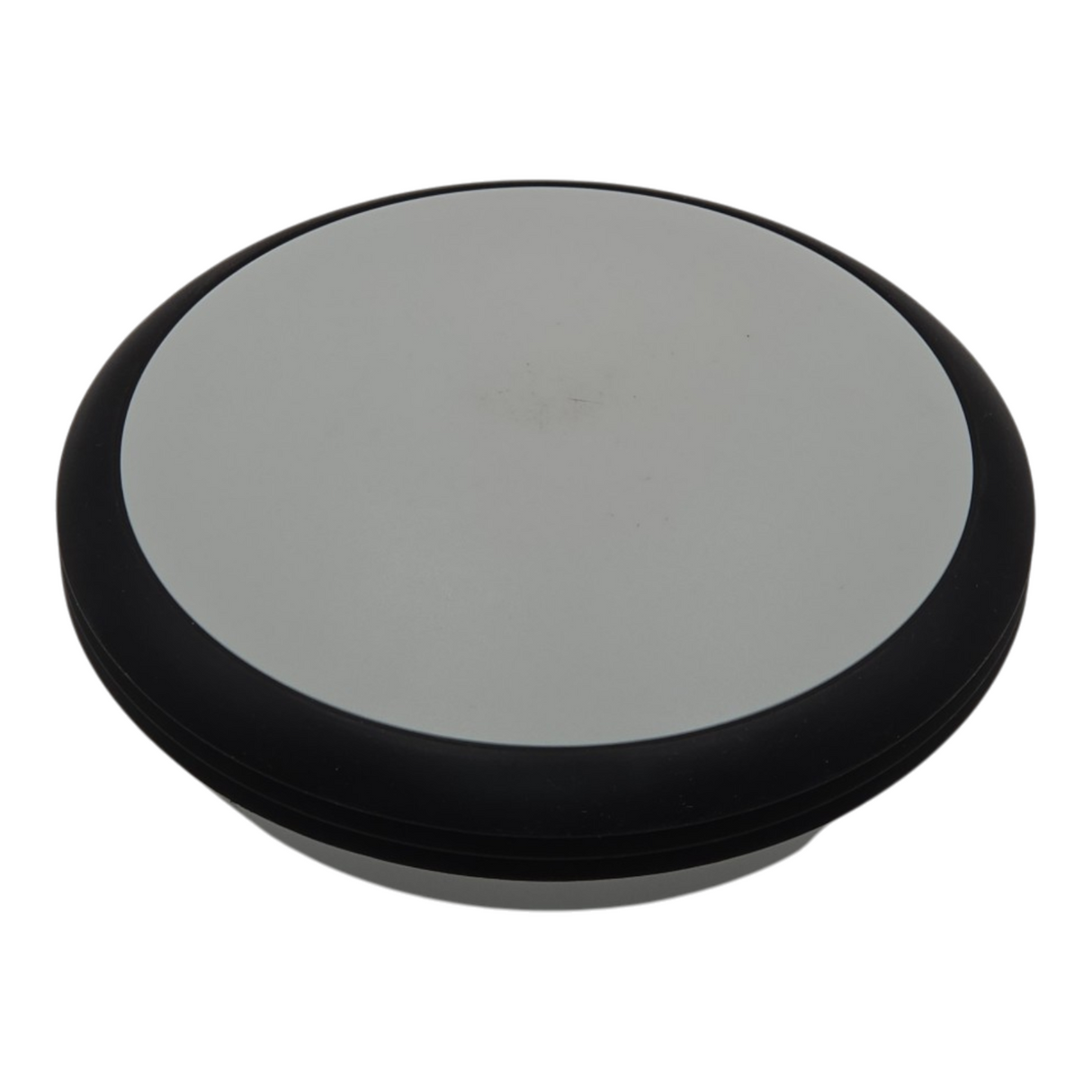

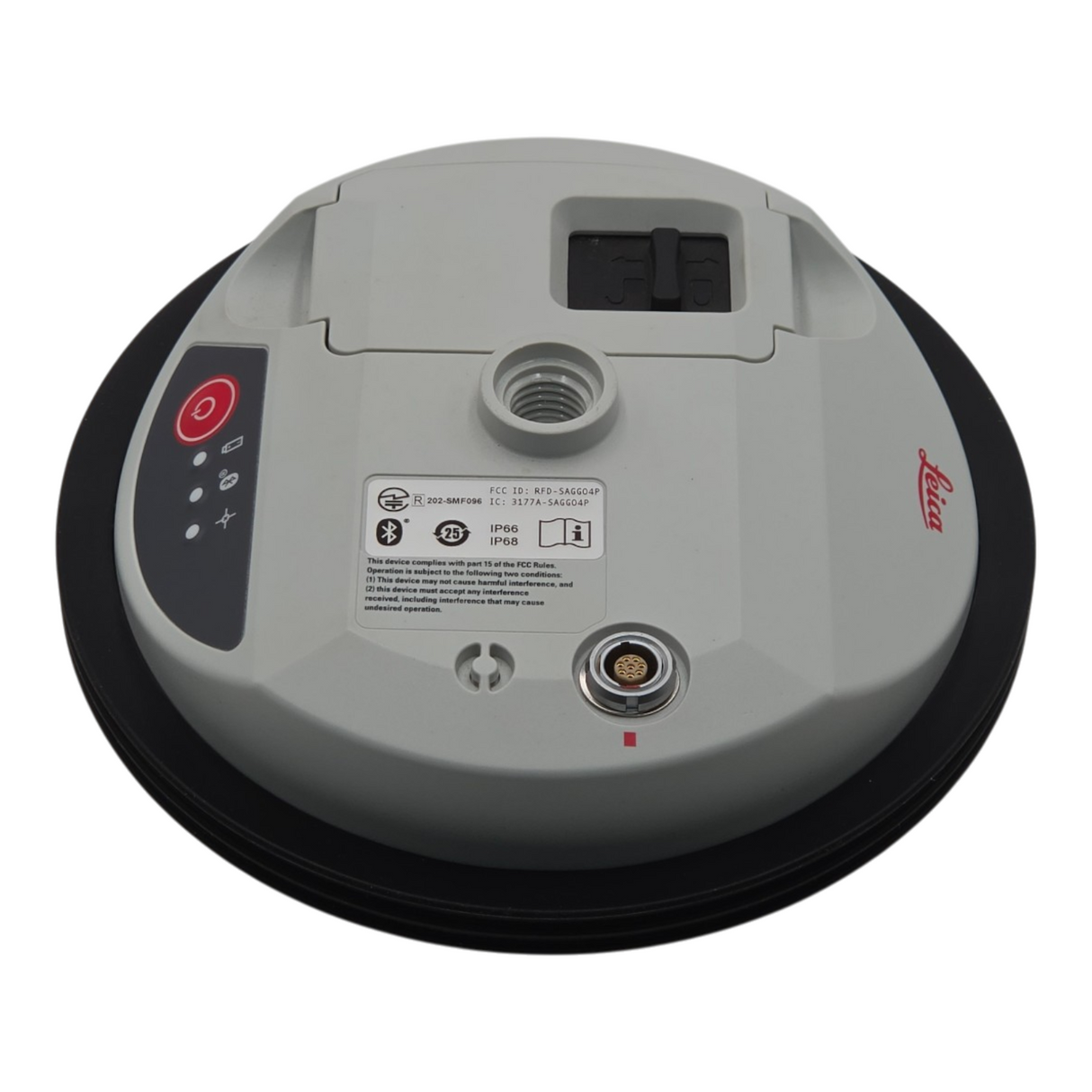

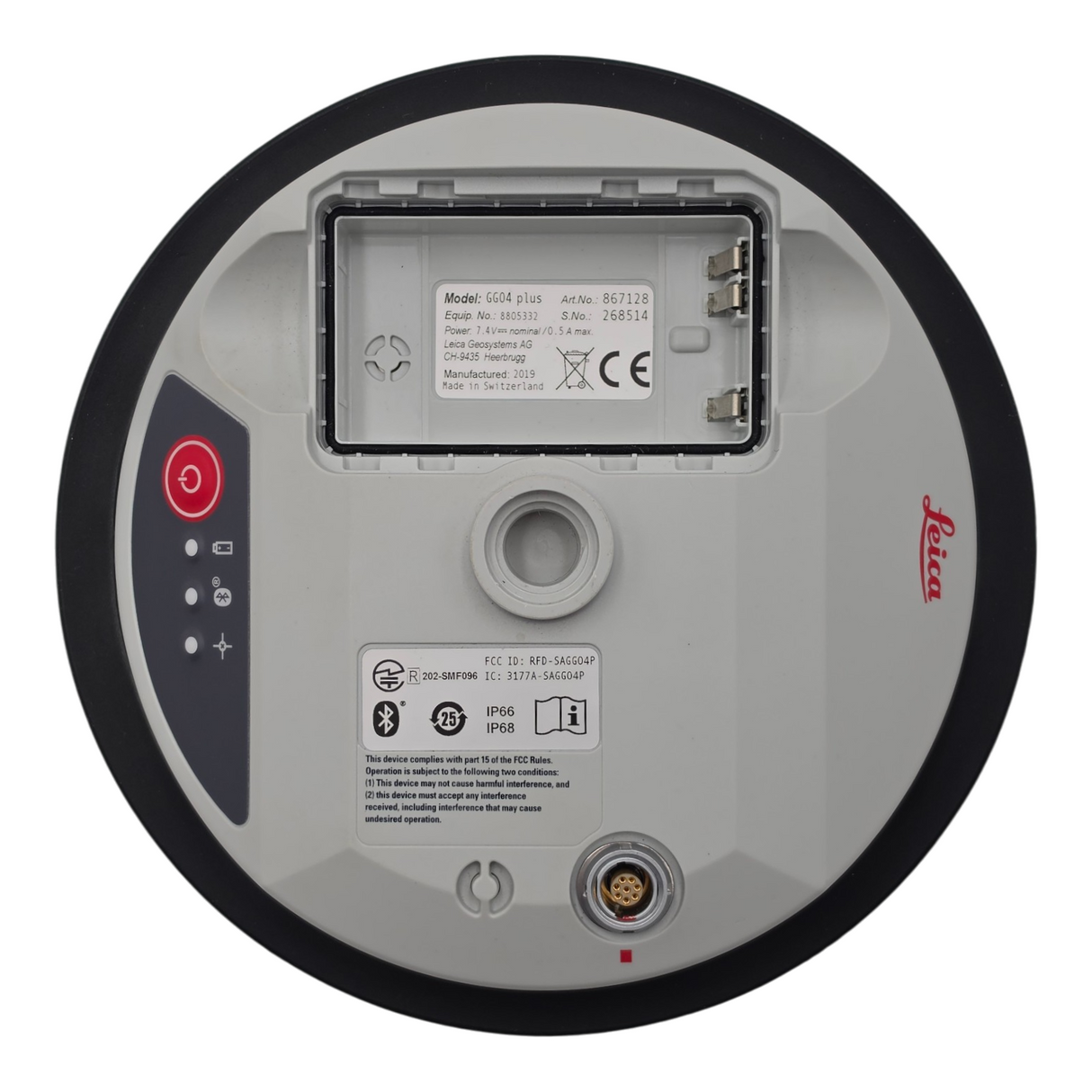

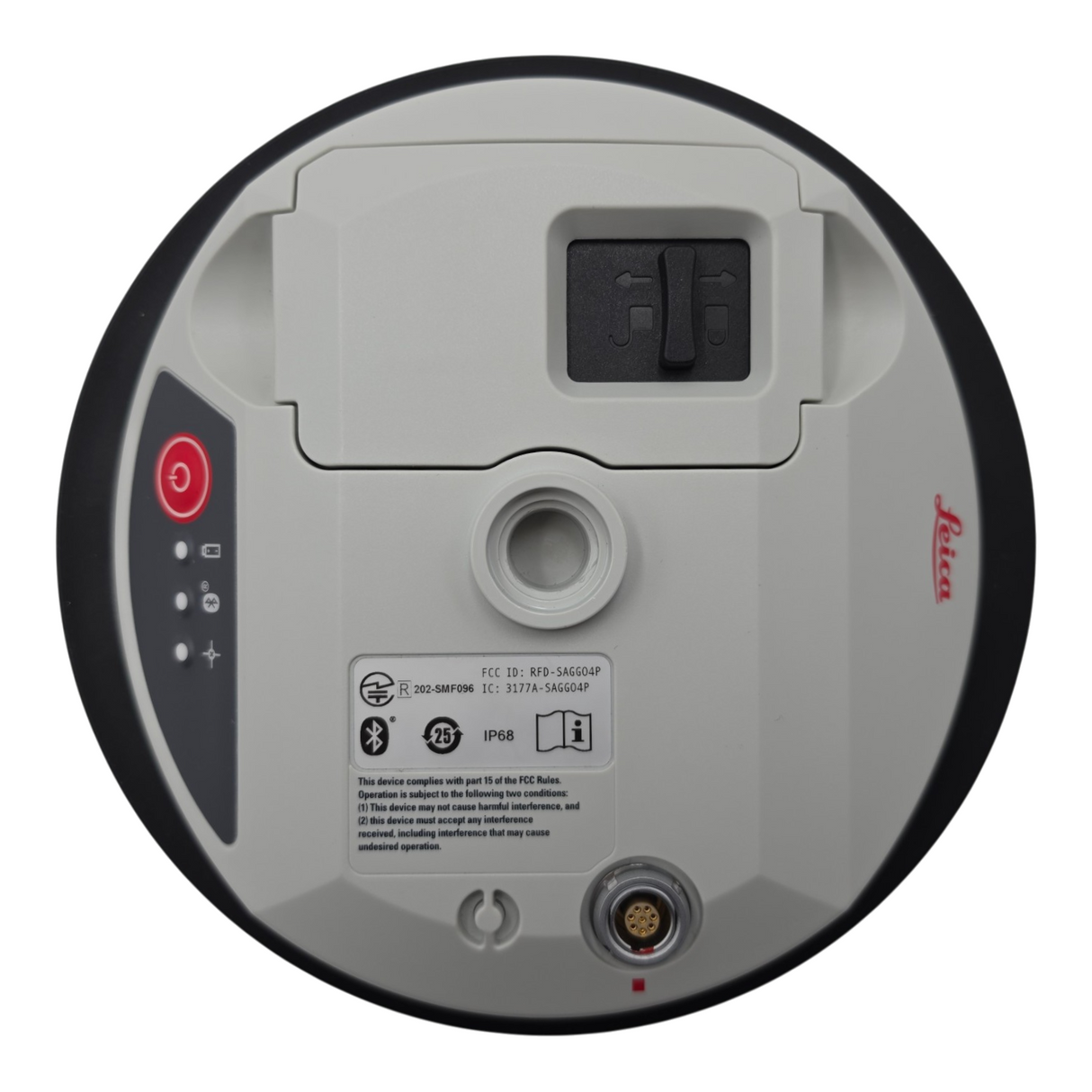

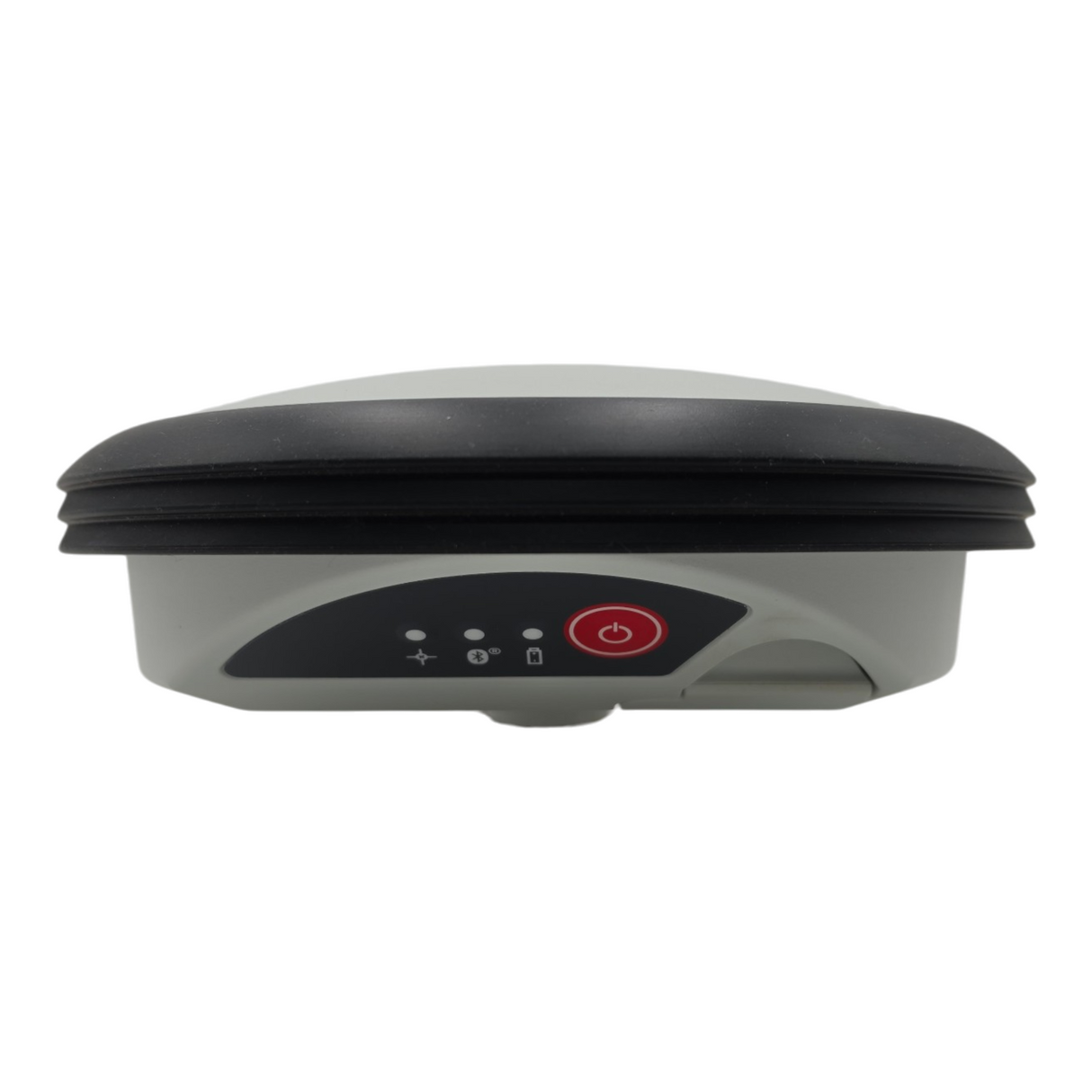

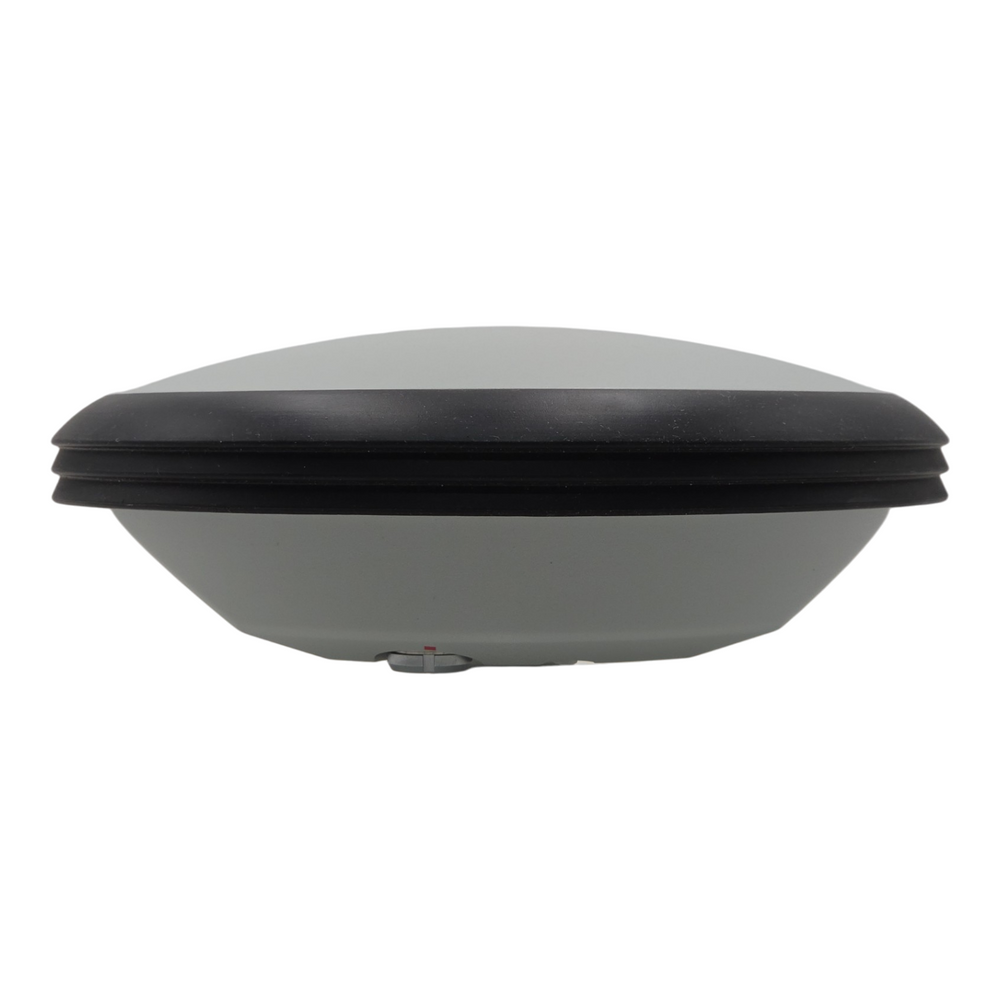

Leica Zeno GG04 Plus Smart Antenna POST2 Centimetre Mapping RTK GNSS Receiver

£1,662.50 Ex. VAT
£1,995.00 Inc. VAT @ 20%

Pre-owned

Product overview

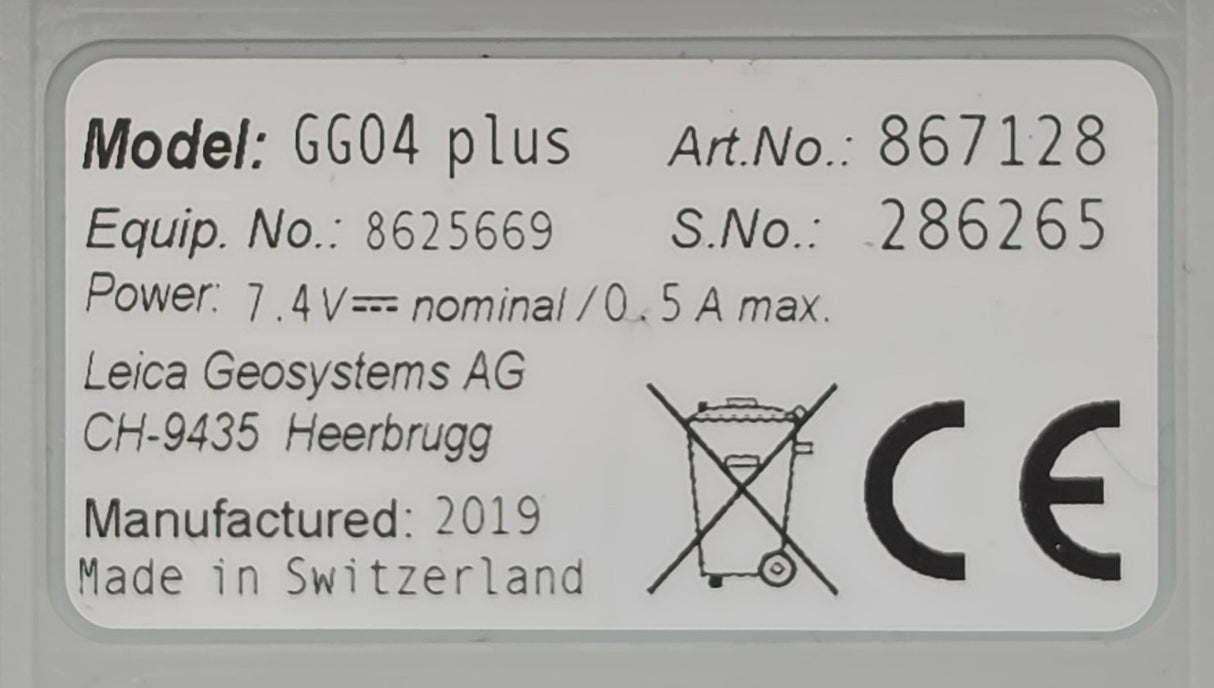

Date of Manufacture: 2019
MPN: 8625669
Channels: 555
Initialisation Time: 6 Seconds
Real-Time Protocols: RTCM 2.x, RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM MSM, CMR, CMR+
Drop Resistance: 2-Metre Pole Topple / 1-Metre Hard Surface
Signals Tracked: GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC, SBAS, L-Band
Operating Temperature: -40 °C to 65 °C (-40 °F to +149 °F)
Update Rate: 20 Hz (0.05 sec)
Spot Prime PPP Accuracy: 10 cm
Submersion Depth: 1.40 Meters for 2 Hours
Battery Type: Removable Lithium-Ion (Li-Ion)
Brand: Leica
Operating Time: 7.5 Hours (RTK) / 10 Hours (GNSS)
Charge Time: 2 Hours to Full Charge
Vertical RTK Accuracy: 2 cm + 1 ppm
IP Rating: IP66 & IP68
Horizontal RTK Accuracy: 1 cm + 1 ppm
Protection Features: Dustproof, Waterproof, Shockproof, Weather-Resistant
Frequency: Multi-Frequency (Dual-Frequency)
Correction Services: SBAS (WAAS, EGNOS, MSAS, GAGAN), RTK, PPP (L-Band)
Wireless Connectivity: Bluetooth 4.1 Class 1
Wired Interface: 8-Pin Lemo (USB / RS-232 Serial)
Compatible Operating Systems: Android, iOS, Windows
Country of Origin: Switzerland
Leica Zeno GG04 Plus Smart Antenna POST2 Centimetre Mapping RTK GNSS Receiver
P/N: 8625669

In Good Condition and Full Working Order
Tested
Battery & Charger NOT Included

Included Items:
1 x Leica Zeno GG04 Plus Smart Antenna

GNSS Technology:
Channel Tracking Capacity: 555 Channels.
Tracked Satellite Constellations: GPS (L1, L2, L2C/L2P, L5), Glonass (L1, L2, L3), BeiDou (B1, B2, B3), Galileo (E1, E5a, E5b, Alt-BOC, E6), QZSS, NavIC (IRNSS, L5), SBAS, L-Band.
Integrated Real-Time SBAS: EGNOS, WAAS, MSAS, GAGAN.
Real-Time Protocols: RTCM 2.x, RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM MSM, CMR, CMR+.
Output Data Protocols: NMEA-0183 (GGA, VTG, GLL, GSA, GGQ, GSV, RMC, LLQ, GST), Android/iOS Location Services.
Static Post-Processing Accuracy: Horizontal 3mm + 0.5ppm, Vertical 6mm + 0.5ppm.
RTK Real-Time Accuracy: Horizontal < 1cm + 1ppm, Vertical 2cm + 1ppm.
Spot Prime PPP Accuracy: < 10cm After 15 Minutes Convergence.
Spot Light PPP Accuracy: < 60cm After 8 Minutes Convergence.
Positioning Update Rate: 20Hz.
Initialization Time: 6 Seconds.

Interfaces & Power:
Wireless Connectivity: Bluetooth 4.1 Class 1 Engine.

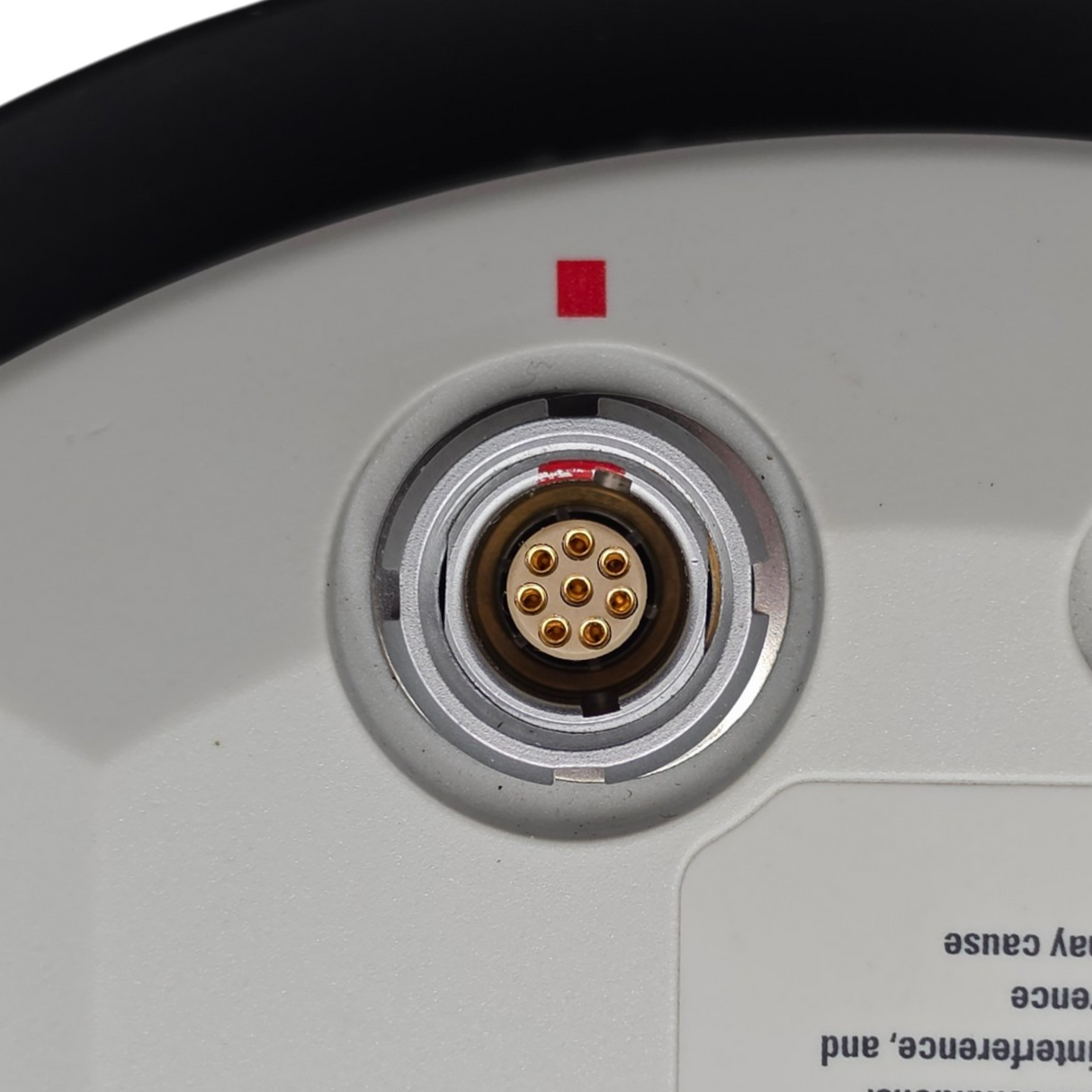

Wired Connectivity: Sealed and Protected 8-Pin Lemo Combined USB and Serial RS232 Port Interface.
Field Controller Connectivity: Bluetooth (3 Ports Available), RS232, or USB Cable.
Battery Type: GEB212 Rechargeable Lithium-Ion (7.4V / 2600mAh). (NOT INCLUDED)
Power Input: Nominal 12V DC, Range 10.5 to 28V DC.
Battery Life: 7.5 Hours RTK Mode, 10 Hours GNSS Only Mode.
Charging Time: 2 Hours via GKL341 Charger. (NOT INCLUDED)

Physical & Environmental Design:
IP Rating: Certified IP66 and IP68 Ratings.
Submersion Rating: 2 Hours in 1.40m Depth.
Operating Temperature: –40°C to 65°C, Storage –40°C to 80°C.
Humidity: 100%.
Dimensions: Height 71mm, Diameter 186mm.
Weight: 0.8kg
Structural Drop Resistance: 2m Survey Pole Topple, 1m Hard Surface Drop.
