Lynx Technik OCM-1891 & OCM-1892 Yellobrik 9 Channel Fibre Optic CWDM LC Connect
£684.00
£570.00 ex VAT
Unit price
/
Unavailable
Lynx Technik OCM-1891 & OCM-1892 Yellobrik 9 Channel Fibre Optic CWDM LC Connect is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Lynx Technik
MPN: OCM-1891 OCM-1892 RFR-1018
Country of Origin: Germany
Includes

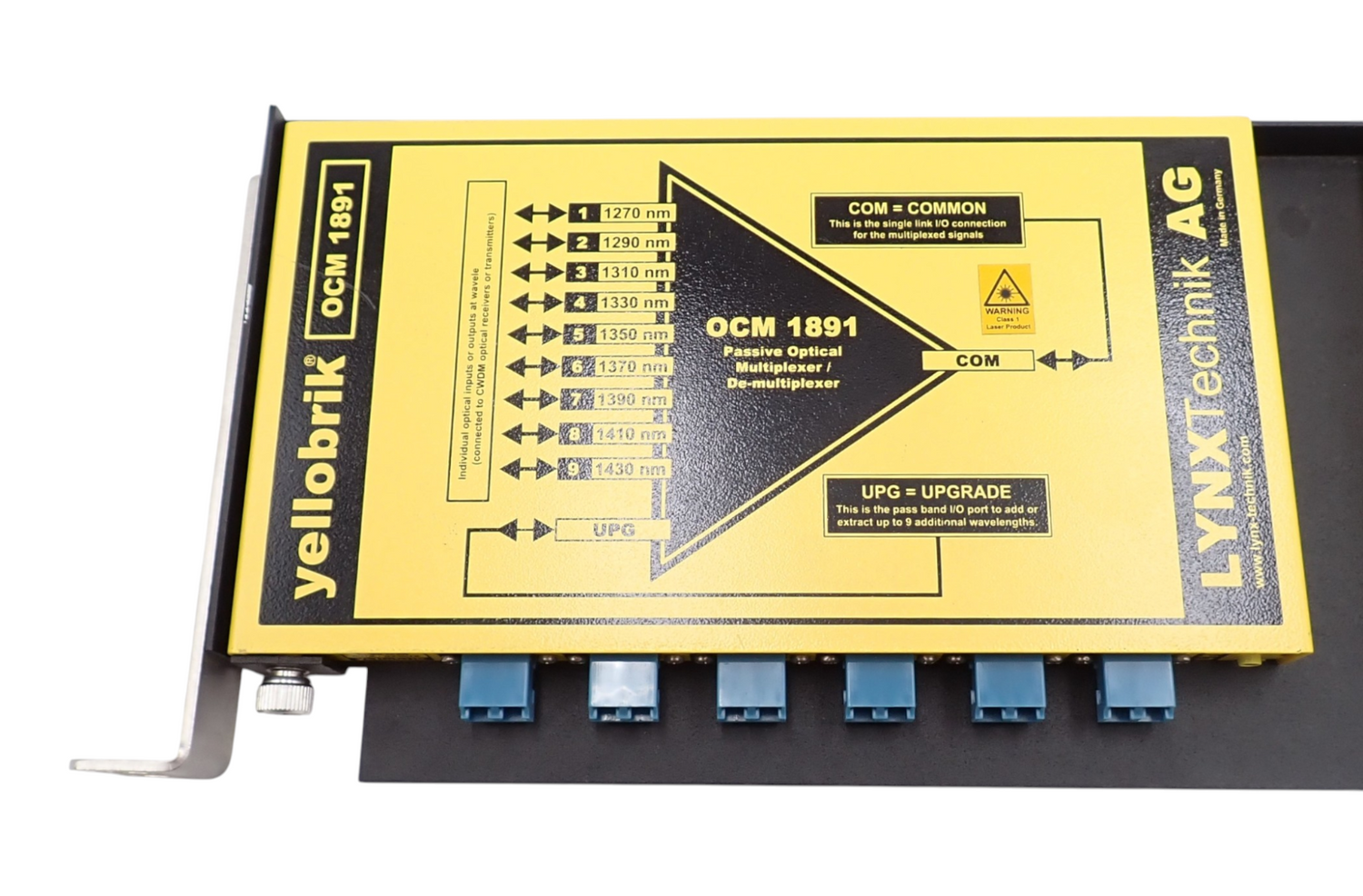

- 1 x Lynx Technik OCM-1891 9 Channel Fibre Optic CWDM 1270nm - 1430nm, LC connectors

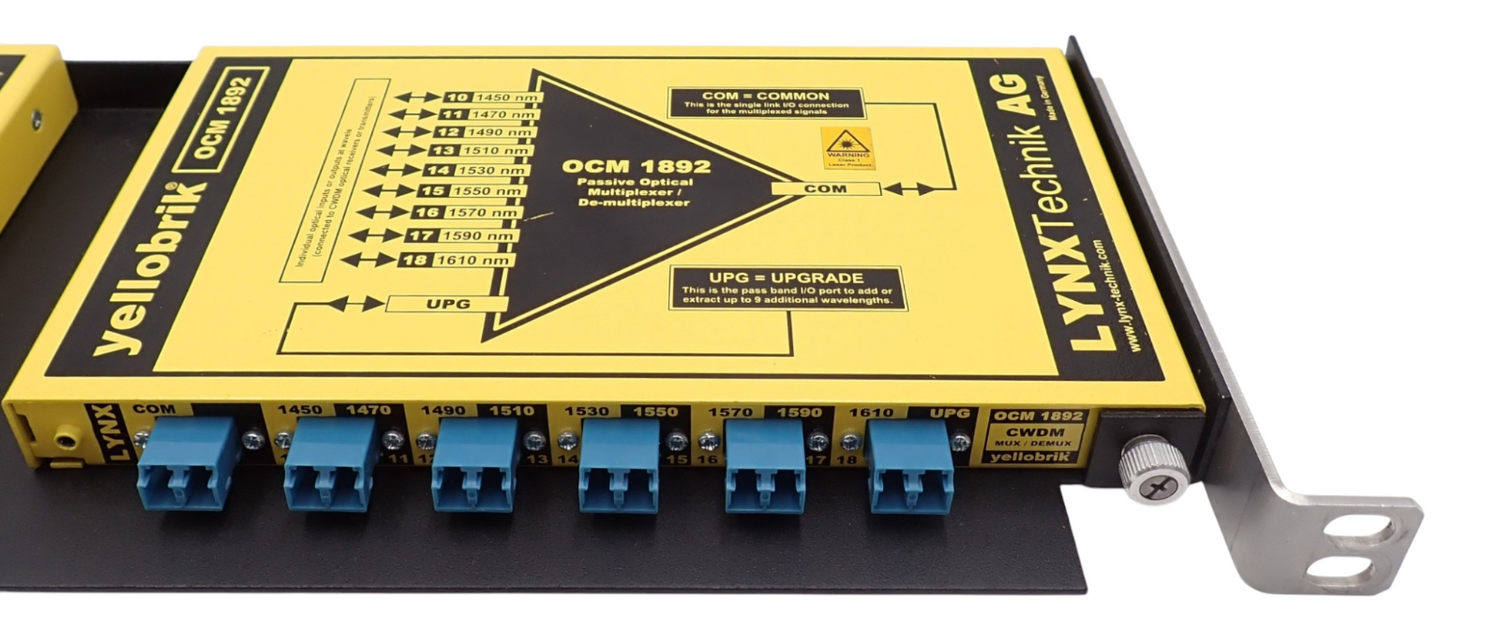

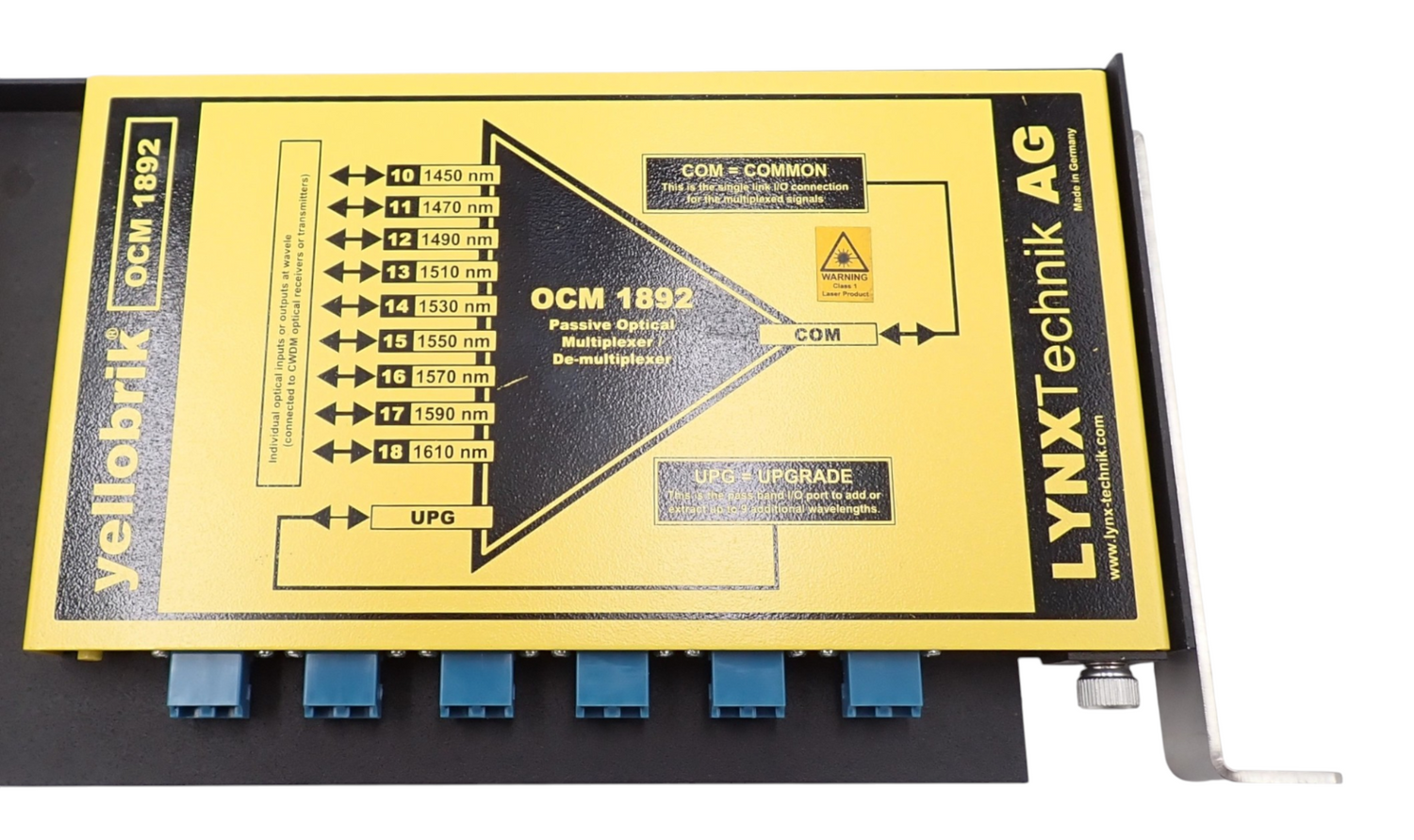

- 1 x Lynx Technik OCM-1892 9 Channel Fibre Optic CWDM 1450nm - 1610nm, LC connectors

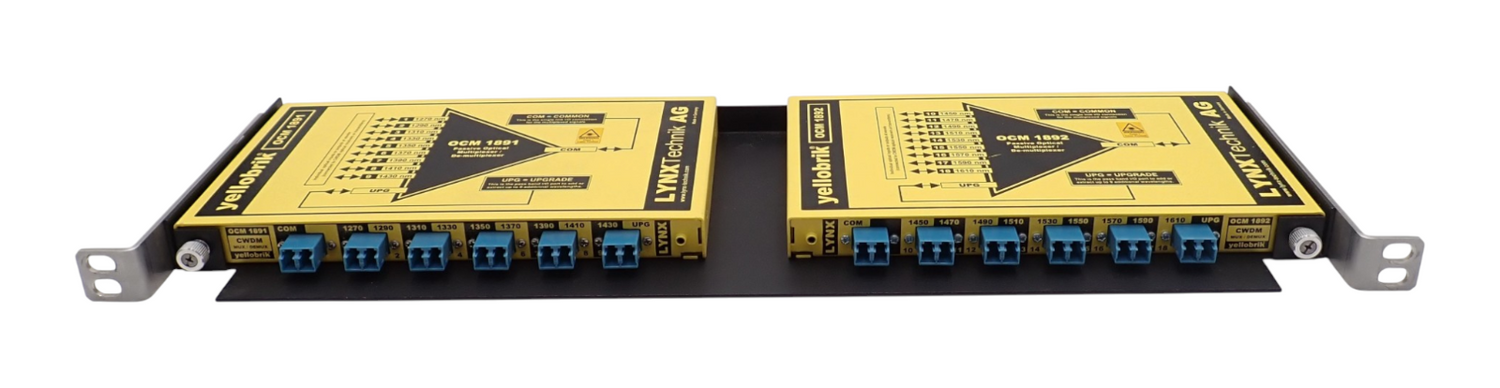

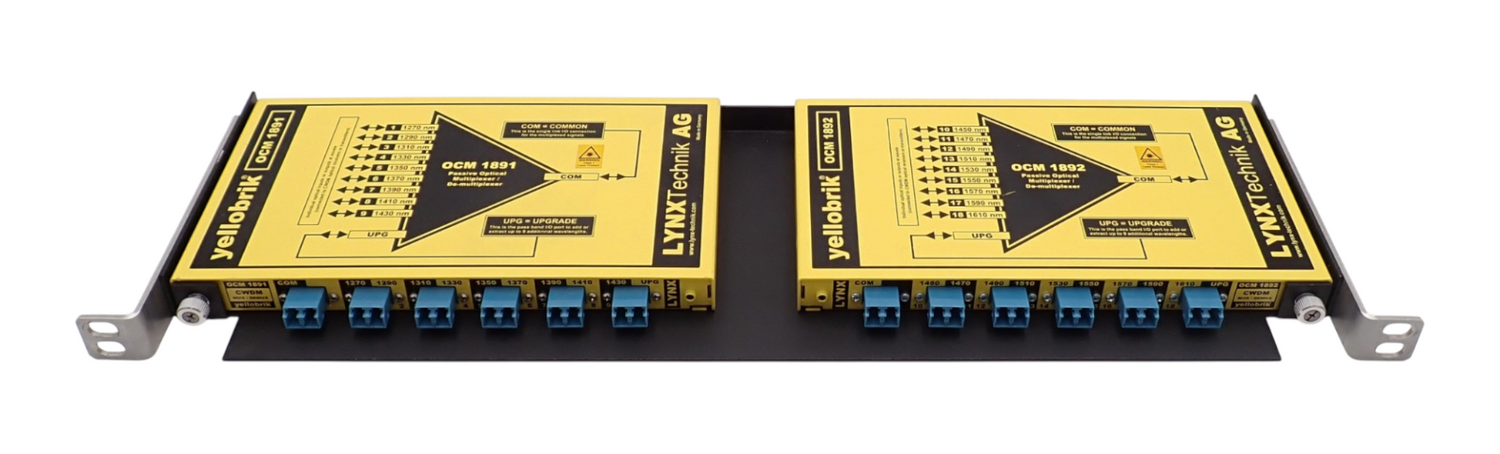

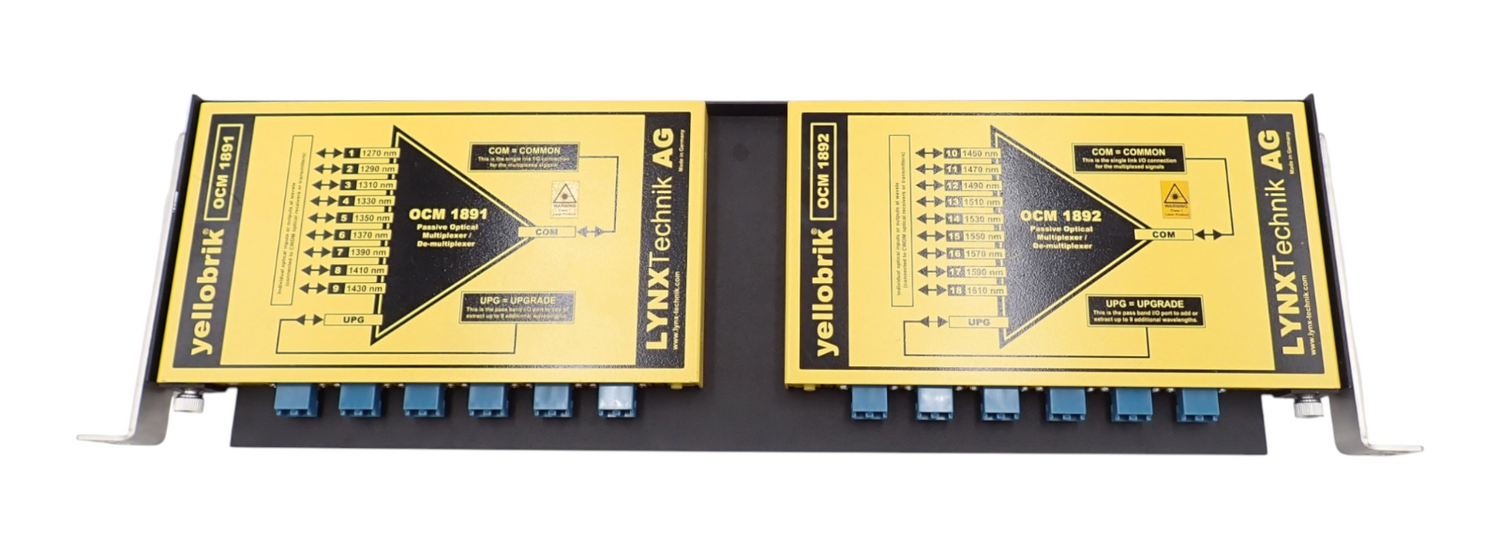

- 1 x Lynx Technik RFR-1018 Rack Mount Frame 0.5U 19" for Passive Fibre Optic Modules
Descriptions

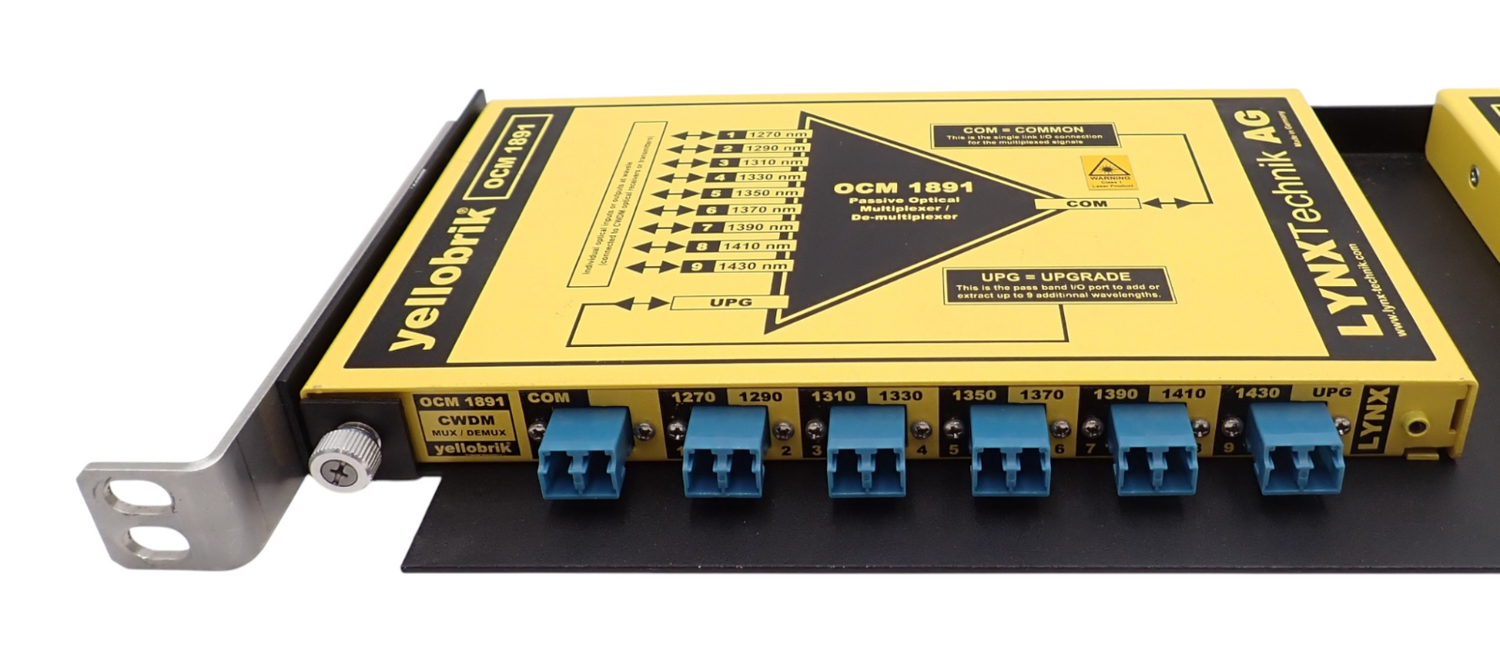

The LYNX Technik yellobrik OCM 1891 and OCM 1892 are compact, passive CWDM (Coarse Wavelength Division Multiplexing) optical multiplexer/demultiplexer modules. They allow broadcast and ProAV professionals to combine and transmit multiple independent signals over a single fiber-optic cable, eliminating the need to run separate fibers for each feed
Both modules can operate either standalone or be combined to create a high-capacity fiber network:

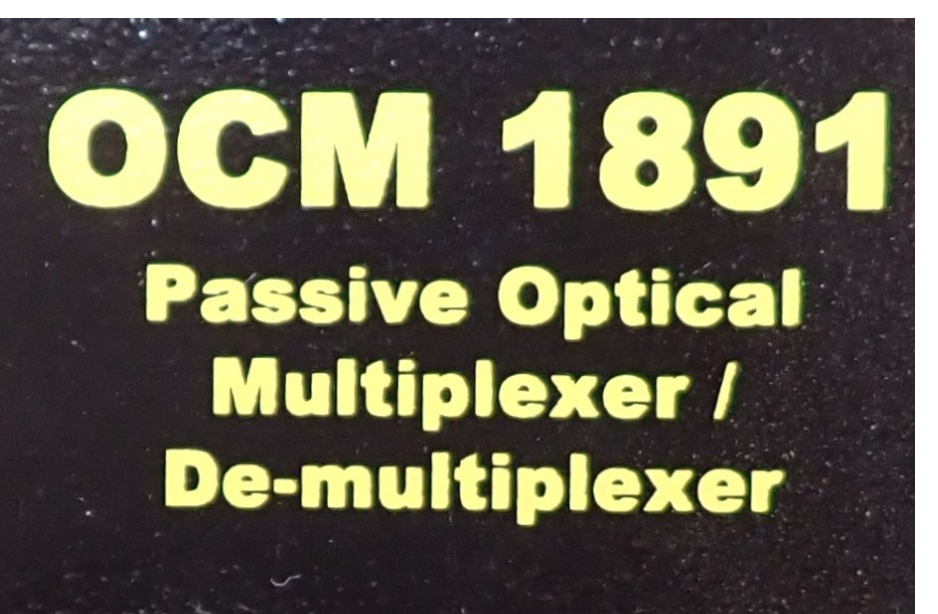

- OCM 1891: Combines/separates up to 9 distinct channels over wavelengths ranging from 1270 nm to 1430 nm.

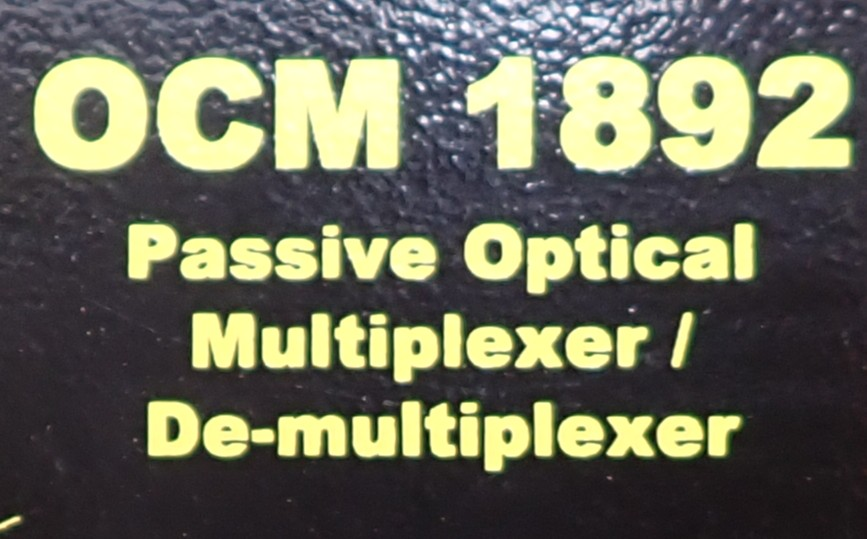

- OCM 1892: Works similarly, but manages 9 distinct channels in the higher 1450 nm to 1610 nm range.
Key Capabilities
- 18-Channel Expansion: Both devices feature an integrated UPG (Upgrade) port, which allows you to seamlessly daisy-chain the OCM 1891 and OCM 1892 together. This creates a robust 18-channel solution utilizing a single strand of single-mode fiber.
- Passive Operation: Because they operate passively, these Canford Audio modules require no external power source, making them highly reliable and suitable for remote field applications.
- Plug-and-Play: They feature standard LC/PC optical connections and are compliant with the ITU-T G.694.2 wavelength standard
