NEW Crestron C2IR-8 8 Port Infrared/Serial Output Card for Y-Bus Expansion Slot
£114.00
£95.00 ex VAT
Unit price
/
Unavailable
NEW Crestron C2IR-8 8 Port Infrared/Serial Output Card for Y-Bus Expansion Slot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Crestron
Type: Lan Card
External Interfaces: Terminal Block
Number of Ports: 8
Model: C2IR-8
MPN: C2IR-8,6500429
Compatible Port: Y-Bus Card Slot
NEW Crestron C2IR-8 8 Port Infrared/Serial Output Card for Y-Bus Expansion Slot
Model: CNXRY-8
P/N: 6500792
New in Open Box
Included:
- 1 x NEW Crestron C2IR-8 8 Port Infrared/Serial Output Card for Y-Bus Expansion Slot
Overview:

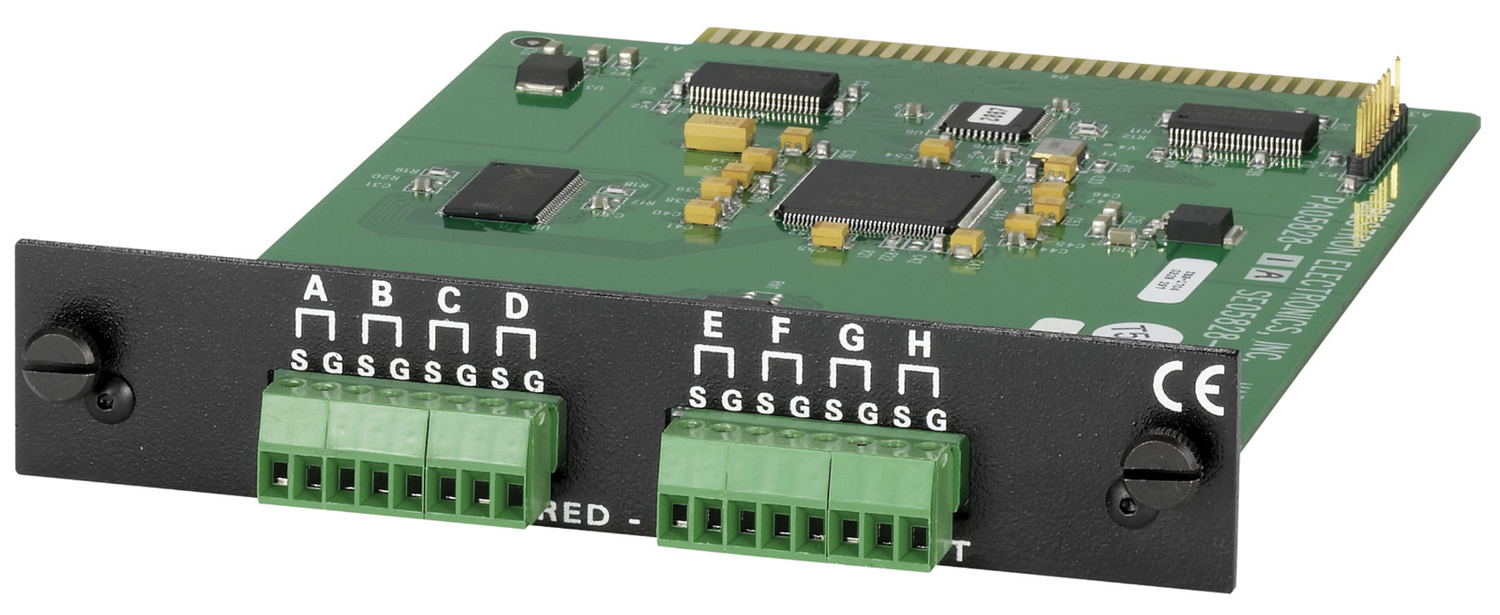

The C2IR-8 installs in any Y-Bus expansion slot of a 2-Series control system to provide eight ports for infrared (IR) or 1-way serial communication and control.
Specifications:
| Connectors | ||
| INFRARED-SERIAL OUTPUT A - H | (8) 2-pin 3.5mm detachable terminal blocks; IR/Serial output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud; Individual signal generator per port, allowing simultaneous firing of all ports |
|
| Power Requirements | ||
| Cresnet Power Usage | 3 Watts (0.125 Amps @ 24 Volts DC) | |
| Environmental | ||
| Temperature | 41° to 113°F (5° to 45°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Construction | ||
| Y-bus expansion card, occupies (1) Y-bus card slot in a 2-Series control system | ||
| Dimensions | ||
| Height | 0.98 in (2.49 cm) | |
| Width | 5.00 in (12.70 cm) | |
| Depth | 6.78 in (17.21 cm) | |
