Crestron

NEW Crestron C2N-IVDS24X24 Intercom Video Distribution Switcher 24x24 RCA RJ-45

  • Pre-owned
£57.00
£47.50 ex VAT

Product overview

Brand: Crestron

Compatible Brand: For Crestron

Type: Video Distribution Switcher

Connectivity: RE-45,RCA

MPN: C2N-IVDS24X24,6500561

NEW Crestron C2N-IVDS24X24 Intercom Video Distribution Switcher 24x24 RCA RJ-45

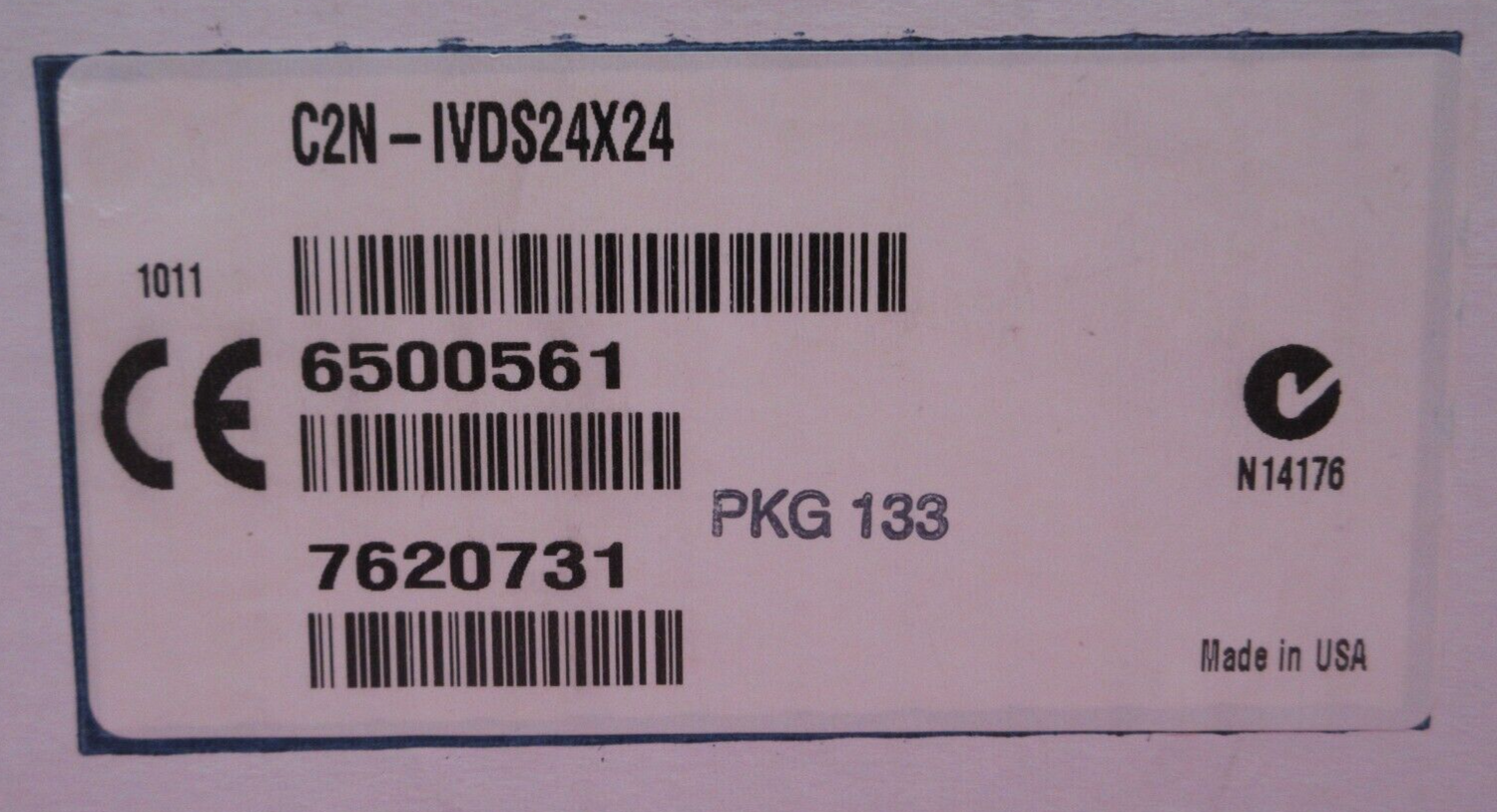

Model: C2N-IVDS24X24
P/N: 6500561


NEW



Included:
  • 1 x NEW Crestron C2N-IVDS24X24 Intercom Video Distribution Switcher 24x24 RCA RJ-45
Overview:

The C2N-IVDS24X24 Intercom Video Distribution Switcher provides a convenient facility for the distribution of security cameras and other video sources throughout the home or office over inexpensive CAT5E cable. A perfect companion to the C2N-IADS30X24 Intercom Audio Distribution Switcher, the C2N-IVDS24X24 distributes video signals to up to 16 touchpanels from any of 16 cameras and 8 video door stations. It also integrates with Crestron's CNX-PVID8X3 and CNX-PVID8X4 Video Distribution Switchers to allow extensive sharing of video resources among touchpanels and television monitors.

The C2N-IVDS24X24 is built around a fully programmable 24 X 24 video crosspoint matrix, providing the complete freedom to route any input to any output. Sixteen unbalanced composite inputs are provided to accept video signals from cameras and other video sources. In addition, 8 CAT5 video inputs accommodate the balanced signals from up to 8 video door stations. Door station and entry gate cameras are easily implemented using the C2N-IIF Intercom Interface (sold separately).

A total of 16 CAT5 balanced video outputs are provided to support up to 16 touchpanels. Crestron offers numerous touchpanel models equipped with balanced video capability for use with the C2N-IVDS24X24. Eight unbalanced composite outputs are also provided to enable direct connection to video monitors, recorders, and other devices.

Using any combination of unbalanced inputs and outputs, the C2N-IVDS24X24 can be interconnected with Crestron's CNX-PVID8X3 and CNX-PVID8X4 video distribution switchers to enable the sharing of whole-house video resources. Additional system configurations may be possible by interfacing with various Crestron CAT5 video products via the unit's CAT5 balanced video ports. (Limitations may apply; please review all relevant documentation thoroughly.)

The C2N- IVDS24X24 supports both NTSC and PAL formats. Each CAT5 input includes software programmable input compensation to maximize the quality of the balanced signal. The C2N-IVDS24X24 functions as a slave device to any 2-Series control system communicating via the Cresnet control network.


Video
Signal Types Composite video
Video Formats 480i (NTSC) and 576i (PAL)
Bandwidth 20MHz, -3dB (unbalanced); 10MHz, -3dB (CAT5)
Crosstalk ≤ -50dB @ 5MHz
Isolation ≥ 55dB @ 5MHz
Connectors
VIDEO IN 1 – 16 (16) RCA female;
Composite video inputs;
Input Impedance: 75 ohms;
Input Level: 1 Vp-p nominal
VIDEO IN 17 - 24 (8) 8-pin RJ45 female, shielded;
CAT5 balanced video input ports (composite only);
Input Impedance: 100 ohms;
Connect to C2N-IIF interfaces, or any “CH” CAT5 video output ports
VIDEO OUT 1 - 16 (16) 8-pin RJ45 female, shielded;
CAT5 balanced video output ports (composite only);
Output Impedance: 100 ohms;
Maximum CAT5 distance: 350 feet;
Connect to compatible Crestron touchpanels, or any “CH” CAT5 video input ports
VIDEO OUT 17 - 24 (8) RCA female;
Composite video outputs;
Output Impedance: 75 ohms;
Output Level: 1 Vp-p nominal
NET (1) 4-pin 3.5mm detachable terminal block;
Cresnet slave port, connects to Cresnet control network
Ground (1) 6-32 screw, chassis ground lug
Buttons & LED Indicators
PWR (1) green LED, indicates 24 Volts DC power supplied from Cresnet control network
NET (1) yellow LED, indicates communication with Cresnet system
SETUP (rear) (1) miniature pushbutton and (1) red LED, used for touch-settable ID (TSID)
Power Requirements
Cresnet Power Usage 12 Watts (0.5 Amp @ 24 Volts DC)
Environmental
Temperature 41° to 104°F (5° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Enclosure
Black metal, 2U 19-inch rack-mountable (rack ears included)
Dimensions
Height 3.56 in (9.04 cm);
3.47 (8.81 cm) without feet
Width 17.03 in (43.25 cm);
19.0 in (48.26 cm) with ears
Depth 8.67 in (22.02 cm)
Weight
3.4 lb (1.5 kg)
