NEW Crestron CNXRY-8 8 Relay Card for Y-Bus Expansion Slot 6500792
£68.40
£57.00 ex VAT
Unit price
/
Unavailable
NEW Crestron CNXRY-8 8 Relay Card for Y-Bus Expansion Slot 6500792 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Crestron
Type: Lan Card
External Interfaces: Terminal Block
Number of Ports: 8
Model: CNXRY-8
MPN: CNXRY-8,6500792
Compatible Port: Y-Bus Card Slot
NEW Crestron CNXRY-8 8 Relay Card for Y-Bus Expansion Slot 6500792
Model: CNXRY-8
P/N: 6500792
New in Open Box
Included:
- 1 x NEW Crestron CNXRY-8 8 Relay Card for Y-Bus Expansion Slot 6500792
Overview:

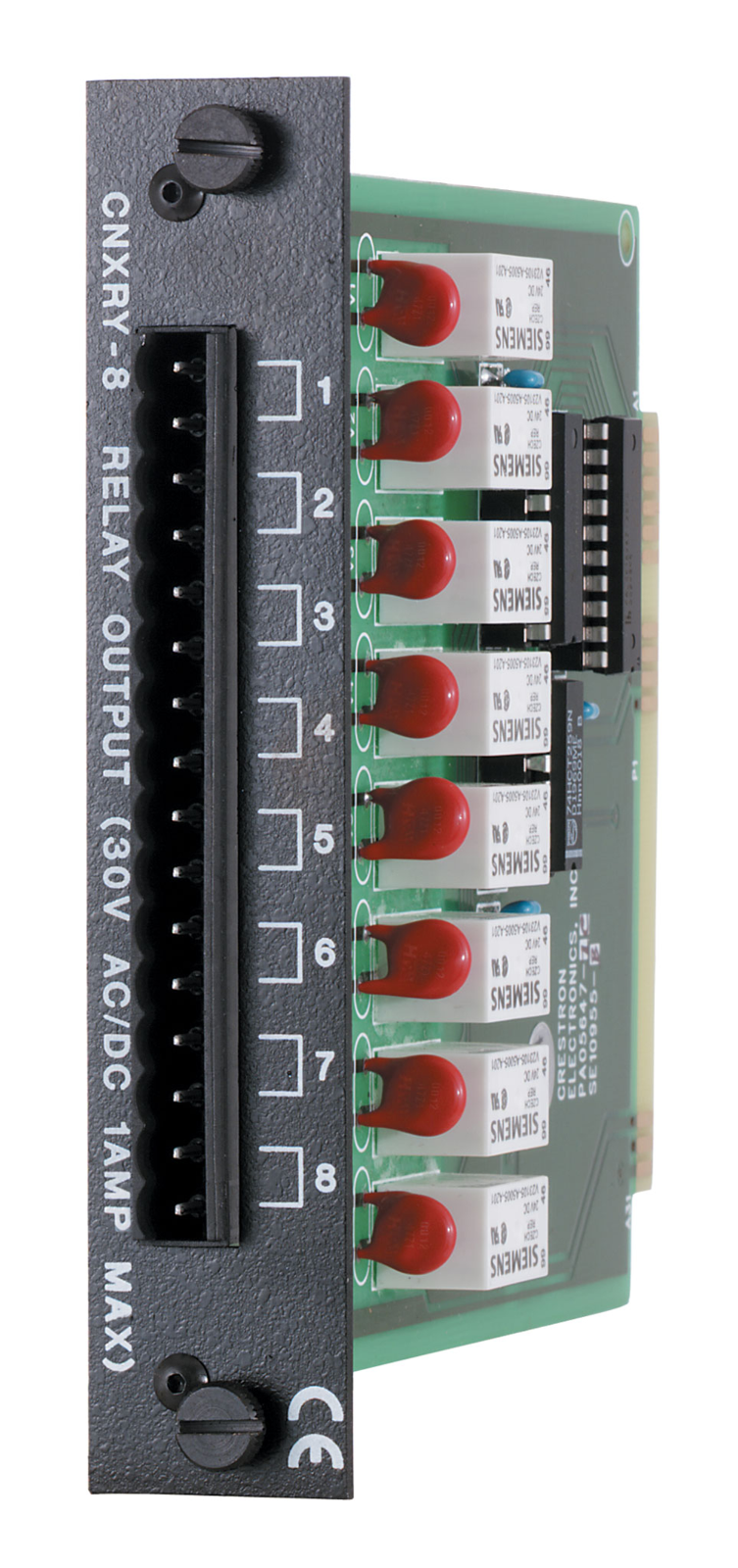

The CNXRY-8 installs in any Y-Bus expansion slot of a 2-Series control system to provide eight isolated, low-voltage relay closures.
Specifications:
| Connectors | ||
| RELAY OUTPUT 1 - 8 | (1) 16-pin 5mm detachable terminal block comprising (8) normally open, isolated (form ‘C’) relays; Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression across contacts |
|
| Power Requirements | ||
| Cresnet Power Usage | 3 Watts (0.125 Amps @ 24 Volts DC) | |
| Environmental | ||
| Temperature | 41° to 113°F (5° to 45°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Construction | ||
| Y-bus expansion card, occupies (1) Y-bus card slot in a 2-Series control system | ||
| Dimensions | ||
| Height | 0.98 in (2.49 cm) | |
| Width | 5.00 in (12.70 cm) | |
| Depth | 6.78 in (17.21 cm) | |
