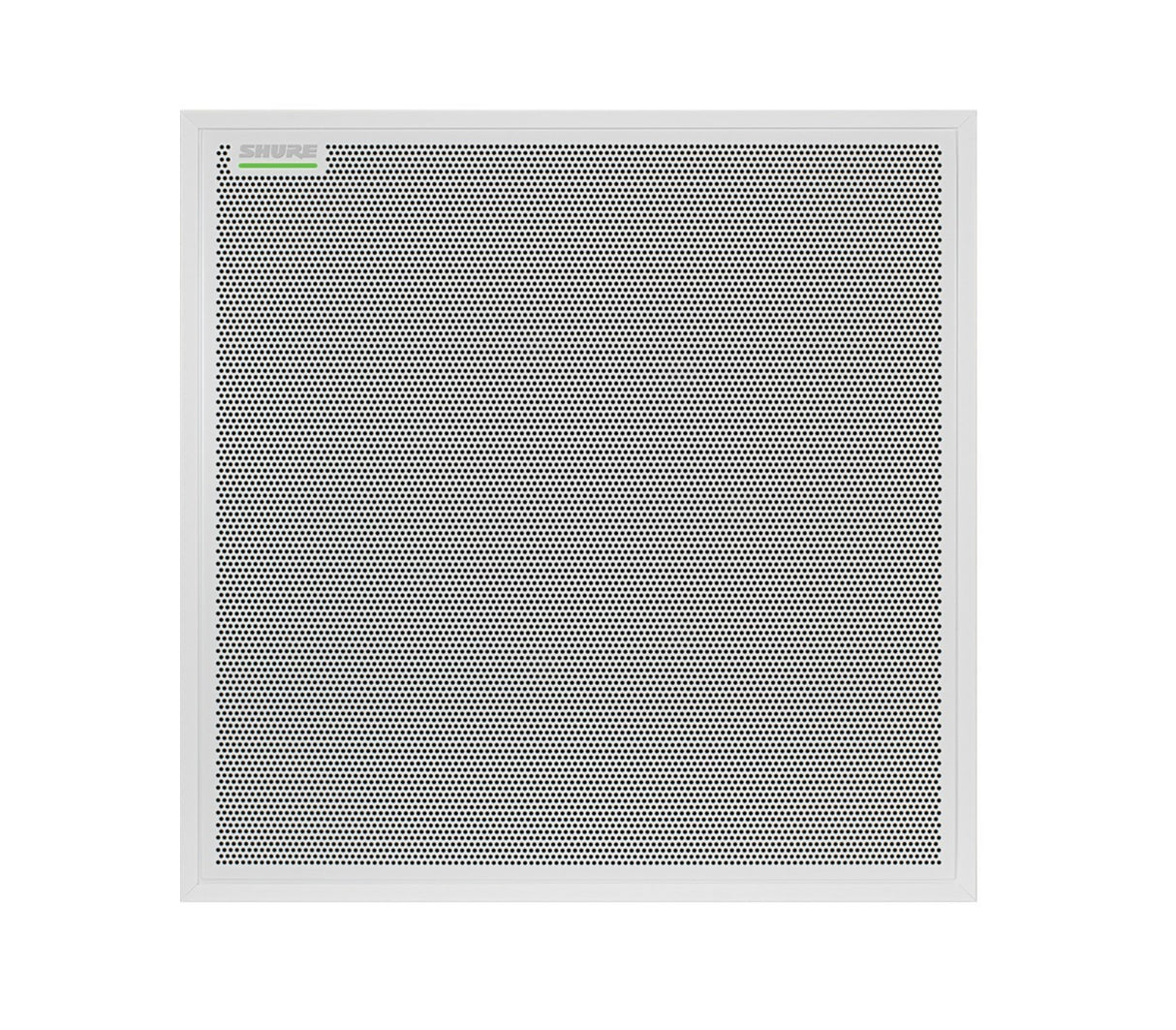

New Shure MXA910W-60CM Microflex Advance PoE Steerable Ceiling Array Microphone

Brand: Shure

Form Factor: Ceiling Fan

Power Source: PoE

Model: MXA910W-60CM

MPN: MXA910W-60CM MXA910W

Country of Origin: China

Colour: Black

Included:

• 1 x New Shure MXA910W-60CM Microflex Advance PoE Steerable Ceiling Array Microphone

Specifications:

Coverage & DSP:

• Steerable coverage with up to 8 independently adjustable pickup lobes
• Autofocus technology automatically adjusts lobe position in real time
• Built-in IntelliMix DSP (automatic mixing, echo cancellation, noise reduction)
• 10 channels total: 8 independent, 1 automix, 1 AEC reference

Audio & Network:

• Dante / AES67 digital output
• 48 kHz / 24-bit audio resolution
• Frequency response: 180 Hz – 17 kHz
• Single Ethernet connection with PoE
• LED mute sync with Zoom Rooms, Microsoft Teams, and Skype
• AES-256 encryption supported (with compatible hardware)
• Max SPL: 93.25 dB
• SNR: 83 dB (A-weighted)
• Self-noise: 11 dB SPL-A

Build & Mounting:

• Plenum-rated (UL2043) and IP5X dust protection
• Dimensions: 593.8 × 593.8 × 54.69 mm (60 cm grid size)
• Supports ceiling grid, VESA mount, suspension, or hard ceiling install
• Available in white, black, or aluminum (paintable grille)
• Controlled via web browser or Shure Designer software
