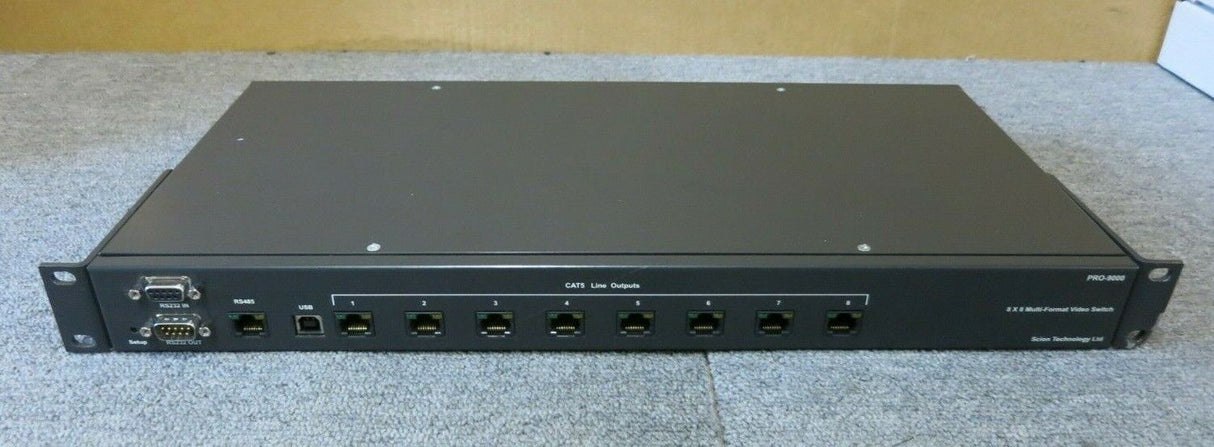

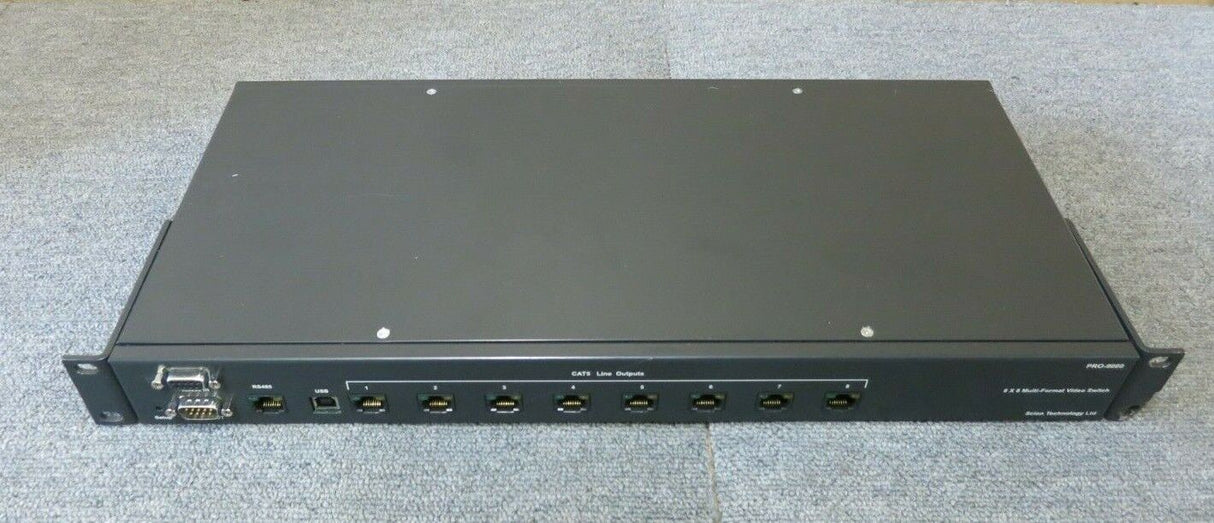

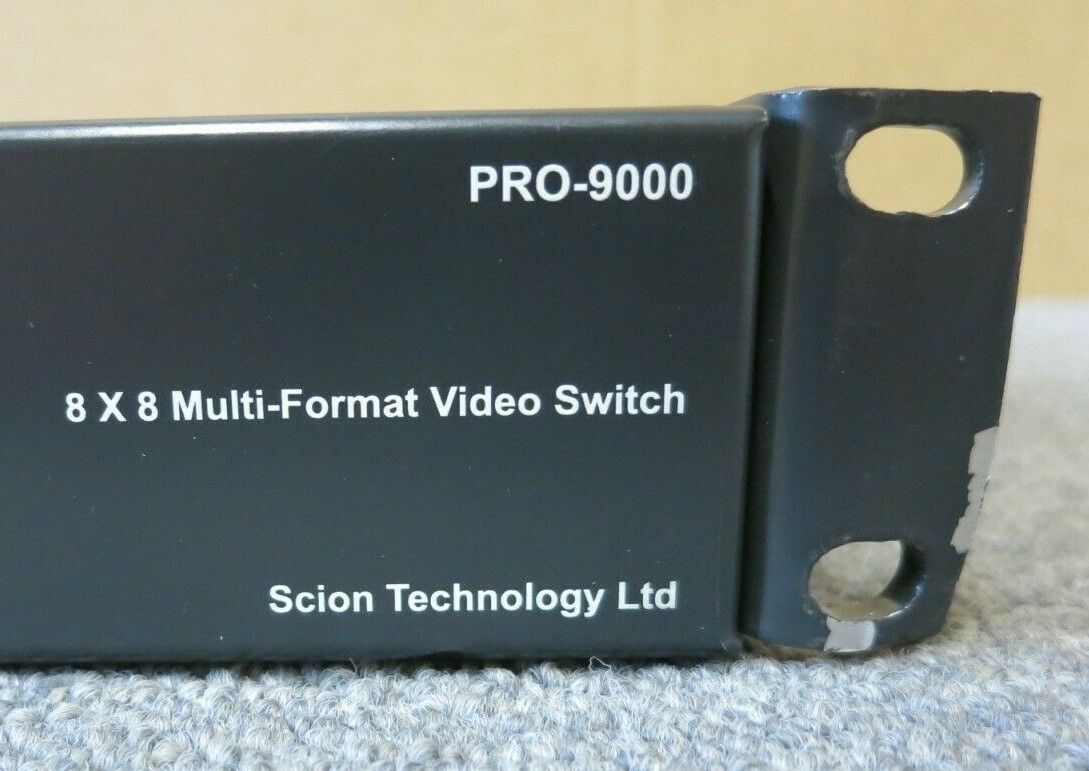

Scion Pro-9000 Multi-format Video Audio 8 x 8 Distribution System CAT5e/6
Pre-owned
Scion Pro-9000 Multi-format Video Audio 8 x 8 Distribution System CAT5e/6 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
MPN: Pro-9000
Brand: Scion
Scion Pro-9000 Multi-format 8 x 8 Distribution system (With looped Outputs and IR control)
In good condition and full working order
Supplied with power cord
VGA over Cat5 - 8x8 switch
SCION PRO 9000 8x8 Multi-Format Switch for CAT5e/6 cable
UXGA, Component HD, RGBs, S-Video, Composite Video, Stereo Audio, RS232 and Infrared
Compact 19" x 1RU chassis design with integral power supply
Accepts UXGA, Component HD, RGBs, S-Video and Composite Video
RS232 (Full Duplex) Interface for all 8 ports
Infrared control for input selection
Stereo Audio
Automatic adjustment for cable length and skew
Server software for crosspoint selection and display control
Up to 300m CAT5e/6 Cable
General Description
Housed in a 1RU x 19” chassis and powered by an internal switch mode power supply, the PRO-9000 will cater for all your video, Audio and RS232 switching applications. It’s unique video circuit design handles inputs of all video standards including PAL, Secam, NTSC and UXGA. All variations of video are accepted as an input to the matrix including component HD, VGA, RGB, RGB-S, S-Video and Composite. All video and stereo audio inputs have local or loop through connectors enabling multiple chassis to be stacked increasing the number of users in blocks of eight.
The 9000 series includes various receiver options making this system flexible and cost effective for all your media distribution installations. Using internal video test patterns, the receiver has the ability to self equalise for distances up to 225m and provide the appropriate delay (skew) to video signals improving signal quality significantly. Dual video and audio outputs are also provided for installations where displays are mounted back to back and RJ45 in/out connectors allow receivers to be daisy chained. Up to 10 in-line taps (PRO-9703) can be driven with this type of installation.
Channel selection is either by means of a remote control IR handset used in conjunction with the PRO 9001 receiver or via the user’s PC screen. The latter requires a PC running web server software connected to the PRO 9000 chassis via an RS232 port. The same PC allows the system administrator to bar or force channels at individual outputs.
