Spirent DLS 5405 VDSL2 Noise Injection Unit + DLS-5P02 Power Supply

£85.50
£71.25 ex VAT

Pre-owned


Product overview

Options Included: N/A
Type: VDSL2 Noise Injection Unit
MPN: DLS 5405
Brand: Spirent
Bundle Description: Spirent DLS 5405 VDSL2 Noise Injection Unit, DLS-5P02 Power Supply

Spirent DLS 5405 VDSL2 Noise Injection Unit + DLS-5P02 Power Supply

In good condition and full working order

Included:
1x Spirent DLS 5405 VDSL2 Noise Injection Unit
1x DLS-5P02 Power Supply

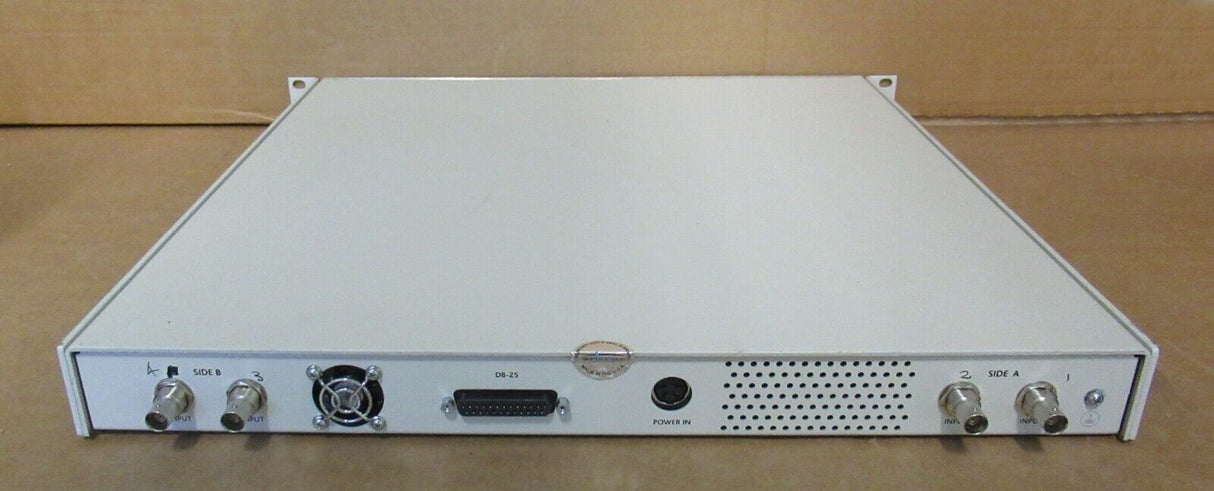

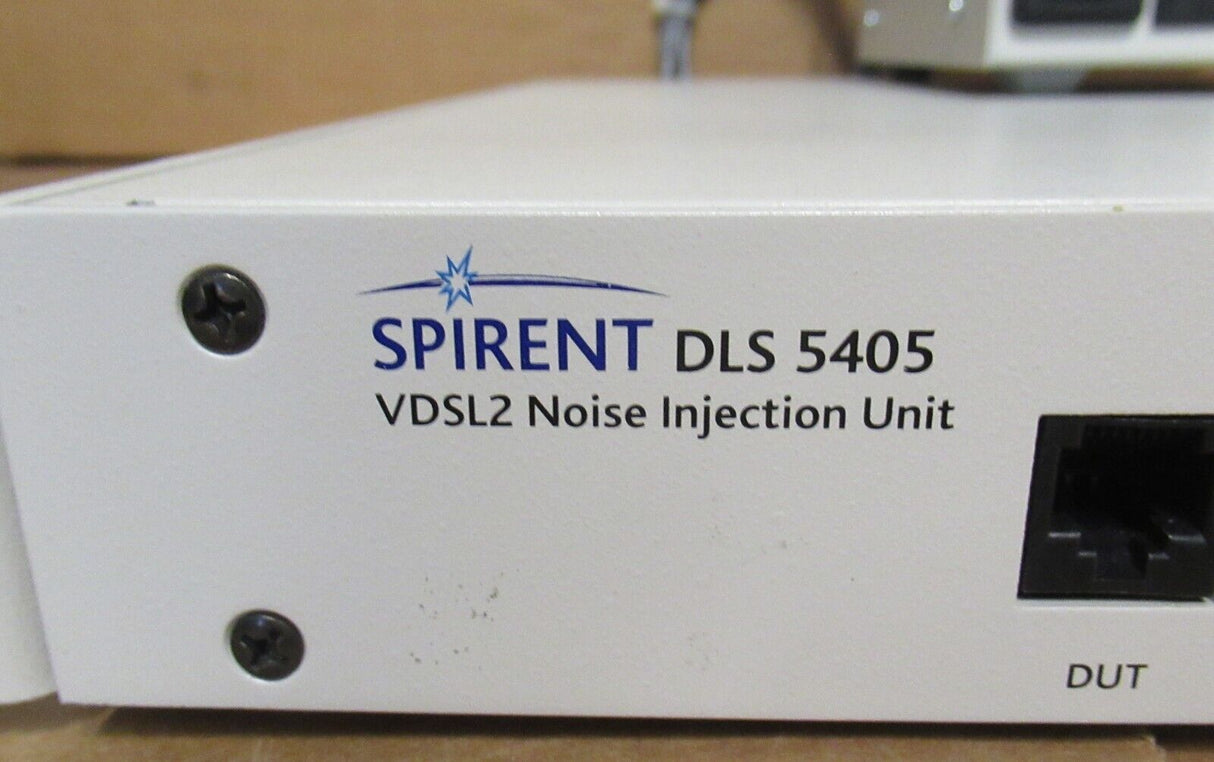

The DLS 5405 is the interface between a noise generator and a wireline simulator. It injects separate VDSL2 noise signals at either end of a wireline simulator. The DLS 5405 is 1U high and can be mounted in a standard 19" rack.

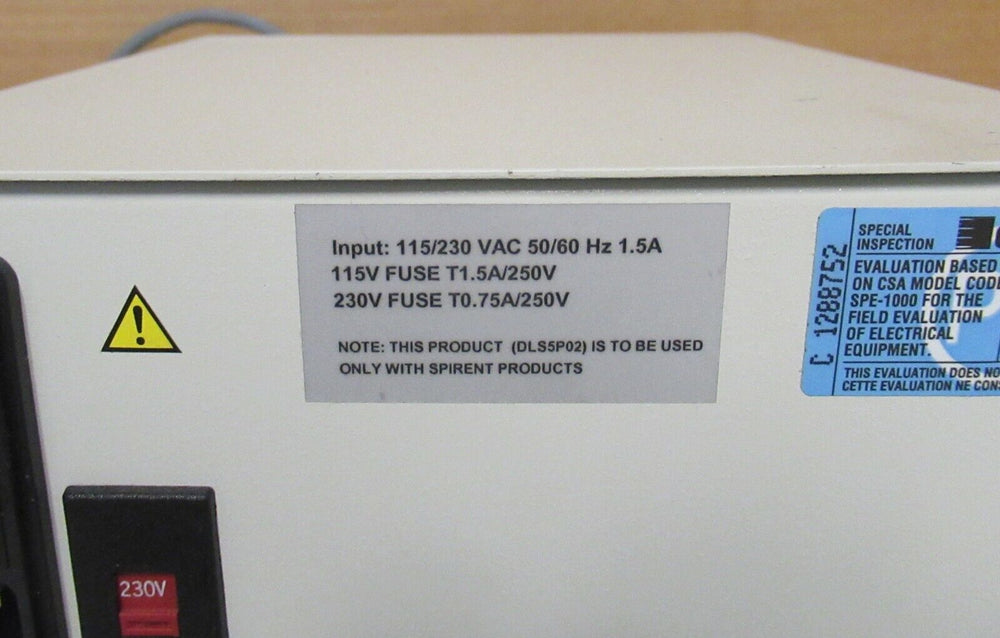

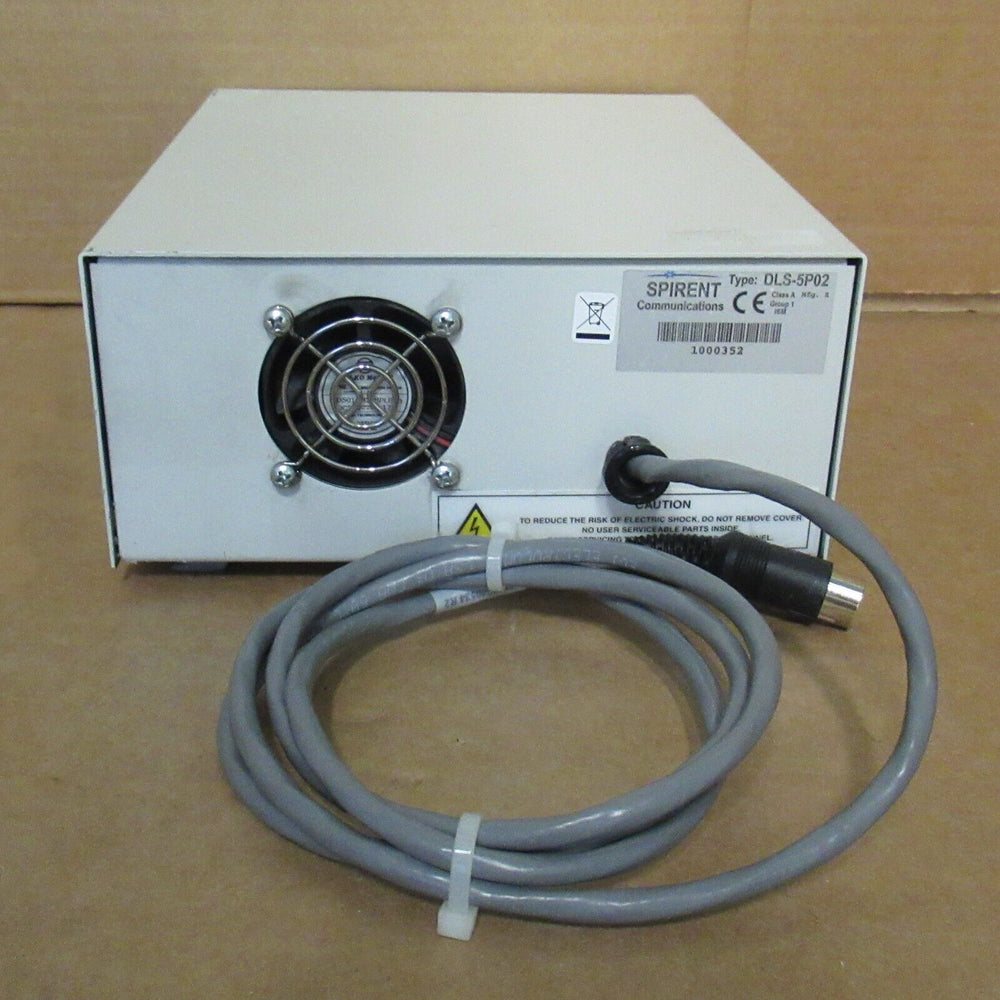

DLS-5P02 Power Supply

Input: 115/230 VAC 50/60Hz 1.5A
115V FUSE T1.5A/250V
230V FUSE T0.75A/250V

Features:
Up to 40 MHz bandwidth noise injection (differential outputs).
Maximum output level of -3 dBm for a signal with a crest factor of 5.0.
Two RJ-45 jacks per side, one for the DUT (Device Under Test), one for the wireline simulator.
Four 50Ω unbalanced BNC noise inputs

Specifications:
Number of Injection Points: 2
Injection Mode: Differential
Bandwidth: 4 kHz to 40 MHz
Noise Floor:
4 kHz to 100 kHz: < -140 dBm/Hz
100kHz to 40MHz < -150 dBm/Hz
Noise Inputs: 4 (two for each side)
Input Mode: Unbalanced
Input Impedance: 50 Ω
Frequency Response (with calibration load): relative to 20 MHz
Uncompensated: < ±0.5 dB from 10 kHz to 30 MHz
Injector Insertion Loss: < 0.1 dB (4 kHz to 40 MHz)
Maximum Signal Output: -3 dBm (per output) assuming a crest factor of 5.0
Maximum Wireline Voltage: 200V DC + peak AC
