New arrival

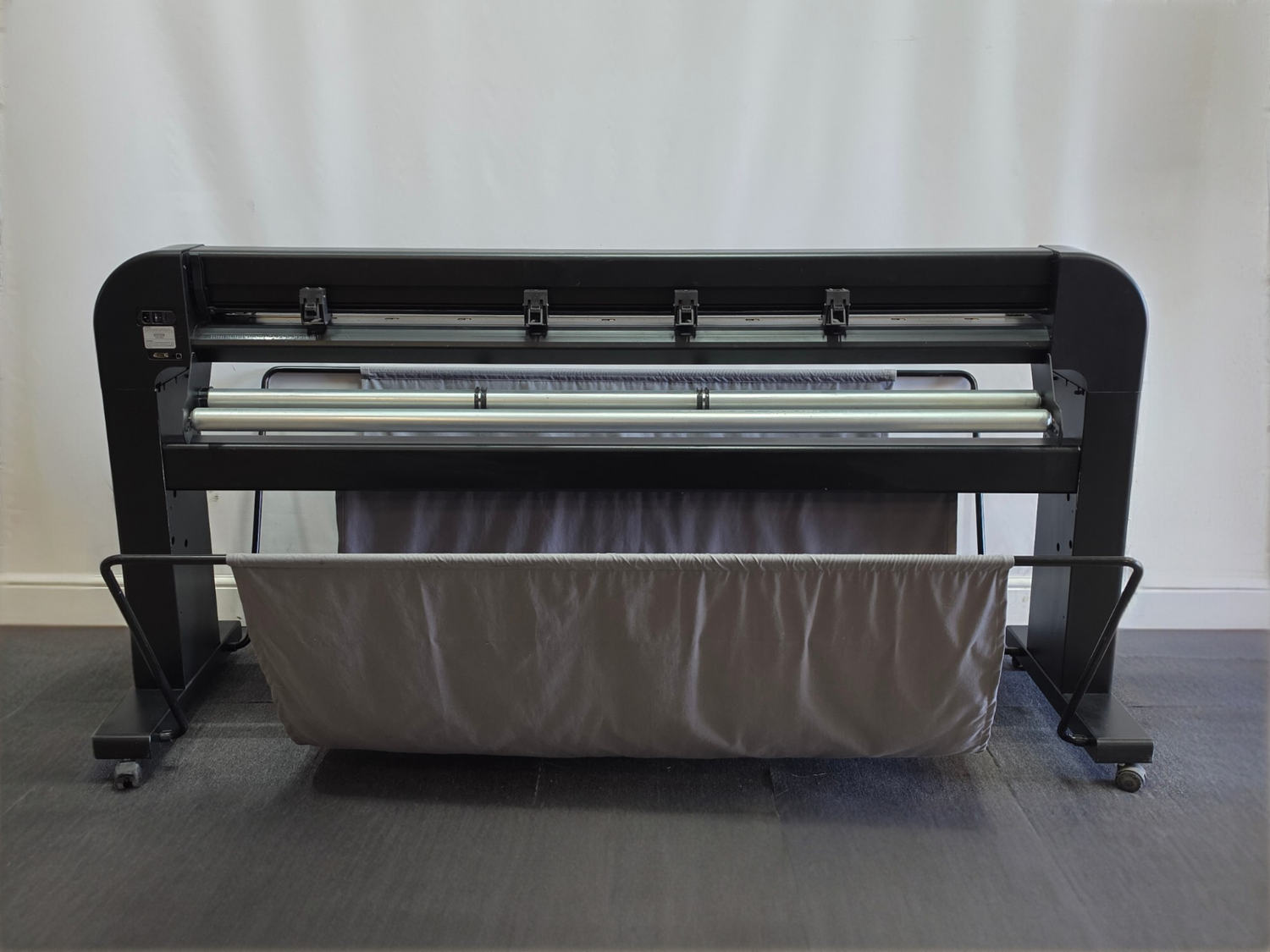

Summa S Class S160T T Series 1600mm 63" Tangential Vinyl Sign Cutter & Plotter
£4,332.00
£3,610.00 ex VAT
Unit price
/
Unavailable
Summa S Class S160T T Series 1600mm 63" Tangential Vinyl Sign Cutter & Plotter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Cut Capacity: 1600mm
Brand: Summa
Type: Vinyl Cutter/Plotter
Operation Type: Electric
Cut Length: 1600mm
Year Of Manufacture: February 2006
Material: Steel

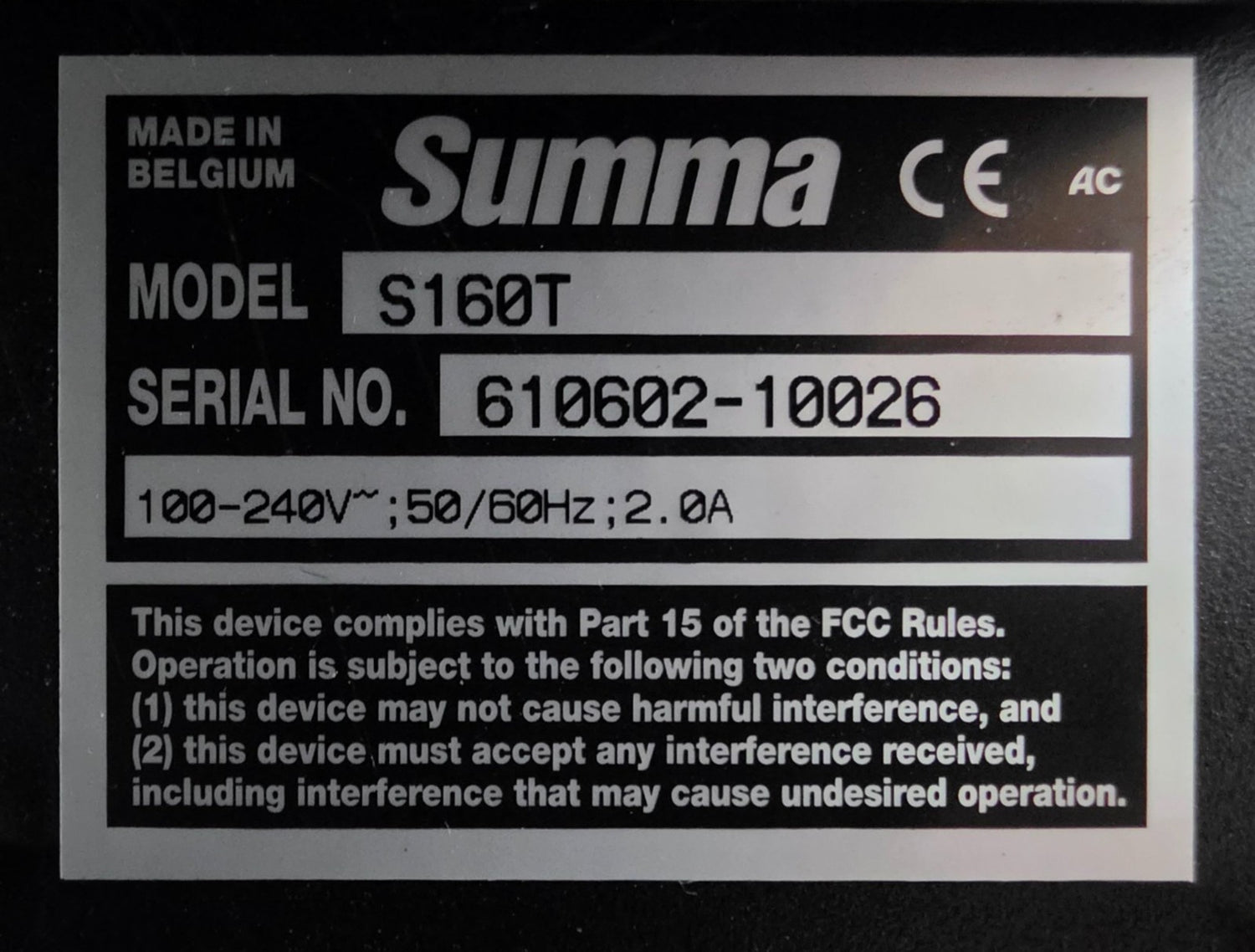

MPN: S160T, S160 T, S Class 160, T-Series 1600mm
Paper Cutter/Trimmer Type: Tangential Cutter
Country of Origin: Belgium
Colour: Black
Summa S Class S160T T-Series 1600mm 63" Tangential Vinyl Sign Cutter & PlotterP/N: S160T
In Good Condition and In Full Working Order
Product Overview

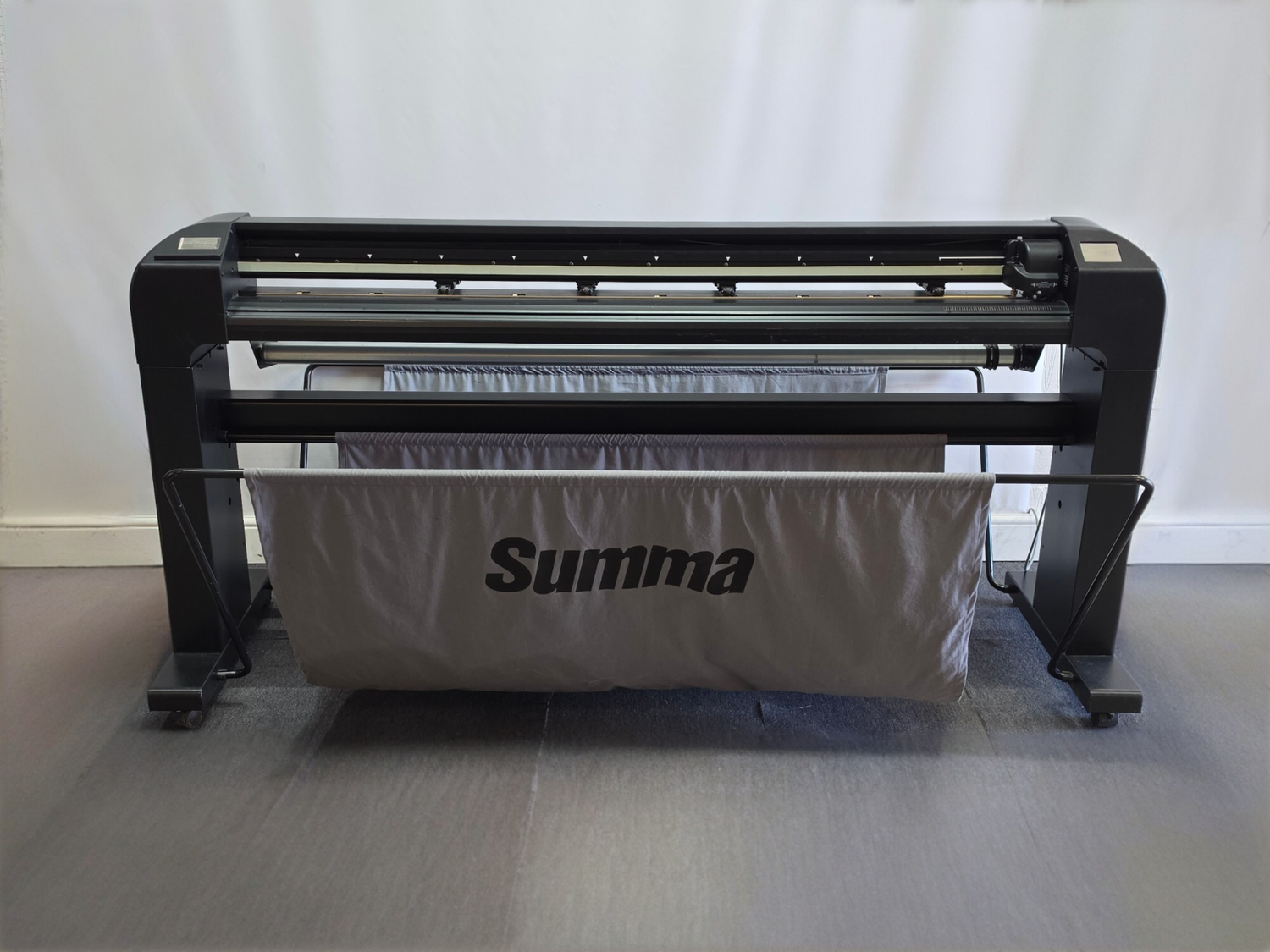

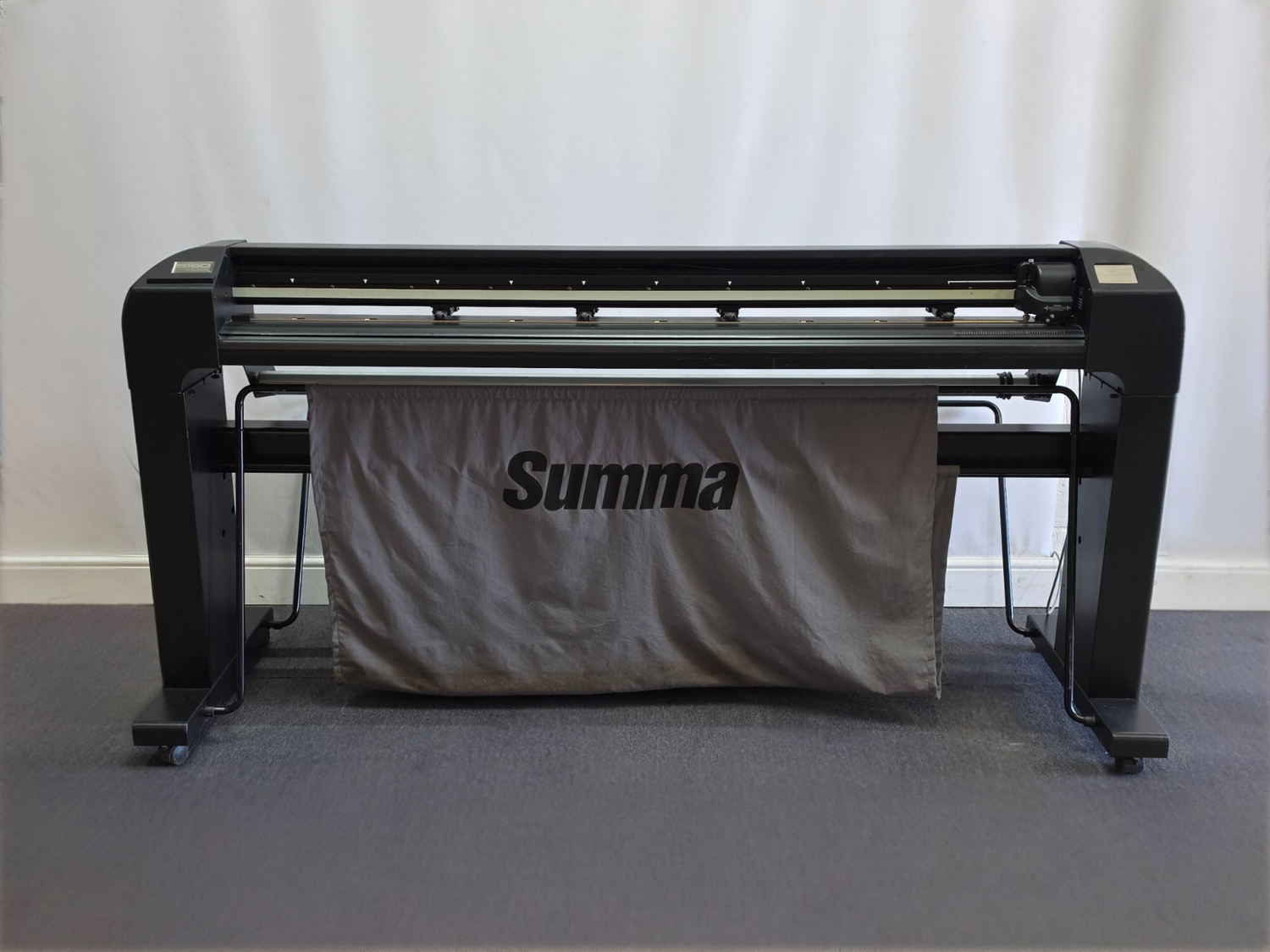

The Summa S Class 160 T-Series (S160T) is a 1600mm, commercial-grade tangential vinyl cutter designed for high-precision, high-volume print finishing, including PPF and large graphics. It features a motorized, actively controlled cutting head and advanced OPOS optical alignment for precise contour cutting, accepting media widths up to 1680mm

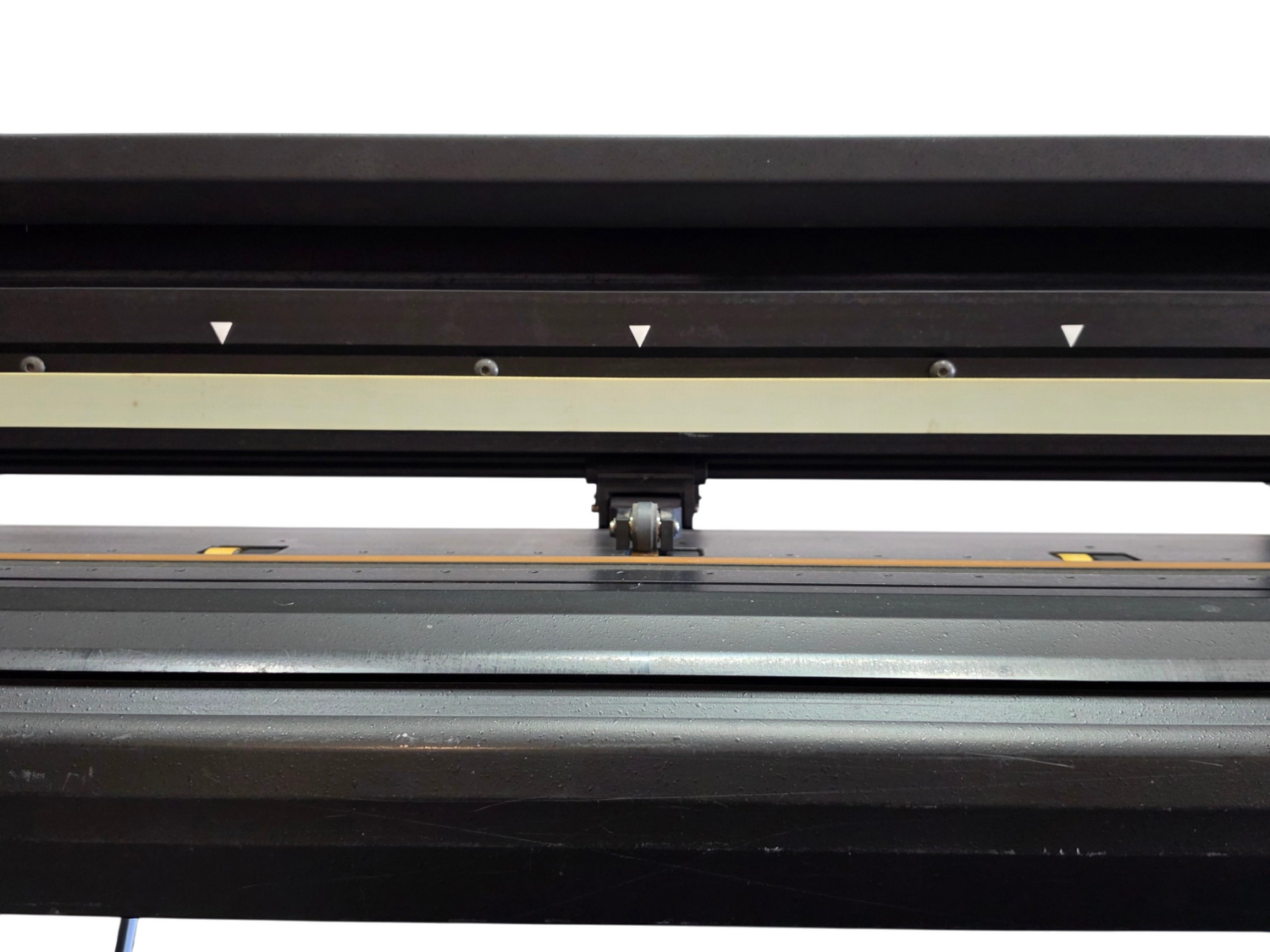

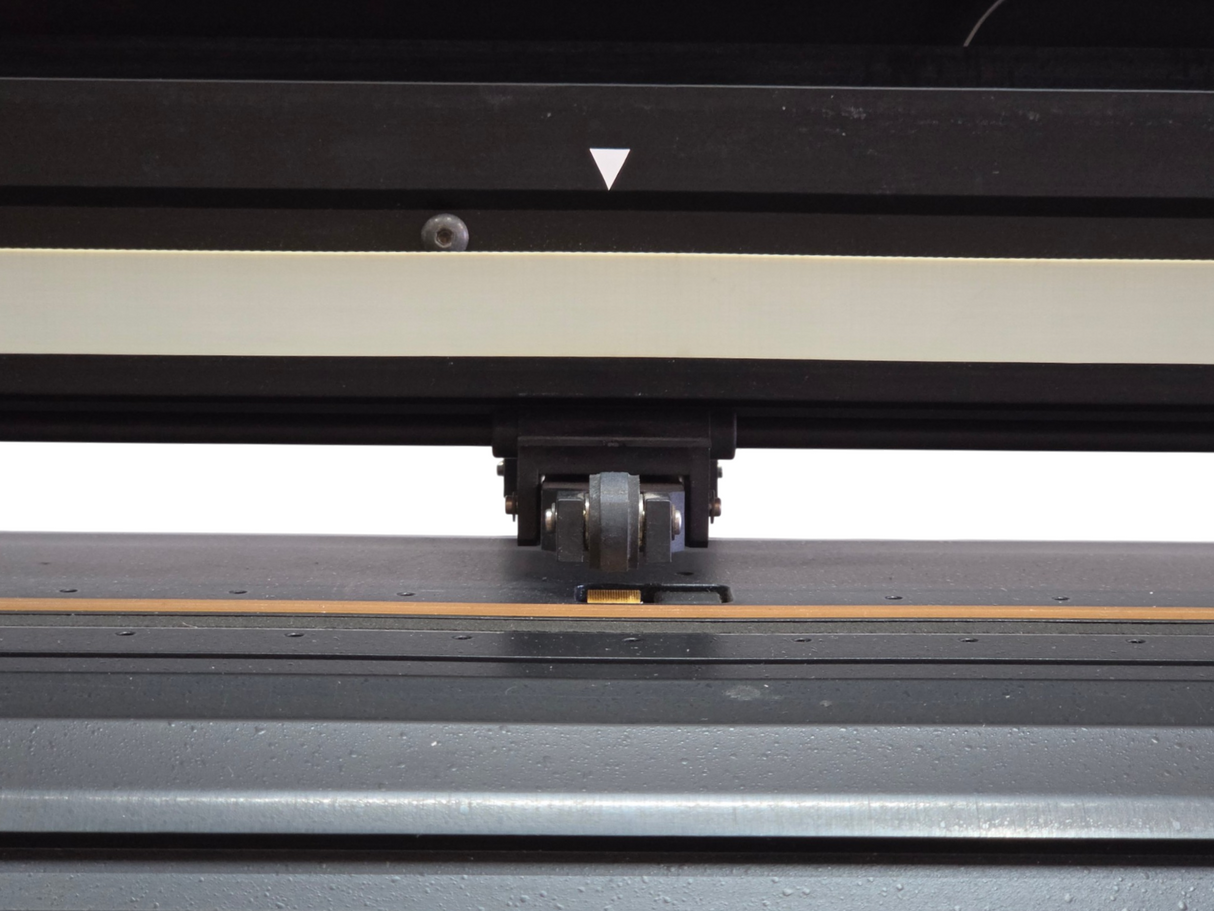

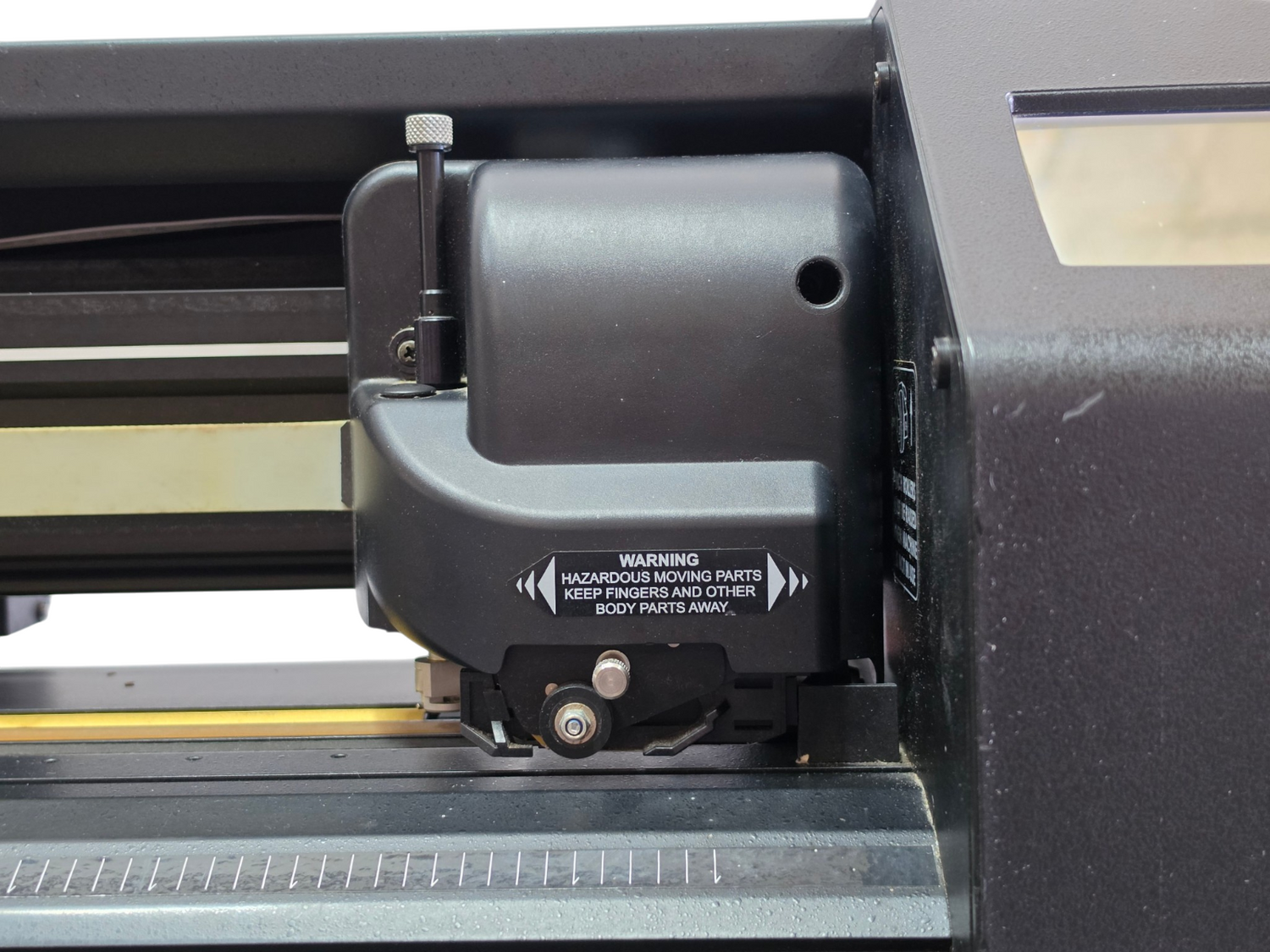

True Tangential Cutting Head Technology
Features an active, motorized blade rotation mechanism. The cutter physically lifts, rotates, and lowers the blade inside tight angles and sharp corners. This completely eliminates vinyl tearing, ensures perfect weeding on intricate designs, and easily processes thick or heavy-duty materials where standard swivel knives fail.
FlexCut Multi-Depth Perforation Mode
Features an advanced dual-pressure cutting system. The tool alternates continuously between a high-pressure cut through both the vinyl and backing liner and a low-pressure bridge section. This allows you to create fully perforated, pop-out decal sheets without causing any damage to the underlying cutting strip.
OPOS X Optical Positioning Sensor
Features an integrated light sensor mounted directly onto the tool carriage. The automated registration system scans printed registration marks to track and calculate data variations. It instantly corrects for graphic scaling, media skew, and print distortion across massive contour cutting production runs.
Automatic Separation Sheet Cut-Off
Features an integrated mechanical razor knife assembly housed inside the tool carriage. Upon receiving a job completion command or manual panel input, the machine executes an automated cross-cut across the media roll width. This cleanly slices and releases the finished job from the main roll.

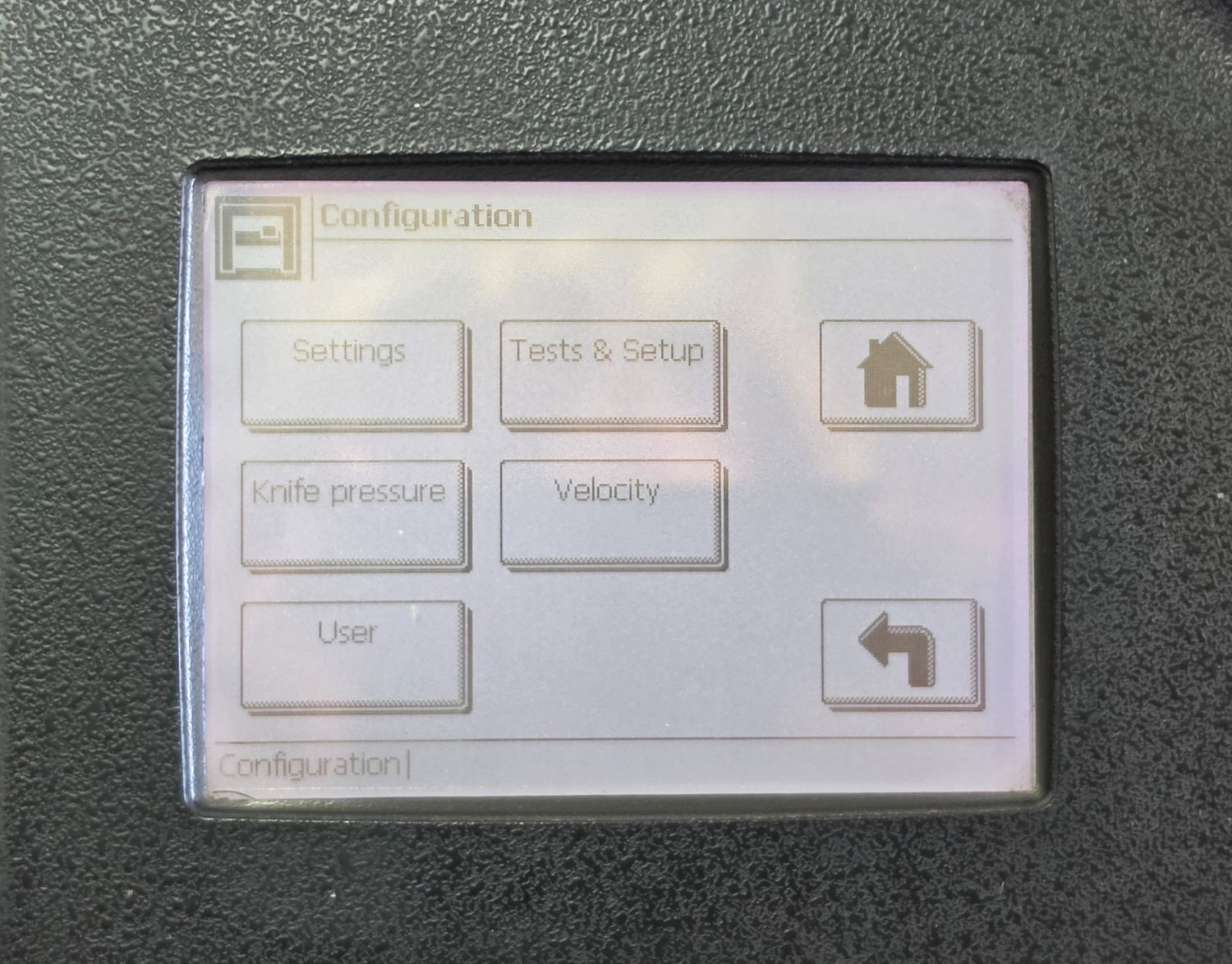

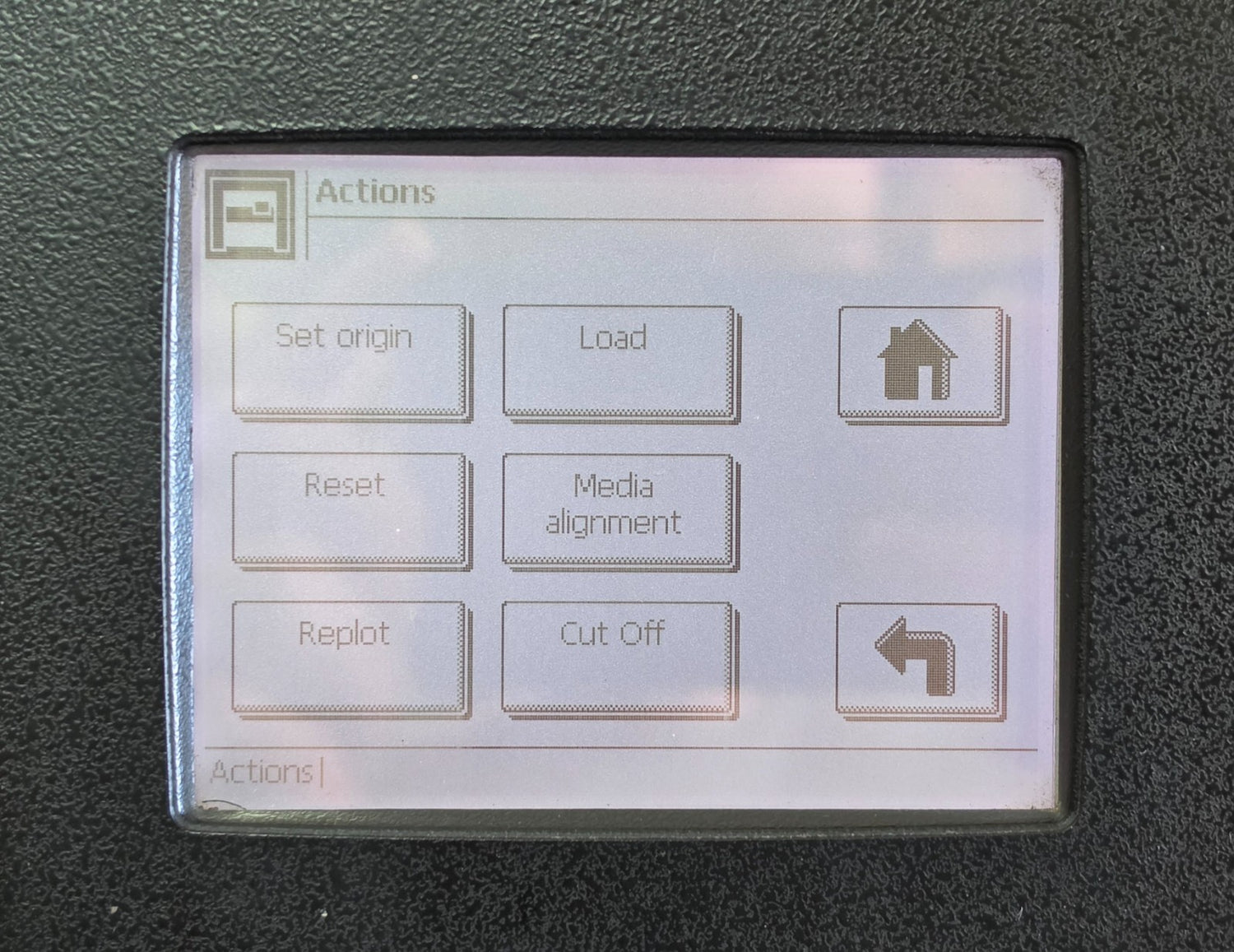

Interactive Touch Panel Interface
Features a high-resolution 320x240 dot matrix touch screen control board. The screen provides instant access to menu parameter adjustments, quick-access operational shortcuts, and user diagnostics. It allows operators to adjust cutting velocity, tool downforce, or switch between 8 user profiles on the fly.
Performance & Cutting Limits
- Maximum Media Width: 1680 mm (66.1 inches)
- Maximum Cutting Width: 1580 mm (62.2 inches) / Expandable up to 1650 mm in Oversized Mode
- Maximum Cutting Force: Up to 600 grams of electronically controlled downforce for heavy-duty substrates
- Cutting Velocity Speed: High-yield throughput running up to 141 cm/second (55.5 inches/second) diagonal
- Tracking Precision / Accuracy: Guaranteed tracking precision up to 12 metres (40 feet) on standard rolls
- Linear Accuracy Factor: Within 0.2% of total move distance or 0.25 mm, whichever value is greater
- Dynamic Drive Acceleration: High-torque servo drive capabilities handling up to 5.5 G diagonal acceleration
Automation & Control Systems
- Material Alignment System: Integrated OPOS X (Optical Positioning System) camera/sensor contour registration
- Perforation Profiling: True FlexCut Multi-Depth dual-pressure matrix (Alternating through-cut and bridge-link paths)
- Display Control Interface: Integrated 320x240 dot matrix touch screen control board with live configuration shortcuts
- Vector Calculation Processing: Onboard path algorithms including Vector Smoothing, Concatenation, and Object Sorting
- Measurement Configuration: Metric (mm) / Imperial (inches) user-selectable parameter environments
Electrical & Power

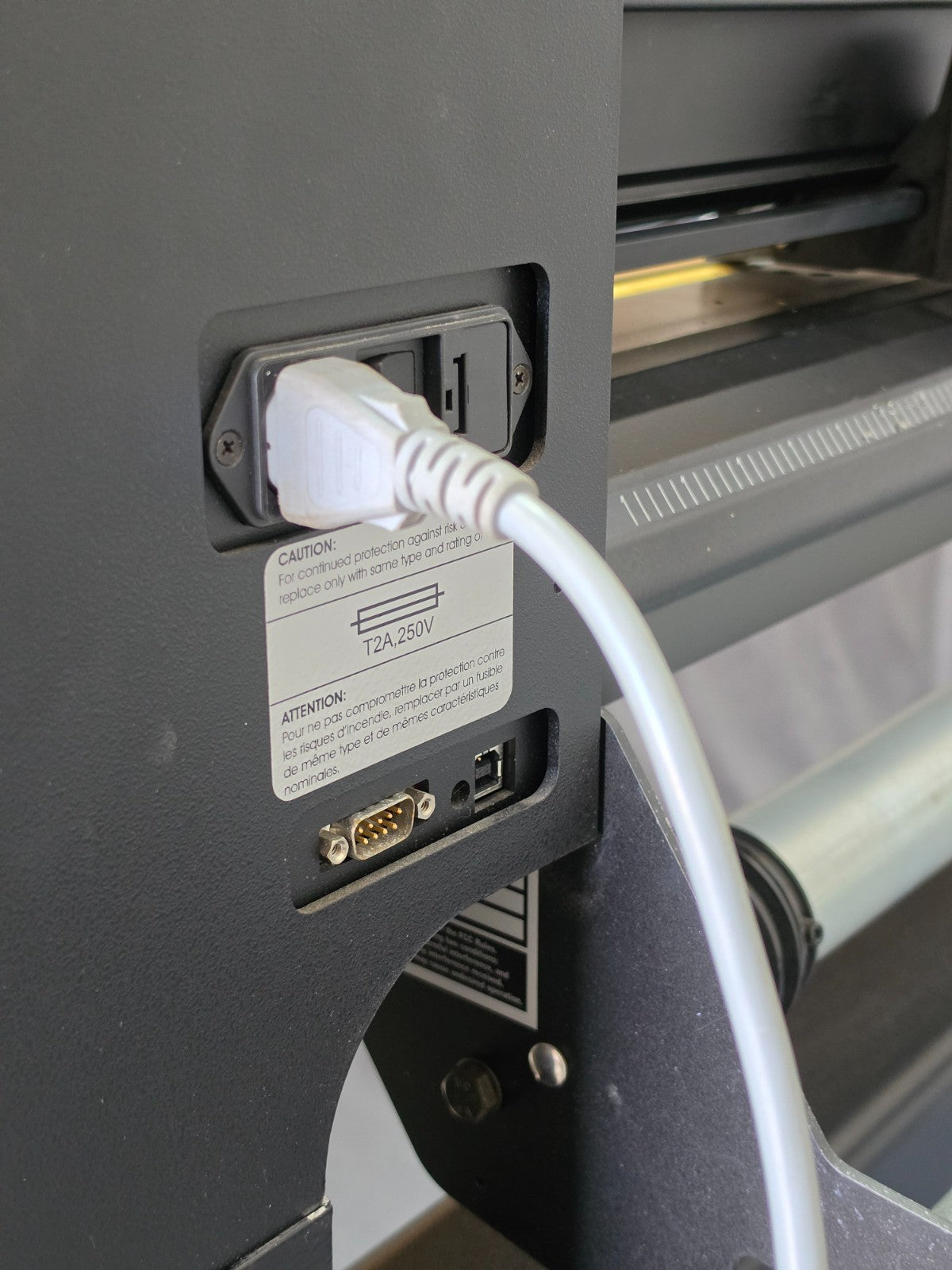

- Input Voltage Options: 100V AC to 240V AC Adaptive Range (50Hz / 60Hz Auto-Detecting Switching Power Core)
- Rated Power Consumption: 85W / 85 VA Maximum Peak draw under full industrial tracking loads

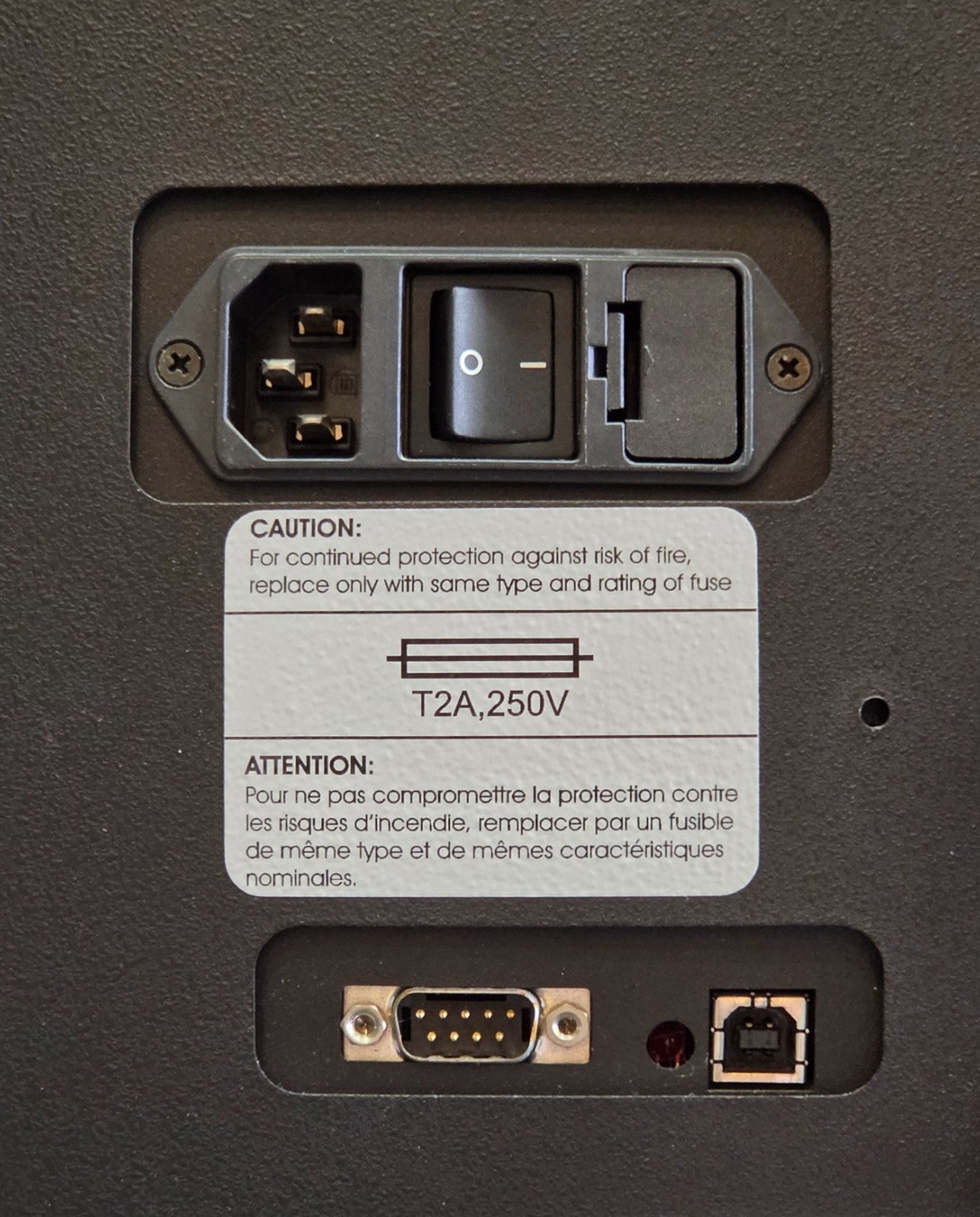

- Fusing System Protection: Single-stage circuit protection utilizing T2.0A, 250V SCHURTER SPT (or equivalent) fuses
- Drive Motor Array: Advanced dual servo-motor configuration
Physical Dimensions & Weight
- Machine Frame Width: 2250 mm (225 cm)
- Machine Frame Height: 1110 mm (111 cm)
- Machine Frame Depth: 680 mm (68 cm)
- Machine Total Weight: Approximately 71.0 kg (156.5 lbs)
Premium Component Materials
- Cutting Blade Composition: Industrial-Grade Solid Carbide Tangential Knife Blades / High-Durability Drag Knives
- Working Tables: Multi-Track Extruded Aluminium Bed / Self-Healing Polyurethane Cutting & Pouncing Strip Channels
- Internal Automation Electronics: Industrial Micro-Processor Core with Integrated Digital Servo Drives and Dedicated High-Speed USB & RS-232 Serial Interfaces
