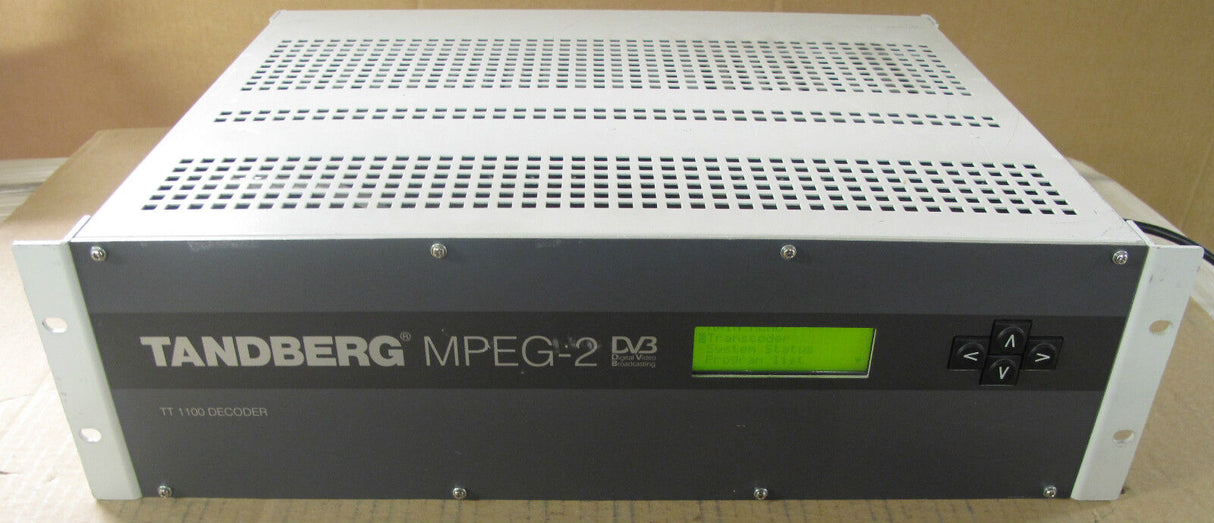

Tandberg TT1100 MPEG2 DVB Professional Multi-Channel Decoder MMI TV DEC 3500
Pre-owned
Tandberg TT1100 MPEG2 DVB Professional Multi-Channel Decoder MMI TV DEC 3500 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Model: TT1100
Type: Decoder
MPN: TT1100 MMI 1100 8300
Brand: Tandberg
Tandberg TT1100 MPEG2 DVB Professional Multi-Channel Decoder MMI Tuner/Demod 8300
In good condition and full working order
Includes:
1x MMI 1100 Module
1x Tuner/Demod 8300 16-30,5Mb Module
2x Demux Smartcard Modules
2x TV DEC 3500 Modules
1x 200-240v Kettle Power Supply PAL 50/60Hz
The TT1100 is the TANDBERG Multi-
Channel Decoder for operations of
analog and digital networks. The
product can receive and decode MPEG-
2 signals from a wide range of frontend
interfaces and Conditional Access
systems. Unlike other products the
TT1100 can process up to 7 services
simultaneously.
The TT1100 is designed for professional decoding and
monitoring applications such as Distribution, DVB-C, DVB-S
& DVB-T.
TECHNICAL SPECIFICATION
INPUT OPTIONS:
DVB ASI Connector: BNC (female)
DVB Parallel / SPI / LVDS Connector: 25-pin D-type
QPSK Demodulator Connector: F-type (female), 75 ohm
· Frequency range: 950 – 2150MHz
· Symbol rates: 2 – 30.5 Msym/s
· LNC power: 13V, 18V or off
· 22KHz tone
QAM Demodulator Connector: F-type (female), 75 ohm
· Channel Bandwidth: 8MHz
· Tuner frequency range: 50 – 860MHz
TANDBERG Television Proprietary G.703 interface: Connector: BNC (female)
· G.703 compliant PDH bit-rates: 2, 6, 8, 34, and 45Mbit/s
ATM/SDH input interfaces Connector: BNC (female)
· G.703 compliant PDH (AAL-1) bit-rates: 34 a nd 45 Mbit/s
· (AAL-5) 155Mbit/s electrical or optical SM/MM
· (AAL-1) 155Mbit/s electrical or optical SM/MM
OUTPUTS:
Analogue video output – Composite PAL/NTSC
Digital video output, CCIR Rec, 601 (option)
Analogue audio output
Digital audio output AES/EBU (option)
Asynchronous RS-232 data output with data rates
up to 38.4kbaud/s
DVB ASI output (option)
Connectors: 2x BNC (female)
Connectors: 2x BNC (female)
Connectors: Mini XLR, balanced (male)
Connectors: 2x BNC (female)
Connector: 9-pin D-type
Connector: BNC (female)
FEATURES:
Decoding of up to 6 TV channels (7 with ASI i/p)
Automatic selection of PAL/NTSC
Complete DVB PSI/SI processing
PSI/SI disable for non-DVB signal handling
ATSC service selection
Flexible VBI handling
· Transcoding of DVB teletext, reinserted in PAL
output (VBI)
· Wide Screen Signalling (WSS) and Video
Programming System (VPS)
· Test Signal (VITS) generation
· Closed Captioning (NTSC)
Teletext subtitling
Auto selection of language for audio, subtitling and
teletext
Flexible CA handling
· Conax
· Irdeto
· Mediaguard
· Nagravision
· Viaccess
· Fixed Key scrambling
· Signal protection
Software and hardware upgradable on site
Configurable alarm relay
TS Monitoring Module – (TT4005) option
CONTROL:
Front panel keypad and LCD
Ethernet SNMP Remote Control (option)
TANDBERG Device Controller (TDC) (option)
PHYSICAL AND POWER:
Input voltage: 184 – 264 Vac or 90 –132 VAC (strap selectable) or –48 VDC (optional)
Cooling: Convection
Dimensions: (W x D x H) 483 x 350 x 132.5mm (19” x 13.7” x 3RU)
ENVIRONMENTAL CONDITIONS:
Temperature: In use: 0°C to +45°C Storage: -20°C to +70°C
Relative humidity: 5 – 95%
COMPLIANCE:
CE marked in accordance with Low Voltage Directive (LVD) 73/23/EEC and EMC directive 89/336/EEC
